vl::FBOAbstractTextureAttachment Class Reference

Base class for all the framebuffer texture attachments (see also FramebufferObject). More...

#include <FramebufferObject.hpp>

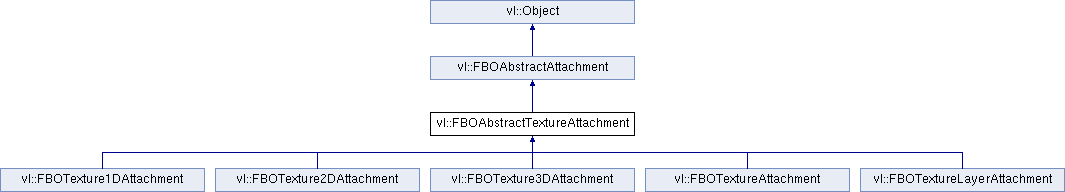

+ Inheritance diagram for vl::FBOAbstractTextureAttachment:

Public Member Functions

 FBOAbstractTextureAttachment (Texture *texture, int mipmap_level)
 Constructor. More...

void setTexture (Texture *texture)
 The texture bound to this attachment. More...

Texturetexture ()
 The texture bound to this attachment. More...

const Texturetexture () const
 The texture bound to this attachment. More...

void setMipmapLevel (int mipmap_level)
 The mipmap level of the texture to attach. More...

int mipmapLevel () const
 The mipmap level of the texture to attach. More...

- Public Member Functions inherited from vl::FBOAbstractAttachment
 FBOAbstractAttachment ()
 Constructor. More...

virtual ~FBOAbstractAttachment ()
 Destructor. More...

virtual void unbindFromAllFBO ()
 Removes the FBO attachment from all bound FBO render targets. More...

const std::set< ref< FramebufferObject > > & fboFramebuffers () const
 Returns an std::set containing the FramebufferObject that use this FBO attachment. More...

- Public Member Functions inherited from vl::Object
 Object ()
 Constructor. More...

 Object (const Object &other)
 Copy constructor: copies the name, ref count mutex and user data. More...

Objectoperator= (const Object &other)
 Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string & objectName () const
 The name of the object, by default set to the object's class name. More...

void setObjectName (const char *name)
 The name of the object, by default set to the object's class name in debug builds. More...

void setObjectName (const std::string &name)
 The name of the object, by default set to the object's class name in debug builds. More...

void setRefCountMutex (IMutex *mutex)
 The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutexrefCountMutex ()
 The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutexrefCountMutex () const
 The mutex used to protect the reference counting of an Object across multiple threads. More...

int referenceCount () const
 Returns the number of references of an object. More...

void incReference () const
 Increments the reference count of an object. More...

void decReference ()
 Decrements the reference count of an object and deletes it if both automaticDelete() is true the count reaches 0. More...

void setAutomaticDelete (bool autodel_on)
 If set to true the Object is deleted when its reference count reaches 0. More...

bool automaticDelete () const
 If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T * as ()
 Casts an Object to the specified class. More...

template<class T >
const T * as () const
 Casts an Object to the specified class. More...


Protected Attributes

ref< TexturemTexture

int mMipmapLevel

- Protected Attributes inherited from vl::FBOAbstractAttachment
std::set< ref< FramebufferObject > > mFramebufferObjects

- Protected Attributes inherited from vl::Object
std::string mObjectName

IMutexmRefCountMutex

int mReferenceCount

bool mAutomaticDelete


Additional Inherited Members

- Protected Member Functions inherited from vl::FBOAbstractAttachment
virtual void bindAttachment (FramebufferObject *fbo, EAttachmentPoint attach_point)=0

- Protected Member Functions inherited from vl::Object
virtual ~Object ()


Detailed Description

Base class for all the framebuffer texture attachments (see also FramebufferObject).

Definition at line 308 of file FramebufferObject.hpp.

Constructor & Destructor Documentation

◆ FBOAbstractTextureAttachment()

vl::FBOAbstractTextureAttachment::FBOAbstractTextureAttachment ( Texture texture,
int  mipmap_level
)
inline

Constructor.

Definition at line 314 of file FramebufferObject.hpp.

Member Function Documentation

◆ mipmapLevel()

int vl::FBOAbstractTextureAttachment::mipmapLevel ( ) const
inline

The mipmap level of the texture to attach.

Definition at line 332 of file FramebufferObject.hpp.

◆ setMipmapLevel()

void vl::FBOAbstractTextureAttachment::setMipmapLevel ( int  mipmap_level)
inline

The mipmap level of the texture to attach.

Definition at line 329 of file FramebufferObject.hpp.

◆ setTexture()

void vl::FBOAbstractTextureAttachment::setTexture ( Texture texture)
inline

The texture bound to this attachment.

Definition at line 320 of file FramebufferObject.hpp.

◆ texture() [1/2]

Texture* vl::FBOAbstractTextureAttachment::texture ( )
inline

The texture bound to this attachment.

Definition at line 323 of file FramebufferObject.hpp.

◆ texture() [2/2]

const Texture* vl::FBOAbstractTextureAttachment::texture ( ) const
inline

The texture bound to this attachment.

Definition at line 326 of file FramebufferObject.hpp.

Member Data Documentation

◆ mMipmapLevel

int vl::FBOAbstractTextureAttachment::mMipmapLevel
protected

Definition at line 336 of file FramebufferObject.hpp.

◆ mTexture

ref<Texture> vl::FBOAbstractTextureAttachment::mTexture
protected

Definition at line 335 of file FramebufferObject.hpp.


The documentation for this class was generated from the following file:
