An abstract class that represents all the objects that can be rendered. More...

#include <Renderable.hpp>

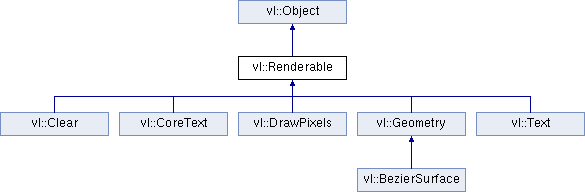

Inheritance diagram for vl::Renderable:

Public Member Functions
	Renderable ()
	Constructor. More...

virtual	~Renderable ()
	Destructor. More...

void	render (const Actor actor, const Shader shader, const Camera camera, OpenGLContext gl_context)
	Renders the Renderable and if necessary compiles the display list and updates the BufferObjects. More...

void	computeBounds ()
	Recomputes the bounding box and bounding sphere of a Renderable. More...

long long	boundsUpdateTick () const
	Returns the bounds-update-tick which is a counter incremented every time the bounding box or bounding sphere is updated. More...

void	setBoundsDirty (bool dirty)
	Marks the bounding box and bounding sphere as dirty in order to be recomputed at the next rendering. More...

bool	boundsDirty () const
	Returns whether the bounding sphere or bounding box are "dirty", that is, meant to be recomputed. More...

void	setBoundingBox (const AABB &aabb)
	Sets the bounding box of a Renderable. More...

void	setBoundingSphere (const Sphere &sphere)
	Sets the bounding sphere of a Renderable. More...

const AABB &	boundingBox () const
	Returns the bounding box of a Renderable without recomputing the bounds if dirty. More...

const Sphere &	boundingSphere () const
	Returns the bounding sphere of a Renderable without recomputing the bounds if dirty. More...

const AABB &	boundingBox ()
	Returns the bounding box of a Renderable recomputing the bounds if dirty. More...

const Sphere &	boundingSphere ()
	Returns the bounding sphere of a Renderable recomputing the bounds if dirty. More...

unsigned int	displayList () const
	Returns the display list associated to a Renderable or 0 (zero) if no display list is associated. More...

void	setDisplayList (unsigned int disp_list)
	Manually assciates a display list to a Renderable (to be used with care). More...

bool	isDisplayListEnabled () const
	Returns `true` if display lists are enabled for a Renderable (disabled by default). More...

void	setDisplayListEnabled (bool enabled)
	Enable/disable display lists (disabled by default). More...

bool	displayListDirty () const
	Whether the display list associated to a Renderable should be recompiled at the next rendering. More...

void	setDisplayListDirty (bool dirty)
	Whether the display list associated to a Renderable should be recompiled at the next rendering. More...

bool	isBufferObjectEnabled () const
	Returns `true` if BufferObject (vertex buffer object) are enabled for a Renderable (enabled by default). More...

void	setBufferObjectEnabled (bool enabled)
	Enable/disable BufferObject (vertex buffer object) (enabled by default). More...

bool	isBufferObjectDirty () const
	Whether BufferObjects associated to a Renderable should be recomputed on the next rendering. More...

void	setBufferObjectDirty (bool dirty=true)
	Whether BufferObjects associated to a Renderable should be recomputed on the next rendering. More...

virtual void	updateDirtyBufferObject (EBufferObjectUpdateMode)=0
	Uploads the data stored in the local buffers on the GPU memory. More...

virtual void	deleteBufferObject ()=0
	Destroys the BufferObject (vertex buffer objects) associated to this a Renderable. More...

void	deleteDisplayList ()
	Deletes the display list currently associated to a Renderable. More...

Public Member Functions inherited from vl::Object
	Object ()
	Constructor. More...

	Object (const Object &other)
	Copy constructor: copies the name, ref count mutex and user data. More...

Object &	operator= (const Object &other)
	Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string &	objectName () const
	The name of the object, by default set to the object's class name. More...

void	setObjectName (const char *name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setObjectName (const std::string &name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setRefCountMutex (IMutex *mutex)
	The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutex *	refCountMutex ()
	The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutex *	refCountMutex () const
	The mutex used to protect the reference counting of an Object across multiple threads. More...

int	referenceCount () const
	Returns the number of references of an object. More...

void	incReference () const
	Increments the reference count of an object. More...

void	decReference ()
	Decrements the reference count of an object and deletes it if both automaticDelete() is `true` the count reaches 0. More...

void	setAutomaticDelete (bool autodel_on)
	If set to true the Object is deleted when its reference count reaches 0. More...

bool	automaticDelete () const
	If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T *	as ()
	Casts an Object to the specified class. More...

template<class T >
const T *	as () const
	Casts an Object to the specified class. More...

Protected Member Functions
Renderable &	operator= (const Renderable &)=default
	operator= More...

virtual void	computeBounds_Implementation ()=0

virtual void	render_Implementation (const Actor actor, const Shader shader, const Camera camera, OpenGLContext gl_context) const =0

Protected Member Functions inherited from vl::Object
virtual	~Object ()

Additional Inherited Members
Protected Attributes inherited from vl::Object
std::string	mObjectName

IMutex *	mRefCountMutex

int	mReferenceCount

bool	mAutomaticDelete

Detailed Description

An abstract class that represents all the objects that can be rendered.

In order to render a Renderable you have to bind it to an Actor. An Actor glues together a Renderable, an Effect and eventually a Transform. Note that the same Renderable can be associated to more than one Actor.

See also: Actor, Effect, Shader, Transform, Geometry

Definition at line 58 of file Renderable.hpp.

Constructor & Destructor Documentation

◆ Renderable()

vl::Renderable::Renderable ( )

inline

Constructor.

Definition at line 73 of file Renderable.hpp.

◆ ~Renderable()

virtual vl::Renderable::~Renderable ( )

inlinevirtual

Destructor.

Definition at line 77 of file Renderable.hpp.

Member Function Documentation

◆ boundingBox() [1/2]

const AABB& vl::Renderable::boundingBox ( ) const

inline

Returns the bounding box of a Renderable without recomputing the bounds if dirty.

Definition at line 155 of file Renderable.hpp.

References vl::Log::warning().

Referenced by vl::Actor::computeBounds(), vl::DistanceLODEvaluator::evaluate(), vl::PixelLODEvaluator::evaluate(), vlX::VLXClassWrapper_Renderable::exportRenderable(), vl::makeTeapot(), vl::OcclusionCullRenderer::render_pass2(), and vl::RenderQueue::sort().

◆ boundingBox() [2/2]

const AABB& vl::Renderable::boundingBox ( )

inline

Returns the bounding box of a Renderable recomputing the bounds if dirty.

Definition at line 171 of file Renderable.hpp.

◆ boundingSphere() [1/2]

const Sphere& vl::Renderable::boundingSphere ( ) const

inline

Returns the bounding sphere of a Renderable without recomputing the bounds if dirty.

Definition at line 163 of file Renderable.hpp.

References vl::Log::warning().

Referenced by vlX::VLXClassWrapper_Renderable::exportRenderable().

◆ boundingSphere() [2/2]

const Sphere& vl::Renderable::boundingSphere ( )

inline

Returns the bounding sphere of a Renderable recomputing the bounds if dirty.

Definition at line 179 of file Renderable.hpp.

◆ boundsDirty()

bool vl::Renderable::boundsDirty ( ) const

inline

Returns whether the bounding sphere or bounding box are "dirty", that is, meant to be recomputed.

Definition at line 130 of file Renderable.hpp.

Referenced by vl::Actor::boundsDirty(), vl::Actor::computeBounds(), and vlX::VLXClassWrapper_Renderable::exportRenderable().

◆ boundsUpdateTick()

long long vl::Renderable::boundsUpdateTick ( ) const

inline

Returns the bounds-update-tick which is a counter incremented every time the bounding box or bounding sphere is updated.

Definition at line 124 of file Renderable.hpp.

Referenced by vl::Actor::boundsDirty(), and vl::Actor::computeBounds().

◆ computeBounds()

void vl::Renderable::computeBounds ( )

inline

Recomputes the bounding box and bounding sphere of a Renderable.

Definition at line 121 of file Renderable.hpp.

◆ computeBounds_Implementation()

virtual void vl::Renderable::computeBounds_Implementation ( )

protectedpure virtual

Implemented in vl::Geometry, vl::CoreText, vl::DrawPixels, vl::Text, and vl::Clear.

◆ deleteBufferObject()

virtual void vl::Renderable::deleteBufferObject ( )

pure virtual

Destroys the BufferObject (vertex buffer objects) associated to this a Renderable.

Note: This function does not touch the local (non GPU) data stored in the buffers associated to the vertex attributes and DrawCall.

Implemented in vl::DrawPixels, vl::CoreText, vl::Text, vl::Geometry, and vl::Clear.

◆ deleteDisplayList()

void vl::Renderable::deleteDisplayList ( )

inline

Deletes the display list currently associated to a Renderable.

Definition at line 225 of file Renderable.hpp.

◆ displayList()

unsigned int vl::Renderable::displayList ( ) const

inline

Returns the display list associated to a Renderable or 0 (zero) if no display list is associated.

Definition at line 187 of file Renderable.hpp.

◆ displayListDirty()

bool vl::Renderable::displayListDirty ( ) const

inline

Whether the display list associated to a Renderable should be recompiled at the next rendering.

Definition at line 199 of file Renderable.hpp.

◆ isBufferObjectDirty()

bool vl::Renderable::isBufferObjectDirty ( ) const

inline

Whether BufferObjects associated to a Renderable should be recomputed on the next rendering.

Definition at line 211 of file Renderable.hpp.

◆ isBufferObjectEnabled()

bool vl::Renderable::isBufferObjectEnabled ( ) const

inline

Returns true if BufferObject (vertex buffer object) are enabled for a Renderable (enabled by default).

Definition at line 205 of file Renderable.hpp.

Referenced by vlX::VLXClassWrapper_Renderable::exportRenderable(), and vl::Geometry::render_Implementation().

◆ isDisplayListEnabled()

bool vl::Renderable::isDisplayListEnabled ( ) const

inline

Returns true if display lists are enabled for a Renderable (disabled by default).

Definition at line 193 of file Renderable.hpp.

Referenced by vlX::VLXClassWrapper_Renderable::exportRenderable(), and vl::Geometry::render_Implementation().

◆ operator=()

Renderable& vl::Renderable::operator= ( const Renderable & )

protecteddefault

operator=

◆ render()

void vl::Renderable::render	(	const Actor *	actor,
		const Shader *	shader,
		const Camera *	camera,
		OpenGLContext *	gl_context
	)

inline

Renders the Renderable and if necessary compiles the display list and updates the BufferObjects.

Definition at line 80 of file Renderable.hpp.

References vl::BUM_KeepRamBuffer, VL_CHECK, and VL_CHECK_OGL.

Referenced by vl::Renderer::renderRaw(), and vl::EdgeRenderer::renderSolids().

◆ render_Implementation()

virtual void vl::Renderable::render_Implementation	(	const Actor *	actor,
		const Shader *	shader,
		const Camera *	camera,
		OpenGLContext *	gl_context
	)		const

protectedpure virtual

Implemented in vl::Geometry, vl::CoreText, vl::DrawPixels, vl::Text, and vl::Clear.

◆ setBoundingBox()

void vl::Renderable::setBoundingBox ( const AABB & aabb )

inline

Sets the bounding box of a Renderable.

Definition at line 133 of file Renderable.hpp.

Referenced by vl::Geometry::computeBounds_Implementation(), vlX::VLXClassWrapper_Renderable::importRenderable(), and vl::Terrain::init().

◆ setBoundingSphere()

void vl::Renderable::setBoundingSphere ( const Sphere & sphere )

inline

Sets the bounding sphere of a Renderable.

Definition at line 144 of file Renderable.hpp.

Referenced by vl::Geometry::computeBounds_Implementation(), vlX::VLXClassWrapper_Renderable::importRenderable(), and vl::Terrain::init().

◆ setBoundsDirty()

void vl::Renderable::setBoundsDirty ( bool dirty )

inline

Marks the bounding box and bounding sphere as dirty in order to be recomputed at the next rendering.

Definition at line 127 of file Renderable.hpp.

Referenced by vl::TrackballManipulator::adjustView(), and vl::Terrain::init().

◆ setBufferObjectDirty()

void vl::Renderable::setBufferObjectDirty ( bool dirty = true )

inline

Whether BufferObjects associated to a Renderable should be recomputed on the next rendering.

Definition at line 214 of file Renderable.hpp.

Referenced by vl::Geometry::clearArrays(), and vl::DepthSortCallback::onActorRenderStarted().

◆ setBufferObjectEnabled()

void vl::Renderable::setBufferObjectEnabled ( bool enabled )

inline

Enable/disable BufferObject (vertex buffer object) (enabled by default).

Definition at line 208 of file Renderable.hpp.

Referenced by vl::EdgeExtractor::generateEdgeGeometry(), vlX::VLXClassWrapper_Renderable::importRenderable(), and vl::VolumePlot::setupLabels().

◆ setDisplayList()

void vl::Renderable::setDisplayList ( unsigned int disp_list )

inline

Manually assciates a display list to a Renderable (to be used with care).

Definition at line 190 of file Renderable.hpp.

◆ setDisplayListDirty()

void vl::Renderable::setDisplayListDirty ( bool dirty )

inline

Whether the display list associated to a Renderable should be recompiled at the next rendering.

Definition at line 202 of file Renderable.hpp.

Referenced by vl::DepthSortCallback::onActorRenderStarted().

◆ setDisplayListEnabled()

void vl::Renderable::setDisplayListEnabled ( bool enabled )

inline

Enable/disable display lists (disabled by default).

Definition at line 196 of file Renderable.hpp.

Referenced by vlX::VLXClassWrapper_Renderable::importRenderable(), and vl::VolumePlot::setupLabels().

◆ updateDirtyBufferObject()

virtual void vl::Renderable::updateDirtyBufferObject ( EBufferObjectUpdateMode )

pure virtual

Uploads the data stored in the local buffers on the GPU memory.

If 'discard_local_data' is set to true the memory used by the local buffers is released.

Implemented in vl::DrawPixels, vl::CoreText, vl::Text, vl::Geometry, and vl::Clear.

The documentation for this class was generated from the following file:

C:/git/VL/src/vlGraphics/Renderable.hpp

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Renderable()

◆ ~Renderable()

Member Function Documentation

◆ boundingBox() [1/2]

◆ boundingBox() [2/2]

◆ boundingSphere() [1/2]

◆ boundingSphere() [2/2]

◆ boundsDirty()

◆ boundsUpdateTick()

◆ computeBounds()

◆ computeBounds_Implementation()

◆ deleteBufferObject()

◆ deleteDisplayList()

◆ displayList()

◆ displayListDirty()

◆ isBufferObjectDirty()

◆ isBufferObjectEnabled()

◆ isDisplayListEnabled()

◆ operator=()

◆ render()

◆ render_Implementation()

◆ setBoundingBox()

◆ setBoundingSphere()

◆ setBoundsDirty()

◆ setBufferObjectDirty()

◆ setBufferObjectEnabled()

◆ setDisplayList()

◆ setDisplayListDirty()

◆ setDisplayListEnabled()

◆ updateDirtyBufferObject()
