The ArrayAbstract class defines an abstract interface to conveniently manipulate data stored in a BufferObject. More...

#include <Array.hpp>

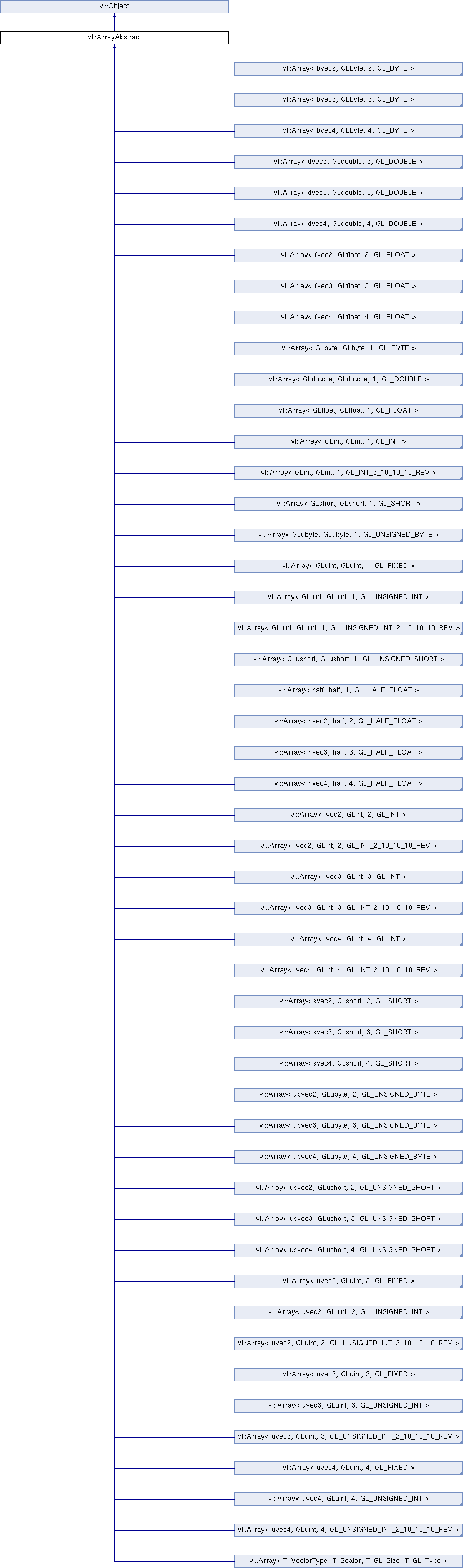

Inheritance diagram for vl::ArrayAbstract:

Public Member Functions
	ArrayAbstract ()
	Default constructor. More...

	ArrayAbstract (const ArrayAbstract &other)
	Copies only the local data and not the BufferObject related fields. More...

void	operator= (const ArrayAbstract &other)
	Copies only the local data and not the BufferObject related fields. More...

virtual ref< ArrayAbstract >	clone () const =0

const BufferObject *	bufferObject () const

BufferObject *	bufferObject ()

void	clear ()

const unsigned char *	ptr () const
	Returns the pointer to the first element of the local buffer. Equivalent to bufferObject()->ptr() More...

unsigned char *	ptr ()
	Returns the pointer to the first element of the local buffer. Equivalent to bufferObject()->ptr() More...

virtual size_t	bytesUsed () const
	Returns the amount of memory in bytes used by an array. Equivalent to bufferObject()->bytesUsed(). More...

virtual size_t	glSize () const =0
	Returns the number of scalar components for the array, ie 3 for ArrayFloat3, 1 for ArrayUInt1 etc. More...

virtual GLenum	glType () const =0
	Returns the OpenGL type for the array, ie GL_FLOAT for ArrayFloat3, GL_UNSIGNED_INT for ArrayUInt1 etc. More...

virtual size_t	size () const =0
	Returns the number of elements of an array. More...

virtual Sphere	computeBoundingSphere () const =0
	Computes the bounding sphere enclosing the vectors contained in the buffer. More...

virtual AABB	computeBoundingBox () const =0
	Computes the axis aligned bounding box enclosing the vectors contained in the buffer. More...

virtual void	transform (const mat4 &m)=0
	Transforms the vectors contained in the buffer. More...

virtual void	normalize ()=0
	Normalizes the vectors contained in the buffer. More...

virtual vec4	getAsVec4 (size_t vector_index) const =0
	Returns a vector from the buffer as a `vec4` value. More...

virtual vec3	getAsVec3 (size_t vector_index) const =0
	Returns a vector from the buffer as a `vec3` value. More...

virtual vec2	getAsVec2 (size_t vector_index) const =0
	Returns a vector from the buffer as a `vec2` value. More...

virtual int	compare (int a, int b) const =0
	Compares two vectors. More...

bool	isBufferObjectDirty () const
	Wether the BufferObject should be updated or not using the local storage. More...

void	setBufferObjectDirty (bool dirty=true)
	Wether the BufferObject should be updated or not using the local storage. More...

EBufferObjectUsage	usage () const
	BU_STATIC_DRAW by default. More...

void	setUsage (EBufferObjectUsage usage)
	BU_STATIC_DRAW by default. More...

void	updateBufferObject (EBufferObjectUpdateMode mode=BUM_KeepRamBuffer)
	Updates the BufferObject. More...

void	setNormalize (bool normalize)
	The 'normalized' parameter as used with glVertexAttribPointer() More...

bool	normalize () const
	The 'normalized' parameter as used with glVertexAttribPointer() More...

void	setInterpretation (EVertexAttribInterpretation behavior)
	How the data is interpreted by the OpenGL, see EVertexAttribInterpretation. More...

EVertexAttribInterpretation	interpretation () const
	How the data is interpreted by the OpenGL, see EVertexAttribInterpretation. More...

Public Member Functions inherited from vl::Object
	Object ()
	Constructor. More...

	Object (const Object &other)
	Copy constructor: copies the name, ref count mutex and user data. More...

Object &	operator= (const Object &other)
	Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string &	objectName () const
	The name of the object, by default set to the object's class name. More...

void	setObjectName (const char *name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setObjectName (const std::string &name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setRefCountMutex (IMutex *mutex)
	The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutex *	refCountMutex ()
	The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutex *	refCountMutex () const
	The mutex used to protect the reference counting of an Object across multiple threads. More...

int	referenceCount () const
	Returns the number of references of an object. More...

void	incReference () const
	Increments the reference count of an object. More...

void	decReference ()
	Decrements the reference count of an object and deletes it if both automaticDelete() is `true` the count reaches 0. More...

void	setAutomaticDelete (bool autodel_on)
	If set to true the Object is deleted when its reference count reaches 0. More...

bool	automaticDelete () const
	If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T *	as ()
	Casts an Object to the specified class. More...

template<class T >
const T *	as () const
	Casts an Object to the specified class. More...

Protected Attributes
ref< BufferObject >	mBufferObject

EBufferObjectUsage	mBufferObjectUsage

bool	mBufferObjectDirty

EVertexAttribInterpretation	mInterpretation

bool	mNormalize

Protected Attributes inherited from vl::Object
std::string	mObjectName

IMutex *	mRefCountMutex

int	mReferenceCount

bool	mAutomaticDelete

Additional Inherited Members
Protected Member Functions inherited from vl::Object
virtual	~Object ()

Detailed Description

The ArrayAbstract class defines an abstract interface to conveniently manipulate data stored in a BufferObject.

See also

Definition at line 58 of file Array.hpp.

Constructor & Destructor Documentation

◆ ArrayAbstract() [1/2]

vl::ArrayAbstract::ArrayAbstract ( )

inline

Default constructor.

Definition at line 64 of file Array.hpp.

References vl::BU_STATIC_DRAW, mBufferObject, mBufferObjectDirty, mBufferObjectUsage, mInterpretation, mNormalize, and vl::VAI_NORMAL.

◆ ArrayAbstract() [2/2]

vl::ArrayAbstract::ArrayAbstract ( const ArrayAbstract & other )

inline

Copies only the local data and not the BufferObject related fields.

Definition at line 75 of file Array.hpp.

References vl::BU_STATIC_DRAW, mBufferObject, mBufferObjectDirty, mBufferObjectUsage, mInterpretation, mNormalize, operator=(), and vl::VAI_NORMAL.

Member Function Documentation

◆ bufferObject() [1/2]

const BufferObject* vl::ArrayAbstract::bufferObject ( ) const

inline

Definition at line 97 of file Array.hpp.

References mBufferObject.

Referenced by vl::OpenGLContext::bindVAS_Attribs(), vl::OpenGLContext::bindVAS_Fixed(), bytesUsed(), clear(), vl::Array< bvec2, GLbyte, 2, GL_BYTE >::clear(), vl::SlicedVolume::onActorRenderStarted(), operator=(), ptr(), vl::Array< bvec2, GLbyte, 2, GL_BYTE >::resize(), vl::Array< bvec2, GLbyte, 2, GL_BYTE >::sizeBufferObject(), and updateBufferObject().

◆ bufferObject() [2/2]

BufferObject* vl::ArrayAbstract::bufferObject ( )

inline

Definition at line 98 of file Array.hpp.

References mBufferObject.

◆ bytesUsed()

virtual size_t vl::ArrayAbstract::bytesUsed ( ) const

inlinevirtual

Returns the amount of memory in bytes used by an array. Equivalent to bufferObject()->bytesUsed().

Definition at line 109 of file Array.hpp.

References bufferObject(), vl::Buffer::bytesUsed(), compare(), computeBoundingBox(), computeBoundingSphere(), getAsVec2(), getAsVec3(), getAsVec4(), glSize(), glType(), normalize(), size(), and transform().

Referenced by vl::Array< bvec2, GLbyte, 2, GL_BYTE >::clone(), vl::load3DS(), operator=(), and vl::Array< bvec2, GLbyte, 2, GL_BYTE >::size().

◆ clear()

void vl::ArrayAbstract::clear ( )

inline

Definition at line 100 of file Array.hpp.

References bufferObject(), and vl::Buffer::clear().

◆ clone()

virtual ref<ArrayAbstract> vl::ArrayAbstract::clone ( ) const

pure virtual

Implemented in vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >, vl::Array< uvec4, GLuint, 4, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_FIXED >, vl::Array< ubvec4, GLubyte, 4, GL_UNSIGNED_BYTE >, vl::Array< ubvec2, GLubyte, 2, GL_UNSIGNED_BYTE >, vl::Array< svec4, GLshort, 4, GL_SHORT >, vl::Array< svec2, GLshort, 2, GL_SHORT >, vl::Array< GLshort, GLshort, 1, GL_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT >, vl::Array< ivec3, GLint, 3, GL_INT_2_10_10_10_REV >, vl::Array< GLuint, GLuint, 1, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT >, vl::Array< hvec3, half, 3, GL_HALF_FLOAT >, vl::Array< hvec2, half, 2, GL_HALF_FLOAT >, vl::Array< uvec3, GLuint, 3, GL_FIXED >, vl::Array< dvec4, GLdouble, 4, GL_DOUBLE >, vl::Array< ivec3, GLint, 3, GL_INT >, vl::Array< ivec2, GLint, 2, GL_INT >, vl::Array< GLbyte, GLbyte, 1, GL_BYTE >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec3, GLdouble, 3, GL_DOUBLE >, vl::Array< GLdouble, GLdouble, 1, GL_DOUBLE >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT >, vl::Array< GLint, GLint, 1, GL_INT >, vl::Array< ubvec3, GLubyte, 3, GL_UNSIGNED_BYTE >, vl::Array< ivec4, GLint, 4, GL_INT >, vl::Array< usvec4, GLushort, 4, GL_UNSIGNED_SHORT >, vl::Array< usvec2, GLushort, 2, GL_UNSIGNED_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLubyte, GLubyte, 1, GL_UNSIGNED_BYTE >, vl::Array< usvec3, GLushort, 3, GL_UNSIGNED_SHORT >, vl::Array< half, half, 1, GL_HALF_FLOAT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec2, GLdouble, 2, GL_DOUBLE >, vl::Array< fvec3, GLfloat, 3, GL_FLOAT >, vl::Array< hvec4, half, 4, GL_HALF_FLOAT >, vl::Array< ivec4, GLint, 4, GL_INT_2_10_10_10_REV >, vl::Array< ivec2, GLint, 2, GL_INT_2_10_10_10_REV >, vl::Array< GLushort, GLushort, 1, GL_UNSIGNED_SHORT >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLfloat, GLfloat, 1, GL_FLOAT >, vl::Array< GLint, GLint, 1, GL_INT_2_10_10_10_REV >, vl::Array< fvec4, GLfloat, 4, GL_FLOAT >, vl::Array< fvec2, GLfloat, 2, GL_FLOAT >, vl::Array< svec3, GLshort, 3, GL_SHORT >, vl::Array< bvec4, GLbyte, 4, GL_BYTE >, vl::Array< bvec3, GLbyte, 3, GL_BYTE >, and vl::Array< bvec2, GLbyte, 2, GL_BYTE >.

Referenced by operator=().

◆ compare()

virtual int vl::ArrayAbstract::compare	(	int	a,
		int	b
	)		const

pure virtual

Compares two vectors.

Implemented in vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >, vl::Array< uvec4, GLuint, 4, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_FIXED >, vl::Array< ubvec4, GLubyte, 4, GL_UNSIGNED_BYTE >, vl::Array< ubvec2, GLubyte, 2, GL_UNSIGNED_BYTE >, vl::Array< svec4, GLshort, 4, GL_SHORT >, vl::Array< svec2, GLshort, 2, GL_SHORT >, vl::Array< GLshort, GLshort, 1, GL_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT >, vl::Array< ivec3, GLint, 3, GL_INT_2_10_10_10_REV >, vl::Array< GLuint, GLuint, 1, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT >, vl::Array< hvec3, half, 3, GL_HALF_FLOAT >, vl::Array< hvec2, half, 2, GL_HALF_FLOAT >, vl::Array< uvec3, GLuint, 3, GL_FIXED >, vl::Array< dvec4, GLdouble, 4, GL_DOUBLE >, vl::Array< ivec3, GLint, 3, GL_INT >, vl::Array< ivec2, GLint, 2, GL_INT >, vl::Array< GLbyte, GLbyte, 1, GL_BYTE >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec3, GLdouble, 3, GL_DOUBLE >, vl::Array< GLdouble, GLdouble, 1, GL_DOUBLE >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT >, vl::Array< GLint, GLint, 1, GL_INT >, vl::Array< ubvec3, GLubyte, 3, GL_UNSIGNED_BYTE >, vl::Array< ivec4, GLint, 4, GL_INT >, vl::Array< usvec4, GLushort, 4, GL_UNSIGNED_SHORT >, vl::Array< usvec2, GLushort, 2, GL_UNSIGNED_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLubyte, GLubyte, 1, GL_UNSIGNED_BYTE >, vl::Array< usvec3, GLushort, 3, GL_UNSIGNED_SHORT >, vl::Array< half, half, 1, GL_HALF_FLOAT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec2, GLdouble, 2, GL_DOUBLE >, vl::Array< fvec3, GLfloat, 3, GL_FLOAT >, vl::Array< hvec4, half, 4, GL_HALF_FLOAT >, vl::Array< ivec4, GLint, 4, GL_INT_2_10_10_10_REV >, vl::Array< ivec2, GLint, 2, GL_INT_2_10_10_10_REV >, vl::Array< GLushort, GLushort, 1, GL_UNSIGNED_SHORT >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLfloat, GLfloat, 1, GL_FLOAT >, vl::Array< GLint, GLint, 1, GL_INT_2_10_10_10_REV >, vl::Array< fvec4, GLfloat, 4, GL_FLOAT >, vl::Array< fvec2, GLfloat, 2, GL_FLOAT >, vl::Array< svec3, GLshort, 3, GL_SHORT >, vl::Array< bvec4, GLbyte, 4, GL_BYTE >, vl::Array< bvec3, GLbyte, 3, GL_BYTE >, and vl::Array< bvec2, GLbyte, 2, GL_BYTE >.

Referenced by bytesUsed().

◆ computeBoundingBox()

virtual AABB vl::ArrayAbstract::computeBoundingBox ( ) const

pure virtual

Computes the axis aligned bounding box enclosing the vectors contained in the buffer.

Implemented in vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >, vl::Array< uvec4, GLuint, 4, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_FIXED >, vl::Array< ubvec4, GLubyte, 4, GL_UNSIGNED_BYTE >, vl::Array< ubvec2, GLubyte, 2, GL_UNSIGNED_BYTE >, vl::Array< svec4, GLshort, 4, GL_SHORT >, vl::Array< svec2, GLshort, 2, GL_SHORT >, vl::Array< GLshort, GLshort, 1, GL_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT >, vl::Array< ivec3, GLint, 3, GL_INT_2_10_10_10_REV >, vl::Array< GLuint, GLuint, 1, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT >, vl::Array< hvec3, half, 3, GL_HALF_FLOAT >, vl::Array< hvec2, half, 2, GL_HALF_FLOAT >, vl::Array< uvec3, GLuint, 3, GL_FIXED >, vl::Array< dvec4, GLdouble, 4, GL_DOUBLE >, vl::Array< ivec3, GLint, 3, GL_INT >, vl::Array< ivec2, GLint, 2, GL_INT >, vl::Array< GLbyte, GLbyte, 1, GL_BYTE >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec3, GLdouble, 3, GL_DOUBLE >, vl::Array< GLdouble, GLdouble, 1, GL_DOUBLE >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT >, vl::Array< GLint, GLint, 1, GL_INT >, vl::Array< ubvec3, GLubyte, 3, GL_UNSIGNED_BYTE >, vl::Array< ivec4, GLint, 4, GL_INT >, vl::Array< usvec4, GLushort, 4, GL_UNSIGNED_SHORT >, vl::Array< usvec2, GLushort, 2, GL_UNSIGNED_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLubyte, GLubyte, 1, GL_UNSIGNED_BYTE >, vl::Array< usvec3, GLushort, 3, GL_UNSIGNED_SHORT >, vl::Array< half, half, 1, GL_HALF_FLOAT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec2, GLdouble, 2, GL_DOUBLE >, vl::Array< fvec3, GLfloat, 3, GL_FLOAT >, vl::Array< hvec4, half, 4, GL_HALF_FLOAT >, vl::Array< ivec4, GLint, 4, GL_INT_2_10_10_10_REV >, vl::Array< ivec2, GLint, 2, GL_INT_2_10_10_10_REV >, vl::Array< GLushort, GLushort, 1, GL_UNSIGNED_SHORT >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLfloat, GLfloat, 1, GL_FLOAT >, vl::Array< GLint, GLint, 1, GL_INT_2_10_10_10_REV >, vl::Array< fvec4, GLfloat, 4, GL_FLOAT >, vl::Array< fvec2, GLfloat, 2, GL_FLOAT >, vl::Array< svec3, GLshort, 3, GL_SHORT >, vl::Array< bvec4, GLbyte, 4, GL_BYTE >, vl::Array< bvec3, GLbyte, 3, GL_BYTE >, and vl::Array< bvec2, GLbyte, 2, GL_BYTE >.

Referenced by bytesUsed().

◆ computeBoundingSphere()

virtual Sphere vl::ArrayAbstract::computeBoundingSphere ( ) const

pure virtual

Computes the bounding sphere enclosing the vectors contained in the buffer.

Implemented in vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >, vl::Array< uvec4, GLuint, 4, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_FIXED >, vl::Array< ubvec4, GLubyte, 4, GL_UNSIGNED_BYTE >, vl::Array< ubvec2, GLubyte, 2, GL_UNSIGNED_BYTE >, vl::Array< svec4, GLshort, 4, GL_SHORT >, vl::Array< svec2, GLshort, 2, GL_SHORT >, vl::Array< GLshort, GLshort, 1, GL_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT >, vl::Array< ivec3, GLint, 3, GL_INT_2_10_10_10_REV >, vl::Array< GLuint, GLuint, 1, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT >, vl::Array< hvec3, half, 3, GL_HALF_FLOAT >, vl::Array< hvec2, half, 2, GL_HALF_FLOAT >, vl::Array< uvec3, GLuint, 3, GL_FIXED >, vl::Array< dvec4, GLdouble, 4, GL_DOUBLE >, vl::Array< ivec3, GLint, 3, GL_INT >, vl::Array< ivec2, GLint, 2, GL_INT >, vl::Array< GLbyte, GLbyte, 1, GL_BYTE >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec3, GLdouble, 3, GL_DOUBLE >, vl::Array< GLdouble, GLdouble, 1, GL_DOUBLE >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT >, vl::Array< GLint, GLint, 1, GL_INT >, vl::Array< ubvec3, GLubyte, 3, GL_UNSIGNED_BYTE >, vl::Array< ivec4, GLint, 4, GL_INT >, vl::Array< usvec4, GLushort, 4, GL_UNSIGNED_SHORT >, vl::Array< usvec2, GLushort, 2, GL_UNSIGNED_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLubyte, GLubyte, 1, GL_UNSIGNED_BYTE >, vl::Array< usvec3, GLushort, 3, GL_UNSIGNED_SHORT >, vl::Array< half, half, 1, GL_HALF_FLOAT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec2, GLdouble, 2, GL_DOUBLE >, vl::Array< fvec3, GLfloat, 3, GL_FLOAT >, vl::Array< hvec4, half, 4, GL_HALF_FLOAT >, vl::Array< ivec4, GLint, 4, GL_INT_2_10_10_10_REV >, vl::Array< ivec2, GLint, 2, GL_INT_2_10_10_10_REV >, vl::Array< GLushort, GLushort, 1, GL_UNSIGNED_SHORT >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLfloat, GLfloat, 1, GL_FLOAT >, vl::Array< GLint, GLint, 1, GL_INT_2_10_10_10_REV >, vl::Array< fvec4, GLfloat, 4, GL_FLOAT >, vl::Array< fvec2, GLfloat, 2, GL_FLOAT >, vl::Array< svec3, GLshort, 3, GL_SHORT >, vl::Array< bvec4, GLbyte, 4, GL_BYTE >, vl::Array< bvec3, GLbyte, 3, GL_BYTE >, and vl::Array< bvec2, GLbyte, 2, GL_BYTE >.

Referenced by bytesUsed().

◆ getAsVec2()

virtual vec2 vl::ArrayAbstract::getAsVec2 ( size_t vector_index ) const

pure virtual

Returns a vector from the buffer as a vec2 value.

Implemented in vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >, vl::Array< uvec4, GLuint, 4, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_FIXED >, vl::Array< ubvec4, GLubyte, 4, GL_UNSIGNED_BYTE >, vl::Array< ubvec2, GLubyte, 2, GL_UNSIGNED_BYTE >, vl::Array< svec4, GLshort, 4, GL_SHORT >, vl::Array< svec2, GLshort, 2, GL_SHORT >, vl::Array< GLshort, GLshort, 1, GL_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT >, vl::Array< ivec3, GLint, 3, GL_INT_2_10_10_10_REV >, vl::Array< GLuint, GLuint, 1, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT >, vl::Array< hvec3, half, 3, GL_HALF_FLOAT >, vl::Array< hvec2, half, 2, GL_HALF_FLOAT >, vl::Array< uvec3, GLuint, 3, GL_FIXED >, vl::Array< dvec4, GLdouble, 4, GL_DOUBLE >, vl::Array< ivec3, GLint, 3, GL_INT >, vl::Array< ivec2, GLint, 2, GL_INT >, vl::Array< GLbyte, GLbyte, 1, GL_BYTE >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec3, GLdouble, 3, GL_DOUBLE >, vl::Array< GLdouble, GLdouble, 1, GL_DOUBLE >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT >, vl::Array< GLint, GLint, 1, GL_INT >, vl::Array< ubvec3, GLubyte, 3, GL_UNSIGNED_BYTE >, vl::Array< ivec4, GLint, 4, GL_INT >, vl::Array< usvec4, GLushort, 4, GL_UNSIGNED_SHORT >, vl::Array< usvec2, GLushort, 2, GL_UNSIGNED_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLubyte, GLubyte, 1, GL_UNSIGNED_BYTE >, vl::Array< usvec3, GLushort, 3, GL_UNSIGNED_SHORT >, vl::Array< half, half, 1, GL_HALF_FLOAT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec2, GLdouble, 2, GL_DOUBLE >, vl::Array< fvec3, GLfloat, 3, GL_FLOAT >, vl::Array< hvec4, half, 4, GL_HALF_FLOAT >, vl::Array< ivec4, GLint, 4, GL_INT_2_10_10_10_REV >, vl::Array< ivec2, GLint, 2, GL_INT_2_10_10_10_REV >, vl::Array< GLushort, GLushort, 1, GL_UNSIGNED_SHORT >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLfloat, GLfloat, 1, GL_FLOAT >, vl::Array< GLint, GLint, 1, GL_INT_2_10_10_10_REV >, vl::Array< fvec4, GLfloat, 4, GL_FLOAT >, vl::Array< fvec2, GLfloat, 2, GL_FLOAT >, vl::Array< svec3, GLshort, 3, GL_SHORT >, vl::Array< bvec4, GLbyte, 4, GL_BYTE >, vl::Array< bvec3, GLbyte, 3, GL_BYTE >, and vl::Array< bvec2, GLbyte, 2, GL_BYTE >.

Referenced by bytesUsed().

◆ getAsVec3()

virtual vec3 vl::ArrayAbstract::getAsVec3 ( size_t vector_index ) const

pure virtual

Returns a vector from the buffer as a vec3 value.

Implemented in vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >, vl::Array< uvec4, GLuint, 4, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_FIXED >, vl::Array< ubvec4, GLubyte, 4, GL_UNSIGNED_BYTE >, vl::Array< ubvec2, GLubyte, 2, GL_UNSIGNED_BYTE >, vl::Array< svec4, GLshort, 4, GL_SHORT >, vl::Array< svec2, GLshort, 2, GL_SHORT >, vl::Array< GLshort, GLshort, 1, GL_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT >, vl::Array< ivec3, GLint, 3, GL_INT_2_10_10_10_REV >, vl::Array< GLuint, GLuint, 1, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT >, vl::Array< hvec3, half, 3, GL_HALF_FLOAT >, vl::Array< hvec2, half, 2, GL_HALF_FLOAT >, vl::Array< uvec3, GLuint, 3, GL_FIXED >, vl::Array< dvec4, GLdouble, 4, GL_DOUBLE >, vl::Array< ivec3, GLint, 3, GL_INT >, vl::Array< ivec2, GLint, 2, GL_INT >, vl::Array< GLbyte, GLbyte, 1, GL_BYTE >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec3, GLdouble, 3, GL_DOUBLE >, vl::Array< GLdouble, GLdouble, 1, GL_DOUBLE >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT >, vl::Array< GLint, GLint, 1, GL_INT >, vl::Array< ubvec3, GLubyte, 3, GL_UNSIGNED_BYTE >, vl::Array< ivec4, GLint, 4, GL_INT >, vl::Array< usvec4, GLushort, 4, GL_UNSIGNED_SHORT >, vl::Array< usvec2, GLushort, 2, GL_UNSIGNED_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLubyte, GLubyte, 1, GL_UNSIGNED_BYTE >, vl::Array< usvec3, GLushort, 3, GL_UNSIGNED_SHORT >, vl::Array< half, half, 1, GL_HALF_FLOAT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec2, GLdouble, 2, GL_DOUBLE >, vl::Array< fvec3, GLfloat, 3, GL_FLOAT >, vl::Array< hvec4, half, 4, GL_HALF_FLOAT >, vl::Array< ivec4, GLint, 4, GL_INT_2_10_10_10_REV >, vl::Array< ivec2, GLint, 2, GL_INT_2_10_10_10_REV >, vl::Array< GLushort, GLushort, 1, GL_UNSIGNED_SHORT >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLfloat, GLfloat, 1, GL_FLOAT >, vl::Array< GLint, GLint, 1, GL_INT_2_10_10_10_REV >, vl::Array< fvec4, GLfloat, 4, GL_FLOAT >, vl::Array< fvec2, GLfloat, 2, GL_FLOAT >, vl::Array< svec3, GLshort, 3, GL_SHORT >, vl::Array< bvec4, GLbyte, 4, GL_BYTE >, vl::Array< bvec3, GLbyte, 3, GL_BYTE >, and vl::Array< bvec2, GLbyte, 2, GL_BYTE >.

Referenced by bytesUsed(), vl::Geometry::computeBounds_Implementation(), vl::Geometry::computeNormals(), vl::EdgeExtractor::extractEdges(), vl::Geometry::fixTriangleWinding(), vl::RayIntersector::intersectGeometry(), vl::DepthSortCallback::onActorRenderStarted(), vl::VectorGraphics::popScissor(), and vl::PolygonSimplifier::simplify().

◆ getAsVec4()

virtual vec4 vl::ArrayAbstract::getAsVec4 ( size_t vector_index ) const

pure virtual

Returns a vector from the buffer as a vec4 value.

Implemented in vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >, vl::Array< uvec4, GLuint, 4, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_FIXED >, vl::Array< ubvec4, GLubyte, 4, GL_UNSIGNED_BYTE >, vl::Array< ubvec2, GLubyte, 2, GL_UNSIGNED_BYTE >, vl::Array< svec4, GLshort, 4, GL_SHORT >, vl::Array< svec2, GLshort, 2, GL_SHORT >, vl::Array< GLshort, GLshort, 1, GL_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT >, vl::Array< ivec3, GLint, 3, GL_INT_2_10_10_10_REV >, vl::Array< GLuint, GLuint, 1, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT >, vl::Array< hvec3, half, 3, GL_HALF_FLOAT >, vl::Array< hvec2, half, 2, GL_HALF_FLOAT >, vl::Array< uvec3, GLuint, 3, GL_FIXED >, vl::Array< dvec4, GLdouble, 4, GL_DOUBLE >, vl::Array< ivec3, GLint, 3, GL_INT >, vl::Array< ivec2, GLint, 2, GL_INT >, vl::Array< GLbyte, GLbyte, 1, GL_BYTE >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec3, GLdouble, 3, GL_DOUBLE >, vl::Array< GLdouble, GLdouble, 1, GL_DOUBLE >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT >, vl::Array< GLint, GLint, 1, GL_INT >, vl::Array< ubvec3, GLubyte, 3, GL_UNSIGNED_BYTE >, vl::Array< ivec4, GLint, 4, GL_INT >, vl::Array< usvec4, GLushort, 4, GL_UNSIGNED_SHORT >, vl::Array< usvec2, GLushort, 2, GL_UNSIGNED_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLubyte, GLubyte, 1, GL_UNSIGNED_BYTE >, vl::Array< usvec3, GLushort, 3, GL_UNSIGNED_SHORT >, vl::Array< half, half, 1, GL_HALF_FLOAT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec2, GLdouble, 2, GL_DOUBLE >, vl::Array< fvec3, GLfloat, 3, GL_FLOAT >, vl::Array< hvec4, half, 4, GL_HALF_FLOAT >, vl::Array< ivec4, GLint, 4, GL_INT_2_10_10_10_REV >, vl::Array< ivec2, GLint, 2, GL_INT_2_10_10_10_REV >, vl::Array< GLushort, GLushort, 1, GL_UNSIGNED_SHORT >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLfloat, GLfloat, 1, GL_FLOAT >, vl::Array< GLint, GLint, 1, GL_INT_2_10_10_10_REV >, vl::Array< fvec4, GLfloat, 4, GL_FLOAT >, vl::Array< fvec2, GLfloat, 2, GL_FLOAT >, vl::Array< svec3, GLshort, 3, GL_SHORT >, vl::Array< bvec4, GLbyte, 4, GL_BYTE >, vl::Array< bvec3, GLbyte, 3, GL_BYTE >, and vl::Array< bvec2, GLbyte, 2, GL_BYTE >.

Referenced by bytesUsed(), and vl::VectorGraphics::popScissor().

◆ glSize()

virtual size_t vl::ArrayAbstract::glSize ( ) const

pure virtual

Returns the number of scalar components for the array, ie 3 for ArrayFloat3, 1 for ArrayUInt1 etc.

Implemented in vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >, vl::Array< uvec4, GLuint, 4, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_FIXED >, vl::Array< ubvec4, GLubyte, 4, GL_UNSIGNED_BYTE >, vl::Array< ubvec2, GLubyte, 2, GL_UNSIGNED_BYTE >, vl::Array< svec4, GLshort, 4, GL_SHORT >, vl::Array< svec2, GLshort, 2, GL_SHORT >, vl::Array< GLshort, GLshort, 1, GL_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT >, vl::Array< ivec3, GLint, 3, GL_INT_2_10_10_10_REV >, vl::Array< GLuint, GLuint, 1, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT >, vl::Array< hvec3, half, 3, GL_HALF_FLOAT >, vl::Array< hvec2, half, 2, GL_HALF_FLOAT >, vl::Array< uvec3, GLuint, 3, GL_FIXED >, vl::Array< dvec4, GLdouble, 4, GL_DOUBLE >, vl::Array< ivec3, GLint, 3, GL_INT >, vl::Array< ivec2, GLint, 2, GL_INT >, vl::Array< GLbyte, GLbyte, 1, GL_BYTE >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec3, GLdouble, 3, GL_DOUBLE >, vl::Array< GLdouble, GLdouble, 1, GL_DOUBLE >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT >, vl::Array< GLint, GLint, 1, GL_INT >, vl::Array< ubvec3, GLubyte, 3, GL_UNSIGNED_BYTE >, vl::Array< ivec4, GLint, 4, GL_INT >, vl::Array< usvec4, GLushort, 4, GL_UNSIGNED_SHORT >, vl::Array< usvec2, GLushort, 2, GL_UNSIGNED_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLubyte, GLubyte, 1, GL_UNSIGNED_BYTE >, vl::Array< usvec3, GLushort, 3, GL_UNSIGNED_SHORT >, vl::Array< half, half, 1, GL_HALF_FLOAT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec2, GLdouble, 2, GL_DOUBLE >, vl::Array< fvec3, GLfloat, 3, GL_FLOAT >, vl::Array< hvec4, half, 4, GL_HALF_FLOAT >, vl::Array< ivec4, GLint, 4, GL_INT_2_10_10_10_REV >, vl::Array< ivec2, GLint, 2, GL_INT_2_10_10_10_REV >, vl::Array< GLushort, GLushort, 1, GL_UNSIGNED_SHORT >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLfloat, GLfloat, 1, GL_FLOAT >, vl::Array< GLint, GLint, 1, GL_INT_2_10_10_10_REV >, vl::Array< fvec4, GLfloat, 4, GL_FLOAT >, vl::Array< fvec2, GLfloat, 2, GL_FLOAT >, vl::Array< svec3, GLshort, 3, GL_SHORT >, vl::Array< bvec4, GLbyte, 4, GL_BYTE >, vl::Array< bvec3, GLbyte, 3, GL_BYTE >, and vl::Array< bvec2, GLbyte, 2, GL_BYTE >.

Referenced by vl::OpenGLContext::bindVAS_Attribs(), vl::OpenGLContext::bindVAS_Fixed(), bytesUsed(), vl::Geometry::setColorArray(), vl::Geometry::setFogCoordArray(), vl::Geometry::setNormalArray(), vl::Geometry::setSecondaryColorArray(), vl::Geometry::setTexCoordArray(), and vl::Geometry::setVertexArray().

◆ glType()

virtual GLenum vl::ArrayAbstract::glType ( ) const

pure virtual

Returns the OpenGL type for the array, ie GL_FLOAT for ArrayFloat3, GL_UNSIGNED_INT for ArrayUInt1 etc.

Implemented in vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >, vl::Array< uvec4, GLuint, 4, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_FIXED >, vl::Array< ubvec4, GLubyte, 4, GL_UNSIGNED_BYTE >, vl::Array< ubvec2, GLubyte, 2, GL_UNSIGNED_BYTE >, vl::Array< svec4, GLshort, 4, GL_SHORT >, vl::Array< svec2, GLshort, 2, GL_SHORT >, vl::Array< GLshort, GLshort, 1, GL_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT >, vl::Array< ivec3, GLint, 3, GL_INT_2_10_10_10_REV >, vl::Array< GLuint, GLuint, 1, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT >, vl::Array< hvec3, half, 3, GL_HALF_FLOAT >, vl::Array< hvec2, half, 2, GL_HALF_FLOAT >, vl::Array< uvec3, GLuint, 3, GL_FIXED >, vl::Array< dvec4, GLdouble, 4, GL_DOUBLE >, vl::Array< ivec3, GLint, 3, GL_INT >, vl::Array< ivec2, GLint, 2, GL_INT >, vl::Array< GLbyte, GLbyte, 1, GL_BYTE >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec3, GLdouble, 3, GL_DOUBLE >, vl::Array< GLdouble, GLdouble, 1, GL_DOUBLE >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT >, vl::Array< GLint, GLint, 1, GL_INT >, vl::Array< ubvec3, GLubyte, 3, GL_UNSIGNED_BYTE >, vl::Array< ivec4, GLint, 4, GL_INT >, vl::Array< usvec4, GLushort, 4, GL_UNSIGNED_SHORT >, vl::Array< usvec2, GLushort, 2, GL_UNSIGNED_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLubyte, GLubyte, 1, GL_UNSIGNED_BYTE >, vl::Array< usvec3, GLushort, 3, GL_UNSIGNED_SHORT >, vl::Array< half, half, 1, GL_HALF_FLOAT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec2, GLdouble, 2, GL_DOUBLE >, vl::Array< fvec3, GLfloat, 3, GL_FLOAT >, vl::Array< hvec4, half, 4, GL_HALF_FLOAT >, vl::Array< ivec4, GLint, 4, GL_INT_2_10_10_10_REV >, vl::Array< ivec2, GLint, 2, GL_INT_2_10_10_10_REV >, vl::Array< GLushort, GLushort, 1, GL_UNSIGNED_SHORT >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLfloat, GLfloat, 1, GL_FLOAT >, vl::Array< GLint, GLint, 1, GL_INT_2_10_10_10_REV >, vl::Array< fvec4, GLfloat, 4, GL_FLOAT >, vl::Array< fvec2, GLfloat, 2, GL_FLOAT >, vl::Array< svec3, GLshort, 3, GL_SHORT >, vl::Array< bvec4, GLbyte, 4, GL_BYTE >, vl::Array< bvec3, GLbyte, 3, GL_BYTE >, and vl::Array< bvec2, GLbyte, 2, GL_BYTE >.

Referenced by vl::OpenGLContext::bindVAS_Attribs(), vl::OpenGLContext::bindVAS_Fixed(), bytesUsed(), vl::Geometry::setColorArray(), vl::Geometry::setFogCoordArray(), vl::Geometry::setNormalArray(), vl::Geometry::setSecondaryColorArray(), and vl::Geometry::setTexCoordArray().

◆ interpretation()

EVertexAttribInterpretation vl::ArrayAbstract::interpretation ( ) const

inline

How the data is interpreted by the OpenGL, see EVertexAttribInterpretation.

Definition at line 182 of file Array.hpp.

References mInterpretation.

Referenced by vl::OpenGLContext::bindVAS_Attribs().

◆ isBufferObjectDirty()

bool vl::ArrayAbstract::isBufferObjectDirty ( ) const

inline

Wether the BufferObject should be updated or not using the local storage.

Initially set to true. IMPORTANT: To automatically update the buffer object of a Renderable, Geometry etc. you also need to call Renderable::setBufferObjectDirty(). IMPORTANT: To immediately update the buffer object manually call the updateBufferObject() method of this class.

Definition at line 147 of file Array.hpp.

References mBufferObjectDirty.

◆ normalize() [1/2]

virtual void vl::ArrayAbstract::normalize ( )

pure virtual

Normalizes the vectors contained in the buffer.

Implemented in vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >, vl::Array< uvec4, GLuint, 4, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_FIXED >, vl::Array< ubvec4, GLubyte, 4, GL_UNSIGNED_BYTE >, vl::Array< ubvec2, GLubyte, 2, GL_UNSIGNED_BYTE >, vl::Array< svec4, GLshort, 4, GL_SHORT >, vl::Array< svec2, GLshort, 2, GL_SHORT >, vl::Array< GLshort, GLshort, 1, GL_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT >, vl::Array< ivec3, GLint, 3, GL_INT_2_10_10_10_REV >, vl::Array< GLuint, GLuint, 1, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT >, vl::Array< hvec3, half, 3, GL_HALF_FLOAT >, vl::Array< hvec2, half, 2, GL_HALF_FLOAT >, vl::Array< uvec3, GLuint, 3, GL_FIXED >, vl::Array< dvec4, GLdouble, 4, GL_DOUBLE >, vl::Array< ivec3, GLint, 3, GL_INT >, vl::Array< ivec2, GLint, 2, GL_INT >, vl::Array< GLbyte, GLbyte, 1, GL_BYTE >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec3, GLdouble, 3, GL_DOUBLE >, vl::Array< GLdouble, GLdouble, 1, GL_DOUBLE >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT >, vl::Array< GLint, GLint, 1, GL_INT >, vl::Array< ubvec3, GLubyte, 3, GL_UNSIGNED_BYTE >, vl::Array< ivec4, GLint, 4, GL_INT >, vl::Array< usvec4, GLushort, 4, GL_UNSIGNED_SHORT >, vl::Array< usvec2, GLushort, 2, GL_UNSIGNED_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLubyte, GLubyte, 1, GL_UNSIGNED_BYTE >, vl::Array< usvec3, GLushort, 3, GL_UNSIGNED_SHORT >, vl::Array< half, half, 1, GL_HALF_FLOAT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec2, GLdouble, 2, GL_DOUBLE >, vl::Array< fvec3, GLfloat, 3, GL_FLOAT >, vl::Array< hvec4, half, 4, GL_HALF_FLOAT >, vl::Array< ivec4, GLint, 4, GL_INT_2_10_10_10_REV >, vl::Array< ivec2, GLint, 2, GL_INT_2_10_10_10_REV >, vl::Array< GLushort, GLushort, 1, GL_UNSIGNED_SHORT >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLfloat, GLfloat, 1, GL_FLOAT >, vl::Array< GLint, GLint, 1, GL_INT_2_10_10_10_REV >, vl::Array< fvec4, GLfloat, 4, GL_FLOAT >, vl::Array< fvec2, GLfloat, 2, GL_FLOAT >, vl::Array< svec3, GLshort, 3, GL_SHORT >, vl::Array< bvec4, GLbyte, 4, GL_BYTE >, vl::Array< bvec3, GLbyte, 3, GL_BYTE >, and vl::Array< bvec2, GLbyte, 2, GL_BYTE >.

Referenced by vl::OpenGLContext::bindVAS_Attribs(), bytesUsed(), setNormalize(), and vl::Geometry::transform().

◆ normalize() [2/2]

bool vl::ArrayAbstract::normalize ( ) const

inline

The 'normalized' parameter as used with glVertexAttribPointer()

See also

http://www.opengl.org/sdk/docs/man/xhtml/glVertexAttribPointer.xml

Definition at line 176 of file Array.hpp.

References mNormalize.

◆ operator=()

void vl::ArrayAbstract::operator= ( const ArrayAbstract & other )

inline

Copies only the local data and not the BufferObject related fields.

Definition at line 87 of file Array.hpp.

References bufferObject(), bytesUsed(), vl::Buffer::bytesUsed(), clone(), mInterpretation, mNormalize, ptr(), and vl::Buffer::resize().

Referenced by ArrayAbstract().

◆ ptr() [1/2]

const unsigned char* vl::ArrayAbstract::ptr ( ) const

inline

Returns the pointer to the first element of the local buffer. Equivalent to bufferObject()->ptr()

Definition at line 103 of file Array.hpp.

References bufferObject(), NULL, and vl::Buffer::ptr().

Referenced by vl::Array< bvec2, GLbyte, 2, GL_BYTE >::at(), vl::Array< bvec2, GLbyte, 2, GL_BYTE >::begin(), vl::Array< bvec2, GLbyte, 2, GL_BYTE >::clone(), vl::Array< bvec2, GLbyte, 2, GL_BYTE >::end(), vlX::VLXClassWrapper_Array::importVLX(), vl::Array< bvec2, GLbyte, 2, GL_BYTE >::initFrom(), vl::load3DS(), vl::STLLoader::loadAscii(), vl::PlyLoader::loadPly(), vl::makeBox(), vl::makeIcosahedron(), vl::Geometry::mergeTriangleStrips(), vl::SlicedVolume::onActorRenderStarted(), operator=(), vl::RaycastVolume::RaycastVolume(), vl::MarchingCubes::run(), and vl::TriangleStripGenerator::stripfy().

◆ ptr() [2/2]

unsigned char* vl::ArrayAbstract::ptr ( )

inline

Returns the pointer to the first element of the local buffer. Equivalent to bufferObject()->ptr()

Definition at line 106 of file Array.hpp.

References bufferObject(), NULL, and vl::Buffer::ptr().

◆ setBufferObjectDirty()

void vl::ArrayAbstract::setBufferObjectDirty ( bool dirty = true )

inline

Wether the BufferObject should be updated or not using the local storage.

Initially set to true. IMPORTANT: To automatically update the buffer object of a Renderable, Geometry etc. you also need to call Renderable::setBufferObjectDirty(). IMPORTANT: To immediately update the buffer object manually call the updateBufferObject() method of this class.

Definition at line 152 of file Array.hpp.

References mBufferObjectDirty.

Referenced by vl::BezierSurface::updateBezierSurface(), and updateBufferObject().

◆ setInterpretation()

void vl::ArrayAbstract::setInterpretation ( EVertexAttribInterpretation behavior )

inline

How the data is interpreted by the OpenGL, see EVertexAttribInterpretation.

Definition at line 179 of file Array.hpp.

References mInterpretation.

◆ setNormalize()

void vl::ArrayAbstract::setNormalize ( bool normalize )

inline

The 'normalized' parameter as used with glVertexAttribPointer()

See also

http://www.opengl.org/sdk/docs/man/xhtml/glVertexAttribPointer.xml

Definition at line 171 of file Array.hpp.

References mNormalize, and normalize().

◆ setUsage()

void vl::ArrayAbstract::setUsage ( EBufferObjectUsage usage )

inline

BU_STATIC_DRAW by default.

Definition at line 158 of file Array.hpp.

References mBufferObjectUsage, and usage().

◆ size()

virtual size_t vl::ArrayAbstract::size ( ) const

pure virtual

Returns the number of elements of an array.

Implemented in vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >, vl::Array< uvec4, GLuint, 4, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_FIXED >, vl::Array< ubvec4, GLubyte, 4, GL_UNSIGNED_BYTE >, vl::Array< ubvec2, GLubyte, 2, GL_UNSIGNED_BYTE >, vl::Array< svec4, GLshort, 4, GL_SHORT >, vl::Array< svec2, GLshort, 2, GL_SHORT >, vl::Array< GLshort, GLshort, 1, GL_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT >, vl::Array< ivec3, GLint, 3, GL_INT_2_10_10_10_REV >, vl::Array< GLuint, GLuint, 1, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT >, vl::Array< hvec3, half, 3, GL_HALF_FLOAT >, vl::Array< hvec2, half, 2, GL_HALF_FLOAT >, vl::Array< uvec3, GLuint, 3, GL_FIXED >, vl::Array< dvec4, GLdouble, 4, GL_DOUBLE >, vl::Array< ivec3, GLint, 3, GL_INT >, vl::Array< ivec2, GLint, 2, GL_INT >, vl::Array< GLbyte, GLbyte, 1, GL_BYTE >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec3, GLdouble, 3, GL_DOUBLE >, vl::Array< GLdouble, GLdouble, 1, GL_DOUBLE >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT >, vl::Array< GLint, GLint, 1, GL_INT >, vl::Array< ubvec3, GLubyte, 3, GL_UNSIGNED_BYTE >, vl::Array< ivec4, GLint, 4, GL_INT >, vl::Array< usvec4, GLushort, 4, GL_UNSIGNED_SHORT >, vl::Array< usvec2, GLushort, 2, GL_UNSIGNED_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLubyte, GLubyte, 1, GL_UNSIGNED_BYTE >, vl::Array< usvec3, GLushort, 3, GL_UNSIGNED_SHORT >, vl::Array< half, half, 1, GL_HALF_FLOAT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec2, GLdouble, 2, GL_DOUBLE >, vl::Array< fvec3, GLfloat, 3, GL_FLOAT >, vl::Array< hvec4, half, 4, GL_HALF_FLOAT >, vl::Array< ivec4, GLint, 4, GL_INT_2_10_10_10_REV >, vl::Array< ivec2, GLint, 2, GL_INT_2_10_10_10_REV >, vl::Array< GLushort, GLushort, 1, GL_UNSIGNED_SHORT >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLfloat, GLfloat, 1, GL_FLOAT >, vl::Array< GLint, GLint, 1, GL_INT_2_10_10_10_REV >, vl::Array< fvec4, GLfloat, 4, GL_FLOAT >, vl::Array< fvec2, GLfloat, 2, GL_FLOAT >, vl::Array< svec3, GLshort, 3, GL_SHORT >, vl::Array< bvec4, GLbyte, 4, GL_BYTE >, vl::Array< bvec3, GLbyte, 3, GL_BYTE >, and vl::Array< bvec2, GLbyte, 2, GL_BYTE >.

◆ transform()

virtual void vl::ArrayAbstract::transform ( const mat4 & m )

pure virtual

Transforms the vectors contained in the buffer.

Implemented in vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >, vl::Array< uvec4, GLuint, 4, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_FIXED >, vl::Array< ubvec4, GLubyte, 4, GL_UNSIGNED_BYTE >, vl::Array< ubvec2, GLubyte, 2, GL_UNSIGNED_BYTE >, vl::Array< svec4, GLshort, 4, GL_SHORT >, vl::Array< svec2, GLshort, 2, GL_SHORT >, vl::Array< GLshort, GLshort, 1, GL_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT >, vl::Array< ivec3, GLint, 3, GL_INT_2_10_10_10_REV >, vl::Array< GLuint, GLuint, 1, GL_FIXED >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT >, vl::Array< hvec3, half, 3, GL_HALF_FLOAT >, vl::Array< hvec2, half, 2, GL_HALF_FLOAT >, vl::Array< uvec3, GLuint, 3, GL_FIXED >, vl::Array< dvec4, GLdouble, 4, GL_DOUBLE >, vl::Array< ivec3, GLint, 3, GL_INT >, vl::Array< ivec2, GLint, 2, GL_INT >, vl::Array< GLbyte, GLbyte, 1, GL_BYTE >, vl::Array< uvec2, GLuint, 2, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec3, GLdouble, 3, GL_DOUBLE >, vl::Array< GLdouble, GLdouble, 1, GL_DOUBLE >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT >, vl::Array< GLint, GLint, 1, GL_INT >, vl::Array< ubvec3, GLubyte, 3, GL_UNSIGNED_BYTE >, vl::Array< ivec4, GLint, 4, GL_INT >, vl::Array< usvec4, GLushort, 4, GL_UNSIGNED_SHORT >, vl::Array< usvec2, GLushort, 2, GL_UNSIGNED_SHORT >, vl::Array< uvec4, GLuint, 4, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLubyte, GLubyte, 1, GL_UNSIGNED_BYTE >, vl::Array< usvec3, GLushort, 3, GL_UNSIGNED_SHORT >, vl::Array< half, half, 1, GL_HALF_FLOAT >, vl::Array< GLuint, GLuint, 1, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< dvec2, GLdouble, 2, GL_DOUBLE >, vl::Array< fvec3, GLfloat, 3, GL_FLOAT >, vl::Array< hvec4, half, 4, GL_HALF_FLOAT >, vl::Array< ivec4, GLint, 4, GL_INT_2_10_10_10_REV >, vl::Array< ivec2, GLint, 2, GL_INT_2_10_10_10_REV >, vl::Array< GLushort, GLushort, 1, GL_UNSIGNED_SHORT >, vl::Array< uvec3, GLuint, 3, GL_UNSIGNED_INT_2_10_10_10_REV >, vl::Array< GLfloat, GLfloat, 1, GL_FLOAT >, vl::Array< GLint, GLint, 1, GL_INT_2_10_10_10_REV >, vl::Array< fvec4, GLfloat, 4, GL_FLOAT >, vl::Array< fvec2, GLfloat, 2, GL_FLOAT >, vl::Array< svec3, GLshort, 3, GL_SHORT >, vl::Array< bvec4, GLbyte, 4, GL_BYTE >, vl::Array< bvec3, GLbyte, 3, GL_BYTE >, and vl::Array< bvec2, GLbyte, 2, GL_BYTE >.

Referenced by bytesUsed(), and vl::Geometry::transform().

◆ updateBufferObject()

void vl::ArrayAbstract::updateBufferObject ( EBufferObjectUpdateMode mode = BUM_KeepRamBuffer )

inline

Updates the BufferObject.

Parameters

mode	Only the BUF_DiscardRamBuffer flag is checked as the BUF_ForceUpdate flag is considered always set for this function. By default mode is set to BUM_KeepRamBuffer.

Definition at line 162 of file Array.hpp.

References vl::BUF_DiscardRamBuffer, bufferObject(), vl::BufferObject::setBufferData(), setBufferObjectDirty(), and usage().

◆ usage()

EBufferObjectUsage vl::ArrayAbstract::usage ( ) const

inline

BU_STATIC_DRAW by default.

Definition at line 155 of file Array.hpp.

References mBufferObjectUsage.

Referenced by setUsage(), and updateBufferObject().

Member Data Documentation

◆ mBufferObject

ref<BufferObject> vl::ArrayAbstract::mBufferObject

protected

Definition at line 185 of file Array.hpp.

Referenced by ArrayAbstract(), and bufferObject().

◆ mBufferObjectDirty

bool vl::ArrayAbstract::mBufferObjectDirty

protected

Definition at line 187 of file Array.hpp.

Referenced by ArrayAbstract(), isBufferObjectDirty(), and setBufferObjectDirty().

◆ mBufferObjectUsage

EBufferObjectUsage vl::ArrayAbstract::mBufferObjectUsage

protected

Definition at line 186 of file Array.hpp.

Referenced by ArrayAbstract(), setUsage(), and usage().

◆ mInterpretation

EVertexAttribInterpretation vl::ArrayAbstract::mInterpretation

protected

Definition at line 188 of file Array.hpp.

Referenced by ArrayAbstract(), interpretation(), operator=(), and setInterpretation().

◆ mNormalize

bool vl::ArrayAbstract::mNormalize

protected

Definition at line 189 of file Array.hpp.

Referenced by ArrayAbstract(), normalize(), operator=(), and setNormalize().

The documentation for this class was generated from the following file:

C:/git/VL/src/vlGraphics/Array.hpp

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ArrayAbstract() [1/2]

◆ ArrayAbstract() [2/2]

Member Function Documentation

◆ bufferObject() [1/2]

◆ bufferObject() [2/2]

◆ bytesUsed()

◆ clear()

◆ clone()

◆ compare()

◆ computeBoundingBox()

◆ computeBoundingSphere()

◆ getAsVec2()

◆ getAsVec3()

◆ getAsVec4()

◆ glSize()

◆ glType()

◆ interpretation()

◆ isBufferObjectDirty()

◆ normalize() [1/2]

◆ normalize() [2/2]

◆ operator=()

◆ ptr() [1/2]

◆ ptr() [2/2]

◆ setBufferObjectDirty()

◆ setInterpretation()

◆ setNormalize()

◆ setUsage()

◆ size()

◆ transform()

◆ updateBufferObject()

◆ usage()

Member Data Documentation

◆ mBufferObject

◆ mBufferObjectDirty

◆ mBufferObjectUsage

◆ mInterpretation

◆ mNormalize
