Abstract class that represents a framebuffer renderbuffer attachment, that is, a non-texture fbo attachment (wraps glFramebufferRenderbuffer()). More...

#include <FramebufferObject.hpp>

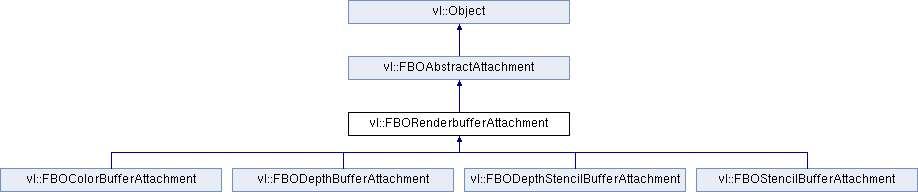

Inheritance diagram for vl::FBORenderbufferAttachment:

Public Member Functions
	FBORenderbufferAttachment ()
	Constructor. More...

	~FBORenderbufferAttachment ()
	Destructor. More...

void	createRenderBuffer ()
	Creates a renderbuffer object calling glGenRenderbuffers(). More...

void	deleteRenderBuffer ()
	Deletes the renderbuffer object created with the createRenderBuffer() method. More...

void	setHandle (GLuint handle)
	Sets the handle for this attachment, the handle must have been created by glGenRenderbuffers(). More...

GLuint	handle () const
	Returns the handle obtained by createRenderBuffer() using glGenRenderbuffers() More...

void	initStorage (int w, int h, int samples)
	Initializes the storage of the renderbuffer with the given sample count and dimensions. More...

void	initStorage ()
	The same as calling initStorage( width(), height() ) More...

int	width () const
	Returns the with of the renderbuffer storage. More...

int	height () const
	Returns the height of the renderbuffer storage. More...

int	samples () const
	Returns the number of samples to be used when allocating the renderbuffer's storage. More...

void	setWidth (int w)
	The width of the renderbuffer storage to be allocated. More...

void	setHeight (int h)
	The height of the renderbuffer storage to be allocated. More...

void	setSamples (int samples)
	Sets the number of samples to be specified when allocating the renderbuffer's storage. More...

bool	renderbufferStorageReady () const
	Returns `false` if the renderbuffer storage needs to be created or reallocated due to a change of the sample count, renderbuffer type or dimension. More...

Public Member Functions inherited from vl::FBOAbstractAttachment
	FBOAbstractAttachment ()
	Constructor. More...

virtual	~FBOAbstractAttachment ()
	Destructor. More...

virtual void	unbindFromAllFBO ()
	Removes the FBO attachment from all bound FBO render targets. More...

const std::set< ref< FramebufferObject > > &	fboFramebuffers () const
	Returns an std::set containing the FramebufferObject that use this FBO attachment. More...

Public Member Functions inherited from vl::Object
	Object ()
	Constructor. More...

	Object (const Object &other)
	Copy constructor: copies the name, ref count mutex and user data. More...

Object &	operator= (const Object &other)
	Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string &	objectName () const
	The name of the object, by default set to the object's class name. More...

void	setObjectName (const char *name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setObjectName (const std::string &name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setRefCountMutex (IMutex *mutex)
	The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutex *	refCountMutex ()
	The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutex *	refCountMutex () const
	The mutex used to protect the reference counting of an Object across multiple threads. More...

int	referenceCount () const
	Returns the number of references of an object. More...

void	incReference () const
	Increments the reference count of an object. More...

void	decReference ()
	Decrements the reference count of an object and deletes it if both automaticDelete() is `true` the count reaches 0. More...

void	setAutomaticDelete (bool autodel_on)
	If set to true the Object is deleted when its reference count reaches 0. More...

bool	automaticDelete () const
	If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T *	as ()
	Casts an Object to the specified class. More...

template<class T >
const T *	as () const
	Casts an Object to the specified class. More...

Protected Member Functions
void	bindAttachment (FramebufferObject *fbo, EAttachmentPoint attach_point)

virtual int	internalType ()=0

Protected Member Functions inherited from vl::Object
virtual	~Object ()

Protected Attributes
GLuint	mHandle

int	mWidth

int	mHeight

int	mSamples

bool	mReallocateRenderbuffer

Protected Attributes inherited from vl::FBOAbstractAttachment
std::set< ref< FramebufferObject > >	mFramebufferObjects

Protected Attributes inherited from vl::Object
std::string	mObjectName

IMutex *	mRefCountMutex

int	mReferenceCount

bool	mAutomaticDelete

Friends
class	FramebufferObject

Detailed Description

Abstract class that represents a framebuffer renderbuffer attachment, that is, a non-texture fbo attachment (wraps glFramebufferRenderbuffer()).

See also: FramebufferObject.; http://www.opengl.org/sdk/docs/man3/xhtml/glFramebufferRenderbuffer.xml

Definition at line 87 of file FramebufferObject.hpp.

Constructor & Destructor Documentation

◆ FBORenderbufferAttachment()

vl::FBORenderbufferAttachment::FBORenderbufferAttachment ( )

inline

Constructor.

Definition at line 95 of file FramebufferObject.hpp.

◆ ~FBORenderbufferAttachment()

vl::FBORenderbufferAttachment::~FBORenderbufferAttachment ( )

inline

Destructor.

Definition at line 98 of file FramebufferObject.hpp.

Member Function Documentation

◆ bindAttachment()

void FBORenderbufferAttachment::bindAttachment	(	FramebufferObject *	fbo,
		EAttachmentPoint	attach_point
	)

protectedvirtual

Implements vl::FBOAbstractAttachment.

Definition at line 561 of file FramebufferObject.cpp.

References vl::Has_FBO, vl::Framebuffer::height(), VL_CHECK, VL_CHECK_OGL, and vl::Framebuffer::width().

Referenced by vl::FramebufferObject::addColorAttachment().

◆ createRenderBuffer()

void FBORenderbufferAttachment::createRenderBuffer ( )

Creates a renderbuffer object calling glGenRenderbuffers().

The identifier returned by glGenRenderbuffers() can be queried calling the handle() method.

Definition at line 497 of file FramebufferObject.cpp.

References vl::Has_FBO, VL_CHECK, and VL_CHECK_OGL.

◆ deleteRenderBuffer()

void FBORenderbufferAttachment::deleteRenderBuffer ( )

Deletes the renderbuffer object created with the createRenderBuffer() method.

Definition at line 511 of file FramebufferObject.cpp.

References vl::Has_FBO, VL_CHECK, and VL_CHECK_OGL.

◆ handle()

GLuint vl::FBORenderbufferAttachment::handle ( ) const

inline

Returns the handle obtained by createRenderBuffer() using glGenRenderbuffers()

Definition at line 116 of file FramebufferObject.hpp.

◆ height()

int vl::FBORenderbufferAttachment::height ( ) const

inline

Returns the height of the renderbuffer storage.

Note that if renderbufferStorageReady() returns false it means that the renderbuffer has not been allocated yet.

Definition at line 142 of file FramebufferObject.hpp.

◆ initStorage() [1/2]

void FBORenderbufferAttachment::initStorage	(	int	w,
		int	h,
		int	samples
	)

Initializes the storage of the renderbuffer with the given sample count and dimensions.

This method does nothing if the the width, height and sample count has not changed since last time it was called. Note that the renderbuffer storage type is defined by the setType() method of FBOColorBufferAttachment, FBODepthBufferAttachment, FBOStencilBufferAttachment, FBODepthStencilBufferAttachment. See also setSamples().

Definition at line 530 of file FramebufferObject.cpp.

References vl::Log::error(), vl::Has_FBO, vl::Has_FBO_Multisample, VL_CHECK, and VL_CHECK_OGL.

◆ initStorage() [2/2]

void vl::FBORenderbufferAttachment::initStorage ( )

inline

The same as calling initStorage( width(), height() )

Definition at line 128 of file FramebufferObject.hpp.

References initStorage().

Referenced by initStorage().

◆ internalType()

virtual int vl::FBORenderbufferAttachment::internalType ( )

protectedpure virtual

Implemented in vl::FBODepthStencilBufferAttachment, vl::FBOStencilBufferAttachment, vl::FBODepthBufferAttachment, and vl::FBOColorBufferAttachment.

◆ renderbufferStorageReady()

bool vl::FBORenderbufferAttachment::renderbufferStorageReady ( ) const

inline

Returns false if the renderbuffer storage needs to be created or reallocated due to a change of the sample count, renderbuffer type or dimension.

Definition at line 169 of file FramebufferObject.hpp.

◆ samples()

int vl::FBORenderbufferAttachment::samples ( ) const

inline

Returns the number of samples to be used when allocating the renderbuffer's storage.

Note that if renderbufferStorageReady() returns false it means that the renderbuffer has not been allocated yet.

Definition at line 149 of file FramebufferObject.hpp.

◆ setHandle()

void vl::FBORenderbufferAttachment::setHandle ( GLuint handle )

inline

Sets the handle for this attachment, the handle must have been created by glGenRenderbuffers().

Normally you don't need to call this. See also: createRenderBuffer(), handle().

Definition at line 113 of file FramebufferObject.hpp.

◆ setHeight()

void vl::FBORenderbufferAttachment::setHeight ( int h )

inline

The height of the renderbuffer storage to be allocated.

If 'h' is set to 0 the renderbuffer storage allocation will use the dimensions of the next FramebufferObject bound.

Definition at line 161 of file FramebufferObject.hpp.

◆ setSamples()

void vl::FBORenderbufferAttachment::setSamples ( int samples )

inline

Sets the number of samples to be specified when allocating the renderbuffer's storage.

Definition at line 166 of file FramebufferObject.hpp.

◆ setWidth()

void vl::FBORenderbufferAttachment::setWidth ( int w )

inline

The width of the renderbuffer storage to be allocated.

If 'w' is set to 0 the renderbuffer storage allocation will use the dimensions of the next FramebufferObject bound.

Definition at line 155 of file FramebufferObject.hpp.

◆ width()

int vl::FBORenderbufferAttachment::width ( ) const

inline

Returns the with of the renderbuffer storage.

Note that if renderbufferStorageReady() returns false it means that the renderbuffer has not been allocated yet.

Definition at line 135 of file FramebufferObject.hpp.

Friends And Related Function Documentation

◆ FramebufferObject

friend class FramebufferObject

friend

Definition at line 91 of file FramebufferObject.hpp.

Member Data Documentation

◆ mHandle

GLuint vl::FBORenderbufferAttachment::mHandle

protected

Definition at line 176 of file FramebufferObject.hpp.

◆ mHeight

int vl::FBORenderbufferAttachment::mHeight

protected

Definition at line 178 of file FramebufferObject.hpp.

◆ mReallocateRenderbuffer

bool vl::FBORenderbufferAttachment::mReallocateRenderbuffer

protected

Definition at line 180 of file FramebufferObject.hpp.

◆ mSamples

int vl::FBORenderbufferAttachment::mSamples

protected

Definition at line 179 of file FramebufferObject.hpp.

◆ mWidth

int vl::FBORenderbufferAttachment::mWidth

protected

Definition at line 177 of file FramebufferObject.hpp.

The documentation for this class was generated from the following files:

C:/git/VL/src/vlGraphics/FramebufferObject.hpp
C:/git/VL/src/vlGraphics/FramebufferObject.cpp
