Base interface for all MultiDrawElements* sub classes. More...

#include <MultiDrawElements.hpp>

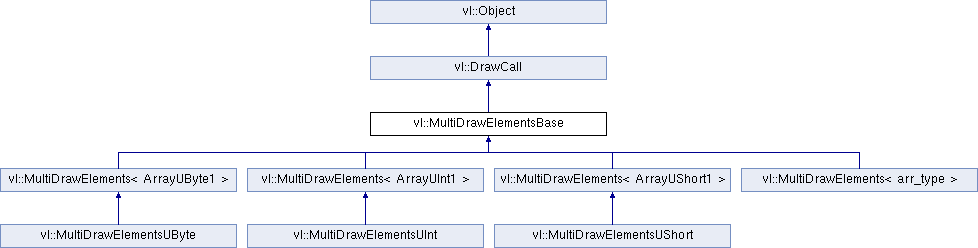

Inheritance diagram for vl::MultiDrawElementsBase:

Public Member Functions
virtual bool	primitiveRestartEnabled () const
	Returns whether the primitive-restart functionality is enabled or not. More...

void	setPrimitiveRestartEnabled (bool enabled)
	Enables the primitive-restart functionality. More...

void	finalizeSetup ()
	Calls computePointerVector(), computeBufferObjectPointerVector() and resizes the base vertex array to fit the count vector. More...

void	setCountVector (const std::vector< GLsizei > &vcount)
	Sets the vector defining the length of each primitive and automatically computes the pointer vectors used to exectue glMultiDrawElements(). More...

void	setCountVector (const GLsizei *vcount, size_t size)
	Sets the vector defining the length of each primitive and automatically computes the pointer vectors used to exectue glMultiDrawElements(). More...

const std::vector< GLsizei > &	countVector () const
	The count vector used as 'count' parameter of glMultiDrawElements. More...

std::vector< GLsizei > &	countVector ()
	The count vector used as 'count' parameter of glMultiDrawElements. More...

void	setBaseVertices (const std::vector< GLint > &base_verts)
	Returns the list of base vertices, one for each primitive. More...

const std::vector< GLint > &	baseVertices () const
	Returns the list of base vertices, one for each primitive. More...

std::vector< GLint > &	baseVertices ()
	Returns the list of base vertices, one for each primitive. More...

virtual void	computePointerVector ()=0
	Computes the pointer vector to be used when BufferObjects are DISABLED. More...

virtual void	computeBufferObjectPointerVector ()=0
	Computes the pointer vector to be used when BufferObjects are ENABLED. More...

Public Member Functions inherited from vl::DrawCall
	DrawCall ()
	Constructor. More...

DrawCall &	operator= (const DrawCall &other)
	Assignment operator. More...

void	setPrimitiveType (EPrimitiveType type)
	Sets the draw call's primitive type. More...

EPrimitiveType	primitiveType () const
	Returns the draw call's primitive type. More...

virtual void	render (bool use_bo=true) const =0
	Executes the draw call. More...

virtual ref< DrawCall >	clone () const =0
	Returns a clone of the draw call. More...

virtual void	updateDirtyBufferObject (EBufferObjectUpdateMode)=0
	Updates the index buffer's BufferObject if marked as dirty. More...

virtual void	deleteBufferObject ()=0
	Deletes the index buffer's BufferObject. More...

void	setEnabled (bool enable)
	Enables/disables the draw call. More...

bool	isEnabled () const
	True if the draw call is enabled. More...

virtual TriangleIterator	triangleIterator () const =0
	Returns a TriangleIterator used to iterate through the triangles of a DrawCall. More...

virtual IndexIterator	indexIterator () const =0
	Returns a IndexIterator used to iterate through the virtual indices of a DrawCall. More...

u32	countIndices () const
	Counts the number of virtual indices of a DrawCall., i.e. More...

u32	countTriangles () const
	Counts the number of virtual triangles of a DrawCall., i.e. More...

virtual int	instances () const
	Returns the number of instances for this set of primitives. More...

virtual unsigned int	primitiveRestartIndex ()
	Returns the primitive restart index used by the draw call or 0 if primitive restart is not supported. More...

void	setPatchParameter (PatchParameter *patch_param)
	Attach a PatchParameter to a DrawCall to be used when using primitive-type PT_PATCHES. More...

PatchParameter *	patchParameter ()
	The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES. More...

const PatchParameter *	patchParameter () const
	The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES. More...

Public Member Functions inherited from vl::Object
	Object ()
	Constructor. More...

	Object (const Object &other)
	Copy constructor: copies the name, ref count mutex and user data. More...

Object &	operator= (const Object &other)
	Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string &	objectName () const
	The name of the object, by default set to the object's class name. More...

void	setObjectName (const char *name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setObjectName (const std::string &name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setRefCountMutex (IMutex *mutex)
	The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutex *	refCountMutex ()
	The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutex *	refCountMutex () const
	The mutex used to protect the reference counting of an Object across multiple threads. More...

int	referenceCount () const
	Returns the number of references of an object. More...

void	incReference () const
	Increments the reference count of an object. More...

void	decReference ()
	Decrements the reference count of an object and deletes it if both automaticDelete() is `true` the count reaches 0. More...

void	setAutomaticDelete (bool autodel_on)
	If set to true the Object is deleted when its reference count reaches 0. More...

bool	automaticDelete () const
	If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T *	as ()
	Casts an Object to the specified class. More...

template<class T >
const T *	as () const
	Casts an Object to the specified class. More...

Protected Attributes
bool	mPrimitiveRestartEnabled

std::vector< GLsizei >	mCountVector

std::vector< GLint >	mBaseVertices

Protected Attributes inherited from vl::DrawCall
ref< PatchParameter >	mPatchParameter

EPrimitiveType	mType

bool	mEnabled

Protected Attributes inherited from vl::Object
std::string	mObjectName

IMutex *	mRefCountMutex

int	mReferenceCount

bool	mAutomaticDelete

Additional Inherited Members
Protected Member Functions inherited from vl::DrawCall
void	applyPatchParameters () const

Protected Member Functions inherited from vl::Object
virtual	~Object ()

Detailed Description

Base interface for all MultiDrawElements* sub classes.

Implements the index-type-independent interface of the class. That is you can cast to MultiDrawElementsBase* and access its members without needing to know whether the actual class is a vl::MultiDrawElementsUInt, vl::MultiDrawElementsUShort or vl::MultiDrawElementsUByte.

Definition at line 52 of file MultiDrawElements.hpp.

Member Function Documentation

◆ baseVertices() [1/2]

const std::vector<GLint>& vl::MultiDrawElementsBase::baseVertices ( ) const

inline

Returns the list of base vertices, one for each primitive.

Definition at line 105 of file MultiDrawElements.hpp.

References mBaseVertices.

Referenced by vlX::VLXClassWrapper_DrawCall::exportDrawCall(), vlX::VLXClassWrapper_DrawCall::importDrawCall(), vl::MultiDrawElements< ArrayUShort1 >::render(), and vl::Geometry::shrinkDrawCalls().

◆ baseVertices() [2/2]

std::vector<GLint>& vl::MultiDrawElementsBase::baseVertices ( )

inline

Returns the list of base vertices, one for each primitive.

Definition at line 108 of file MultiDrawElements.hpp.

References computeBufferObjectPointerVector(), computePointerVector(), and mBaseVertices.

◆ computeBufferObjectPointerVector()

virtual void vl::MultiDrawElementsBase::computeBufferObjectPointerVector ( )

pure virtual

Computes the pointer vector to be used when BufferObjects are ENABLED.

Call this function after having updated the count vector and the index buffer indexBuffer().

Note: Normally you don't need to call this function as setCountVector() already calls it.

Implemented in vl::MultiDrawElements< arr_type >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, and vl::MultiDrawElements< ArrayUShort1 >.

Referenced by baseVertices(), finalizeSetup(), and vlX::VLXClassWrapper_DrawCall::importDrawCall().

◆ computePointerVector()

virtual void vl::MultiDrawElementsBase::computePointerVector ( )

pure virtual

Computes the pointer vector to be used when BufferObjects are DISABLED.

Call this function after having updated the count vector and the index buffer indexBuffer().

Note: Normally you don't need to call this function as setCountVector() already calls it.

Implemented in vl::MultiDrawElements< arr_type >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, and vl::MultiDrawElements< ArrayUShort1 >.

Referenced by baseVertices(), finalizeSetup(), and vlX::VLXClassWrapper_DrawCall::importDrawCall().

◆ countVector() [1/2]

const std::vector<GLsizei>& vl::MultiDrawElementsBase::countVector ( ) const

inline

The count vector used as 'count' parameter of glMultiDrawElements.

Definition at line 94 of file MultiDrawElements.hpp.

References mCountVector.

Referenced by vlX::VLXClassWrapper_DrawCall::exportDrawCall(), vlX::VLXClassWrapper_DrawCall::importDrawCall(), vl::MultiDrawElements< ArrayUShort1 >::render(), and vl::Geometry::shrinkDrawCalls().

◆ countVector() [2/2]

std::vector<GLsizei>& vl::MultiDrawElementsBase::countVector ( )

inline

The count vector used as 'count' parameter of glMultiDrawElements.

Definition at line 97 of file MultiDrawElements.hpp.

References mCountVector.

◆ finalizeSetup()

void vl::MultiDrawElementsBase::finalizeSetup ( )

inline

Calls computePointerVector(), computeBufferObjectPointerVector() and resizes the base vertex array to fit the count vector.

Note: Must be called after the index buffer has been filled.

Definition at line 65 of file MultiDrawElements.hpp.

References computeBufferObjectPointerVector(), computePointerVector(), mBaseVertices, and mCountVector.

Referenced by setCountVector().

◆ primitiveRestartEnabled()

virtual bool vl::MultiDrawElementsBase::primitiveRestartEnabled ( ) const

inlinevirtual

Returns whether the primitive-restart functionality is enabled or not.

See http://www.opengl.org/registry/specs/NV/primitive_restart.txt

Reimplemented from vl::DrawCall.

Definition at line 58 of file MultiDrawElements.hpp.

References mPrimitiveRestartEnabled.

Referenced by vlX::VLXClassWrapper_DrawCall::exportDrawCall(), vl::MultiDrawElements< ArrayUShort1 >::render(), and vl::MultiDrawElements< ArrayUShort1 >::triangleIterator().

◆ setBaseVertices()

void vl::MultiDrawElementsBase::setBaseVertices ( const std::vector< GLint > & base_verts )

inline

Returns the list of base vertices, one for each primitive.

This will enable the use of glMultiDrawElementsBaseVertex() to render a set of primitives. See also http://www.opengl.org/sdk/docs/man3/xhtml/glMultiDrawElementsBaseVertex.xml

Definition at line 102 of file MultiDrawElements.hpp.

References mBaseVertices.

Referenced by vl::Geometry::shrinkDrawCalls().

◆ setCountVector() [1/2]

void vl::MultiDrawElementsBase::setCountVector ( const std::vector< GLsizei > & vcount )

inline

Sets the vector defining the length of each primitive and automatically computes the pointer vectors used to exectue glMultiDrawElements().

Note: Must be called after the index buffer has been filled.

Definition at line 77 of file MultiDrawElements.hpp.

References finalizeSetup(), and mCountVector.

Referenced by vl::DaeLoader::generateGeometry(), vl::Geometry::mergeDrawCallsWithMultiDrawElements(), vl::MultiDrawElements< ArrayUShort1 >::operator=(), and vl::Geometry::shrinkDrawCalls().

◆ setCountVector() [2/2]

void vl::MultiDrawElementsBase::setCountVector	(	const GLsizei *	vcount,
		size_t	size
	)

inline

Sets the vector defining the length of each primitive and automatically computes the pointer vectors used to exectue glMultiDrawElements().

Note: Must be called after the index buffer has been filled.

Definition at line 85 of file MultiDrawElements.hpp.

References finalizeSetup(), and mCountVector.

◆ setPrimitiveRestartEnabled()

void vl::MultiDrawElementsBase::setPrimitiveRestartEnabled ( bool enabled )

inline

Enables the primitive-restart functionality.

See http://www.opengl.org/registry/specs/NV/primitive_restart.txt

Definition at line 61 of file MultiDrawElements.hpp.

References mPrimitiveRestartEnabled.

Referenced by vlX::VLXClassWrapper_DrawCall::importDrawCall(), and vl::Geometry::shrinkDrawCalls().

Member Data Documentation

◆ mBaseVertices

std::vector<GLint> vl::MultiDrawElementsBase::mBaseVertices

protected

Definition at line 121 of file MultiDrawElements.hpp.

Referenced by baseVertices(), finalizeSetup(), vl::MultiDrawElements< ArrayUShort1 >::indexIterator(), vl::MultiDrawElements< ArrayUShort1 >::render(), setBaseVertices(), and vl::MultiDrawElements< ArrayUShort1 >::triangleIterator().

◆ mCountVector

std::vector<GLsizei> vl::MultiDrawElementsBase::mCountVector

protected

Definition at line 120 of file MultiDrawElements.hpp.

Referenced by vl::MultiDrawElements< ArrayUShort1 >::computePointerVector(), countVector(), finalizeSetup(), vl::MultiDrawElements< ArrayUShort1 >::indexIterator(), vl::MultiDrawElements< ArrayUShort1 >::operator=(), vl::MultiDrawElements< ArrayUShort1 >::render(), setCountVector(), and vl::MultiDrawElements< ArrayUShort1 >::triangleIterator().

◆ mPrimitiveRestartEnabled

bool vl::MultiDrawElementsBase::mPrimitiveRestartEnabled

protected

Definition at line 119 of file MultiDrawElements.hpp.

Referenced by vl::MultiDrawElements< ArrayUShort1 >::indexIterator(), vl::MultiDrawElements< ArrayUShort1 >::MultiDrawElements(), vl::MultiDrawElements< ArrayUShort1 >::operator=(), primitiveRestartEnabled(), and setPrimitiveRestartEnabled().

The documentation for this class was generated from the following file:

C:/git/VL/src/vlGraphics/MultiDrawElements.hpp

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ baseVertices() [1/2]

◆ baseVertices() [2/2]

◆ computeBufferObjectPointerVector()

◆ computePointerVector()

◆ countVector() [1/2]

◆ countVector() [2/2]

◆ finalizeSetup()

◆ primitiveRestartEnabled()

◆ setBaseVertices()

◆ setCountVector() [1/2]

◆ setCountVector() [2/2]

◆ setPrimitiveRestartEnabled()

Member Data Documentation

◆ mBaseVertices

◆ mCountVector

◆ mPrimitiveRestartEnabled
