The base class of DrawArrays, DrawElements, MultiDrawElements and DrawRangeElements. More...

#include <DrawCall.hpp>

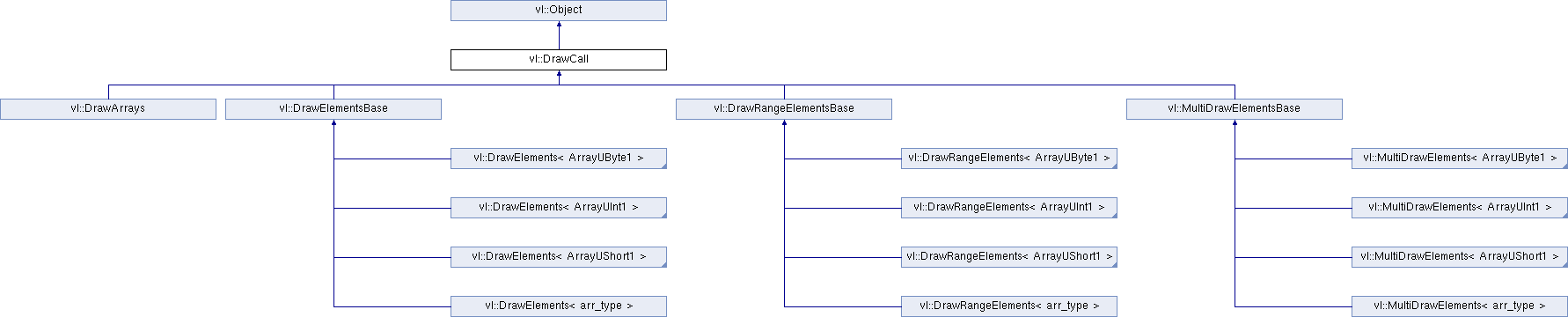

Inheritance diagram for vl::DrawCall:

Public Member Functions
	DrawCall ()
	Constructor. More...

DrawCall &	operator= (const DrawCall &other)
	Assignment operator. More...

void	setPrimitiveType (EPrimitiveType type)
	Sets the draw call's primitive type. More...

EPrimitiveType	primitiveType () const
	Returns the draw call's primitive type. More...

virtual void	render (bool use_bo=true) const =0
	Executes the draw call. More...

virtual ref< DrawCall >	clone () const =0
	Returns a clone of the draw call. More...

virtual void	updateDirtyBufferObject (EBufferObjectUpdateMode)=0
	Updates the index buffer's BufferObject if marked as dirty. More...

virtual void	deleteBufferObject ()=0
	Deletes the index buffer's BufferObject. More...

void	setEnabled (bool enable)
	Enables/disables the draw call. More...

bool	isEnabled () const
	True if the draw call is enabled. More...

virtual TriangleIterator	triangleIterator () const =0
	Returns a TriangleIterator used to iterate through the triangles of a DrawCall. More...

virtual IndexIterator	indexIterator () const =0
	Returns a IndexIterator used to iterate through the virtual indices of a DrawCall. More...

u32	countIndices () const
	Counts the number of virtual indices of a DrawCall., i.e. More...

u32	countTriangles () const
	Counts the number of virtual triangles of a DrawCall., i.e. More...

virtual int	instances () const
	Returns the number of instances for this set of primitives. More...

virtual bool	primitiveRestartEnabled () const
	Returns whether the primitive-restart functionality is enabled or not. More...

virtual unsigned int	primitiveRestartIndex ()
	Returns the primitive restart index used by the draw call or 0 if primitive restart is not supported. More...

void	setPatchParameter (PatchParameter *patch_param)
	Attach a PatchParameter to a DrawCall to be used when using primitive-type PT_PATCHES. More...

PatchParameter *	patchParameter ()
	The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES. More...

const PatchParameter *	patchParameter () const
	The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES. More...

Public Member Functions inherited from vl::Object
	Object ()
	Constructor. More...

	Object (const Object &other)
	Copy constructor: copies the name, ref count mutex and user data. More...

Object &	operator= (const Object &other)
	Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string &	objectName () const
	The name of the object, by default set to the object's class name. More...

void	setObjectName (const char *name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setObjectName (const std::string &name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setRefCountMutex (IMutex *mutex)
	The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutex *	refCountMutex ()
	The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutex *	refCountMutex () const
	The mutex used to protect the reference counting of an Object across multiple threads. More...

int	referenceCount () const
	Returns the number of references of an object. More...

void	incReference () const
	Increments the reference count of an object. More...

void	decReference ()
	Decrements the reference count of an object and deletes it if both automaticDelete() is `true` the count reaches 0. More...

void	setAutomaticDelete (bool autodel_on)
	If set to true the Object is deleted when its reference count reaches 0. More...

bool	automaticDelete () const
	If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T *	as ()
	Casts an Object to the specified class. More...

template<class T >
const T *	as () const
	Casts an Object to the specified class. More...

Protected Member Functions
void	applyPatchParameters () const

Protected Member Functions inherited from vl::Object
virtual	~Object ()

Protected Attributes
ref< PatchParameter >	mPatchParameter

EPrimitiveType	mType

bool	mEnabled

Protected Attributes inherited from vl::Object
std::string	mObjectName

IMutex *	mRefCountMutex

int	mReferenceCount

bool	mAutomaticDelete

Detailed Description

The base class of DrawArrays, DrawElements, MultiDrawElements and DrawRangeElements.

which are used by Geometry to define a set of primitives to be rendered (see also Geometry::drawCalls()).

Overview

vl::DrawArrays wraps:

glDrawArrays (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawArrays.xml)
glDrawArraysInstanced (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawArraysInstanced.xml)

Supports:

Multi instancing: YES
Base vertex: N/A
Primitive restart: N/A

vl::DrawElements wraps:

glDrawElements (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawElements.xml)
glDrawElementsInstanced (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawElementsInstanced.xml)
glDrawElementsBaseVertex (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawElementsBaseVertex.xml)
glDrawElementsInstancedBaseVertex (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawElementsInstancedBaseVertex.xml)

Supports:

Multi instancing: YES
Base vertex: YES
Primitive restart: YES

vl::DrawRangeElements wraps:

glDrawRangeElements (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawRangeElements.xml)
glDrawRangeElementsBaseVertex (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawRangeElementsBaseVertex.xml)

Supports:

Multi instancing: NO
Base vertex: YES
Primitive restart: YES

vl::MultiDrawElements wraps:

glMultiDrawElements (http://www.opengl.org/sdk/docs/man4/xhtml/glMultiDrawElements.xml)
glMultiDrawElementsBaseVertex (http://www.opengl.org/sdk/docs/man4/xhtml/glMultiDrawElementsBaseVertex.xml)

Supports:

Multi instancing: NO
Base vertex: YES
Primitive restart: YES

DrawArrays, DrawElements, MultiDrawElements and DrawRangeElements are used by Geometry to define a set of primitives to be rendered.

See also: Geometry::drawCalls(), DrawCall, DrawElements, MultiDrawElements, DrawRangeElements, Geometry, Actor

Definition at line 90 of file DrawCall.hpp.

Constructor & Destructor Documentation

◆ DrawCall()

vl::DrawCall::DrawCall ( )

inline

Constructor.

Definition at line 96 of file DrawCall.hpp.

Member Function Documentation

◆ applyPatchParameters()

void vl::DrawCall::applyPatchParameters ( ) const

inlineprotected

Definition at line 178 of file DrawCall.hpp.

References mPatchParameter, mType, vl::PT_PATCHES, and vl::Log::warning().

Referenced by vl::DrawArrays::render(), vl::MultiDrawElements< ArrayUShort1 >::render(), vl::DrawElements< ArrayUShort1 >::render(), and vl::DrawRangeElements< ArrayUShort1 >::render().

◆ clone()

virtual ref<DrawCall> vl::DrawCall::clone ( ) const

pure virtual

Returns a clone of the draw call.

Implemented in vl::DrawRangeElements< arr_type >, vl::DrawRangeElements< ArrayUInt1 >, vl::DrawRangeElements< ArrayUByte1 >, vl::DrawRangeElements< ArrayUShort1 >, vl::DrawElements< arr_type >, vl::DrawElements< ArrayUInt1 >, vl::DrawElements< ArrayUByte1 >, vl::DrawElements< ArrayUShort1 >, vl::MultiDrawElements< arr_type >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, vl::MultiDrawElements< ArrayUShort1 >, and vl::DrawArrays.

Referenced by primitiveType().

◆ countIndices()

u32 vl::DrawCall::countIndices ( ) const

inline

Counts the number of virtual indices of a DrawCall., i.e.

the number of indices you would retrieve by iterating over the iterator returned by indexIterator().

Definition at line 142 of file DrawCall.hpp.

References vl::IndexIterator::hasNext(), and indexIterator().

Referenced by vl::AdjacencyExtractor::extract().

◆ countTriangles()

u32 vl::DrawCall::countTriangles ( ) const

inline

Counts the number of virtual triangles of a DrawCall., i.e.

the number of triangles you would retrieve by iterating over the iterator returned by triangleIterator().

Definition at line 151 of file DrawCall.hpp.

References vl::TriangleIterator::hasNext(), and triangleIterator().

Referenced by vl::Geometry::fixTriangleWinding(), vl::Geometry::mergeDrawCallsWithTriangles(), and vl::Geometry::triangulateDrawCalls().

◆ deleteBufferObject()

virtual void vl::DrawCall::deleteBufferObject ( )

pure virtual

Deletes the index buffer's BufferObject.

Implemented in vl::DrawRangeElements< arr_type >, vl::DrawRangeElements< ArrayUInt1 >, vl::DrawRangeElements< ArrayUByte1 >, vl::DrawRangeElements< ArrayUShort1 >, vl::DrawElements< arr_type >, vl::DrawElements< ArrayUInt1 >, vl::DrawElements< ArrayUByte1 >, vl::DrawElements< ArrayUShort1 >, vl::MultiDrawElements< arr_type >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, vl::MultiDrawElements< ArrayUShort1 >, and vl::DrawArrays.

Referenced by primitiveType().

◆ indexIterator()

virtual IndexIterator vl::DrawCall::indexIterator ( ) const

pure virtual

Returns a IndexIterator used to iterate through the virtual indices of a DrawCall.

This

Note: The returned indices already take into account primitive restart and base vertex.

Implemented in vl::DrawElements< arr_type >, vl::DrawElements< ArrayUInt1 >, vl::DrawElements< ArrayUByte1 >, vl::DrawElements< ArrayUShort1 >, vl::DrawRangeElements< arr_type >, vl::DrawRangeElements< ArrayUInt1 >, vl::DrawRangeElements< ArrayUByte1 >, vl::DrawRangeElements< ArrayUShort1 >, vl::MultiDrawElements< arr_type >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, vl::MultiDrawElements< ArrayUShort1 >, and vl::DrawArrays.

Referenced by vl::DrawRangeElements< ArrayUShort1 >::computeRange(), countIndices(), isEnabled(), and vl::Geometry::shrinkDrawCalls().

◆ instances()

virtual int vl::DrawCall::instances ( ) const

inlinevirtual

Returns the number of instances for this set of primitives.

Reimplemented in vl::DrawArrays, and vl::DrawElementsBase.

Definition at line 160 of file DrawCall.hpp.

Referenced by vl::Geometry::shrinkDrawCalls(), and vl::Geometry::triangulateDrawCalls().

◆ isEnabled()

bool vl::DrawCall::isEnabled ( ) const

inline

True if the draw call is enabled.

Definition at line 128 of file DrawCall.hpp.

References indexIterator(), mEnabled, and triangleIterator().

Referenced by vlX::VLXClassWrapper_DrawCall::exportDrawCallBase().

◆ operator=()

DrawCall& vl::DrawCall::operator= ( const DrawCall & other )

inline

Assignment operator.

Definition at line 99 of file DrawCall.hpp.

References mEnabled, and mType.

◆ patchParameter() [1/2]

PatchParameter* vl::DrawCall::patchParameter ( )

inline

The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES.

Definition at line 172 of file DrawCall.hpp.

References mPatchParameter.

Referenced by vlX::VLXClassWrapper_DrawCall::exportDrawCallBase().

◆ patchParameter() [2/2]

const PatchParameter* vl::DrawCall::patchParameter ( ) const

inline

The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES.

Definition at line 175 of file DrawCall.hpp.

References mPatchParameter.

◆ primitiveRestartEnabled()

virtual bool vl::DrawCall::primitiveRestartEnabled ( ) const

inlinevirtual

Returns whether the primitive-restart functionality is enabled or not.

See http://www.opengl.org/registry/specs/NV/primitive_restart.txt

Reimplemented in vl::DrawRangeElementsBase, vl::DrawElementsBase, and vl::MultiDrawElementsBase.

Definition at line 163 of file DrawCall.hpp.

Referenced by vl::Geometry::shrinkDrawCalls(), and vl::Geometry::sortVertices().

◆ primitiveRestartIndex()

virtual unsigned int vl::DrawCall::primitiveRestartIndex ( )

inlinevirtual

Returns the primitive restart index used by the draw call or 0 if primitive restart is not supported.

Reimplemented in vl::MultiDrawElements< arr_type >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, vl::MultiDrawElements< ArrayUShort1 >, vl::DrawRangeElements< arr_type >, vl::DrawRangeElements< ArrayUInt1 >, vl::DrawRangeElements< ArrayUByte1 >, vl::DrawRangeElements< ArrayUShort1 >, vl::DrawElements< arr_type >, vl::DrawElements< ArrayUInt1 >, vl::DrawElements< ArrayUByte1 >, and vl::DrawElements< ArrayUShort1 >.

Definition at line 166 of file DrawCall.hpp.

Referenced by vl::Geometry::shrinkDrawCalls().

◆ primitiveType()

EPrimitiveType vl::DrawCall::primitiveType ( ) const

inline

Returns the draw call's primitive type.

Definition at line 110 of file DrawCall.hpp.

References clone(), deleteBufferObject(), mType, render(), and updateDirtyBufferObject().

Referenced by vl::DrawArrays::clone(), vlX::VLXClassWrapper_DrawCall::exportDrawCallBase(), vl::AdjacencyExtractor::extract(), vl::Geometry::fixTriangleWinding(), vlX::VLXClassWrapper_DrawCall::importDrawCall(), vl::Geometry::makeGLESFriendly(), vl::Geometry::mergeDrawCallsWithTriangles(), vl::Geometry::mergeTriangleStrips(), vl::DrawArrays::render(), vl::MultiDrawElements< ArrayUShort1 >::render(), vl::DrawElements< ArrayUShort1 >::render(), vl::DrawRangeElements< ArrayUShort1 >::render(), vl::Geometry::shrinkDrawCalls(), vl::Geometry::sortVertices(), vl::DrawArrays::triangleIterator(), vl::MultiDrawElements< ArrayUShort1 >::triangleIterator(), vl::DrawRangeElements< ArrayUShort1 >::triangleIterator(), vl::DrawElements< ArrayUShort1 >::triangleIterator(), and vl::Geometry::triangulateDrawCalls().

◆ render()

virtual void vl::DrawCall::render ( bool use_bo = true ) const

pure virtual

Executes the draw call.

Implemented in vl::DrawRangeElements< arr_type >, vl::DrawRangeElements< ArrayUInt1 >, vl::DrawRangeElements< ArrayUByte1 >, vl::DrawRangeElements< ArrayUShort1 >, vl::DrawElements< arr_type >, vl::DrawElements< ArrayUInt1 >, vl::DrawElements< ArrayUByte1 >, vl::DrawElements< ArrayUShort1 >, vl::MultiDrawElements< arr_type >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, vl::MultiDrawElements< ArrayUShort1 >, and vl::DrawArrays.

Referenced by primitiveType().

◆ setEnabled()

void vl::DrawCall::setEnabled ( bool enable )

inline

Enables/disables the draw call.

Definition at line 125 of file DrawCall.hpp.

References mEnabled.

Referenced by vlX::VLXClassWrapper_DrawCall::importDrawCall(), and vl::Geometry::makeGLESFriendly().

◆ setPatchParameter()

void vl::DrawCall::setPatchParameter ( PatchParameter * patch_param )

inline

Attach a PatchParameter to a DrawCall to be used when using primitive-type PT_PATCHES.

Definition at line 169 of file DrawCall.hpp.

References mPatchParameter.

◆ setPrimitiveType()

void vl::DrawCall::setPrimitiveType ( EPrimitiveType type )

inline

Sets the draw call's primitive type.

Definition at line 107 of file DrawCall.hpp.

References mType.

Referenced by vlX::VLXClassWrapper_DrawCall::importDrawCall().

◆ triangleIterator()

virtual TriangleIterator vl::DrawCall::triangleIterator ( ) const

pure virtual

Returns a TriangleIterator used to iterate through the triangles of a DrawCall.

Basically the iterator tesselates in triangles any DrawCall of type: PT_TRIANGLES, PT_TRIANGLE_STRIP PT_TRIANGLE_FAN, PT_POLYGON, PT_QUADS, PT_QUAD_STRIP.

Implemented in vl::DrawElements< arr_type >, vl::DrawElements< ArrayUInt1 >, vl::DrawElements< ArrayUByte1 >, vl::DrawElements< ArrayUShort1 >, vl::DrawRangeElements< arr_type >, vl::DrawRangeElements< ArrayUInt1 >, vl::DrawRangeElements< ArrayUByte1 >, vl::DrawRangeElements< ArrayUShort1 >, vl::MultiDrawElements< arr_type >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, vl::MultiDrawElements< ArrayUShort1 >, and vl::DrawArrays.

Referenced by vl::Geometry::computeTangentSpace(), countTriangles(), vl::AdjacencyExtractor::extract(), vl::EdgeExtractor::extractEdges(), vl::RayIntersector::intersectGeometry(), isEnabled(), vl::MultiDrawElements< ArrayUShort1 >::render(), vl::PolygonSimplifier::simplify(), and vl::Geometry::triangulateDrawCalls().

◆ updateDirtyBufferObject()

virtual void vl::DrawCall::updateDirtyBufferObject ( EBufferObjectUpdateMode )

pure virtual

Updates the index buffer's BufferObject if marked as dirty.

Implemented in vl::DrawRangeElements< arr_type >, vl::DrawRangeElements< ArrayUInt1 >, vl::DrawRangeElements< ArrayUByte1 >, vl::DrawRangeElements< ArrayUShort1 >, vl::DrawElements< arr_type >, vl::DrawElements< ArrayUInt1 >, vl::DrawElements< ArrayUByte1 >, vl::DrawElements< ArrayUShort1 >, vl::MultiDrawElements< arr_type >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, vl::MultiDrawElements< ArrayUShort1 >, and vl::DrawArrays.

Referenced by primitiveType().

Member Data Documentation

◆ mEnabled

bool vl::DrawCall::mEnabled

protected

Definition at line 197 of file DrawCall.hpp.

Referenced by isEnabled(), operator=(), and setEnabled().

◆ mPatchParameter

ref<PatchParameter> vl::DrawCall::mPatchParameter

protected

Definition at line 195 of file DrawCall.hpp.

Referenced by applyPatchParameters(), patchParameter(), and setPatchParameter().

◆ mType

EPrimitiveType vl::DrawCall::mType

protected

Definition at line 196 of file DrawCall.hpp.

Referenced by applyPatchParameters(), vl::DrawArrays::DrawArrays(), vl::DrawElements< ArrayUShort1 >::DrawElements(), vl::DrawRangeElements< ArrayUShort1 >::DrawRangeElements(), vl::MultiDrawElements< ArrayUShort1 >::MultiDrawElements(), operator=(), primitiveType(), and setPrimitiveType().

The documentation for this class was generated from the following file:

C:/git/VL/src/vlGraphics/DrawCall.hpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DrawCall()

Member Function Documentation

◆ applyPatchParameters()

◆ clone()

◆ countIndices()

◆ countTriangles()

◆ deleteBufferObject()

◆ indexIterator()

◆ instances()

◆ isEnabled()

◆ operator=()

◆ patchParameter() [1/2]

◆ patchParameter() [2/2]

◆ primitiveRestartEnabled()

◆ primitiveRestartIndex()

◆ primitiveType()

◆ render()

◆ setEnabled()

◆ setPatchParameter()

◆ setPrimitiveType()

◆ triangleIterator()

◆ updateDirtyBufferObject()

Member Data Documentation

◆ mEnabled

◆ mPatchParameter

◆ mType
