vl::DrawElementsBase Class Reference

Base interface for all DrawElements* sub classes. More...

#include <DrawElements.hpp>

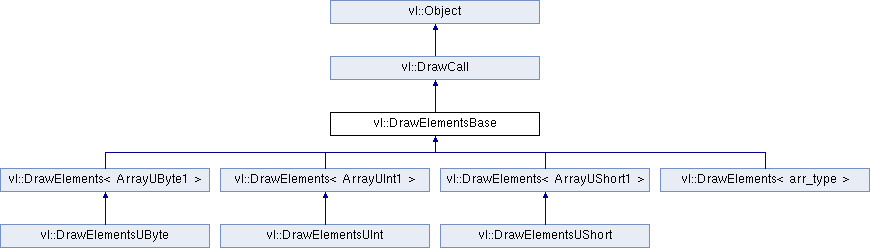

+ Inheritance diagram for vl::DrawElementsBase:

Public Member Functions

virtual bool primitiveRestartEnabled () const
 Returns whether the primitive-restart functionality is enabled or not (requires OpenGL 3.1). More...

void setPrimitiveRestartEnabled (bool enabled)
 Enables the primitive-restart functionality (requires OpenGL 3.1). More...

void setInstances (int instances)
 Sets the number of instances for this set of primitives. More...

int instances () const
 Returns the number of instances for this set of primitives. More...

void setBaseVertex (int base_vertex)
 If base_vertx is != 0 glDrawElementsBaseVertex/glDrawElementsInstancedBaseVertex will be used instead of their non *BaseVertx counterparts. More...

int baseVertex () const
 Returns the currently used base vertex. More...

- Public Member Functions inherited from vl::DrawCall
 DrawCall ()
 Constructor. More...

DrawCalloperator= (const DrawCall &other)
 Assignment operator. More...

void setPrimitiveType (EPrimitiveType type)
 Sets the draw call's primitive type. More...

EPrimitiveType primitiveType () const
 Returns the draw call's primitive type. More...

virtual void render (bool use_bo=true) const =0
 Executes the draw call. More...

virtual ref< DrawCallclone () const =0
 Returns a clone of the draw call. More...

virtual void updateDirtyBufferObject (EBufferObjectUpdateMode)=0
 Updates the index buffer's BufferObject if marked as dirty. More...

virtual void deleteBufferObject ()=0
 Deletes the index buffer's BufferObject. More...

void setEnabled (bool enable)
 Enables/disables the draw call. More...

bool isEnabled () const
 True if the draw call is enabled. More...

virtual TriangleIterator triangleIterator () const =0
 Returns a TriangleIterator used to iterate through the triangles of a DrawCall. More...

virtual IndexIterator indexIterator () const =0
 Returns a IndexIterator used to iterate through the virtual indices of a DrawCall. More...

u32 countIndices () const
 Counts the number of virtual indices of a DrawCall., i.e. More...

u32 countTriangles () const
 Counts the number of virtual triangles of a DrawCall., i.e. More...

virtual unsigned int primitiveRestartIndex ()
 Returns the primitive restart index used by the draw call or 0 if primitive restart is not supported. More...

void setPatchParameter (PatchParameter *patch_param)
 Attach a PatchParameter to a DrawCall to be used when using primitive-type PT_PATCHES. More...

PatchParameterpatchParameter ()
 The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES. More...

const PatchParameterpatchParameter () const
 The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES. More...

- Public Member Functions inherited from vl::Object
 Object ()
 Constructor. More...

 Object (const Object &other)
 Copy constructor: copies the name, ref count mutex and user data. More...

Objectoperator= (const Object &other)
 Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string & objectName () const
 The name of the object, by default set to the object's class name. More...

void setObjectName (const char *name)
 The name of the object, by default set to the object's class name in debug builds. More...

void setObjectName (const std::string &name)
 The name of the object, by default set to the object's class name in debug builds. More...

void setRefCountMutex (IMutex *mutex)
 The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutexrefCountMutex ()
 The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutexrefCountMutex () const
 The mutex used to protect the reference counting of an Object across multiple threads. More...

int referenceCount () const
 Returns the number of references of an object. More...

void incReference () const
 Increments the reference count of an object. More...

void decReference ()
 Decrements the reference count of an object and deletes it if both automaticDelete() is true the count reaches 0. More...

void setAutomaticDelete (bool autodel_on)
 If set to true the Object is deleted when its reference count reaches 0. More...

bool automaticDelete () const
 If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T * as ()
 Casts an Object to the specified class. More...

template<class T >
const T * as () const
 Casts an Object to the specified class. More...


Protected Attributes

int mInstances

bool mPrimitiveRestartEnabled

GLuint mBaseVertex

- Protected Attributes inherited from vl::DrawCall
ref< PatchParametermPatchParameter

EPrimitiveType mType

bool mEnabled

- Protected Attributes inherited from vl::Object
std::string mObjectName

IMutexmRefCountMutex

int mReferenceCount

bool mAutomaticDelete


Additional Inherited Members

- Protected Member Functions inherited from vl::DrawCall
void applyPatchParameters () const

- Protected Member Functions inherited from vl::Object
virtual ~Object ()


Detailed Description

Base interface for all DrawElements* sub classes.

Implements the index-type-independent interface of the class. That is you can cast to DrawElementsBase* and access its members without needing to know whether the actual class is a vl::DrawElementsUInt, vl::DrawElementsUShort or vl::DrawElementsUByte.

Definition at line 53 of file DrawElements.hpp.

Member Function Documentation

◆ baseVertex()

int vl::DrawElementsBase::baseVertex ( ) const
inline

◆ instances()

int vl::DrawElementsBase::instances ( ) const
inlinevirtual

Returns the number of instances for this set of primitives.

Reimplemented from vl::DrawCall.

Definition at line 68 of file DrawElements.hpp.

References mInstances.

Referenced by vl::DrawElements< ArrayUShort1 >::DrawElements(), vlX::VLXClassWrapper_DrawCall::exportDrawCall(), vl::DrawElements< ArrayUShort1 >::render(), setInstances(), and vl::Geometry::sortVertices().

◆ primitiveRestartEnabled()

virtual bool vl::DrawElementsBase::primitiveRestartEnabled ( ) const
inlinevirtual

Returns whether the primitive-restart functionality is enabled or not (requires OpenGL 3.1).

See http://www.opengl.org/sdk/docs/man3/xhtml/glPrimitiveRestartIndex.xml

Reimplemented from vl::DrawCall.

Definition at line 59 of file DrawElements.hpp.

References mPrimitiveRestartEnabled.

Referenced by vlX::VLXClassWrapper_DrawCall::exportDrawCall(), vl::DrawElements< ArrayUShort1 >::render(), and vl::DrawElements< ArrayUShort1 >::triangleIterator().

◆ setBaseVertex()

void vl::DrawElementsBase::setBaseVertex ( int  base_vertex)
inline

If base_vertx is != 0 glDrawElementsBaseVertex/glDrawElementsInstancedBaseVertex will be used instead of their non *BaseVertx counterparts.

Note that using base_vertx != requires OpenGL 3.2 or higher or ARB_draw_elements_base_vertex. For more information see also http://www.opengl.org/sdk/docs/man3/xhtml/glDrawElementsBaseVertex.xml

Definition at line 74 of file DrawElements.hpp.

References mBaseVertex.

Referenced by vlX::VLXClassWrapper_DrawCall::importDrawCall(), and vl::Geometry::shrinkDrawCalls().

◆ setInstances()

void vl::DrawElementsBase::setInstances ( int  instances)
inline

Sets the number of instances for this set of primitives.

Definition at line 65 of file DrawElements.hpp.

References instances(), and mInstances.

Referenced by vlX::VLXClassWrapper_DrawCall::importDrawCall().

◆ setPrimitiveRestartEnabled()

void vl::DrawElementsBase::setPrimitiveRestartEnabled ( bool  enabled)
inline

Member Data Documentation

◆ mBaseVertex

GLuint vl::DrawElementsBase::mBaseVertex
protected

◆ mInstances

int vl::DrawElementsBase::mInstances
protected

◆ mPrimitiveRestartEnabled

bool vl::DrawElementsBase::mPrimitiveRestartEnabled
protected

The documentation for this class was generated from the following file:
