Base interface for all DrawRangeElements* sub classes. More...

#include <DrawRangeElements.hpp>

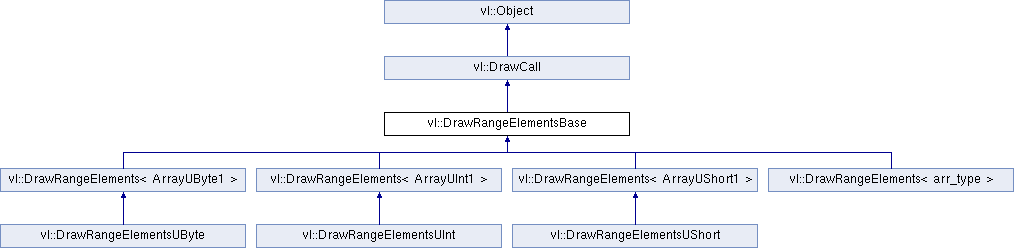

Inheritance diagram for vl::DrawRangeElementsBase:

Public Member Functions
void	setRangeStart (int rstart)
	Sets the range start. More...

int	rangeStart () const
	Returns the range start. More...

void	setRangeEnd (int rend)
	Sets the range end. More...

int	rangeEnd () const
	Returns the range end. More...

virtual bool	primitiveRestartEnabled () const
	Returns whether the primitive-restart functionality is enabled or not. More...

void	setPrimitiveRestartEnabled (bool enabled)
	Enables the primitive-restart functionality. More...

void	setBaseVertex (int base_vertex)
	If base_vertx is != 0 glDrawRangeElementsBaseVertex/glDrawRangeElementsInstancedBaseVertex will be used instead of their non *BaseVertx counterparts. More...

int	baseVertex () const
	Returns the currently used base vertex. More...

Public Member Functions inherited from vl::DrawCall
	DrawCall ()
	Constructor. More...

DrawCall &	operator= (const DrawCall &other)
	Assignment operator. More...

void	setPrimitiveType (EPrimitiveType type)
	Sets the draw call's primitive type. More...

EPrimitiveType	primitiveType () const
	Returns the draw call's primitive type. More...

virtual void	render (bool use_bo=true) const =0
	Executes the draw call. More...

virtual ref< DrawCall >	clone () const =0
	Returns a clone of the draw call. More...

virtual void	updateDirtyBufferObject (EBufferObjectUpdateMode)=0
	Updates the index buffer's BufferObject if marked as dirty. More...

virtual void	deleteBufferObject ()=0
	Deletes the index buffer's BufferObject. More...

void	setEnabled (bool enable)
	Enables/disables the draw call. More...

bool	isEnabled () const
	True if the draw call is enabled. More...

virtual TriangleIterator	triangleIterator () const =0
	Returns a TriangleIterator used to iterate through the triangles of a DrawCall. More...

virtual IndexIterator	indexIterator () const =0
	Returns a IndexIterator used to iterate through the virtual indices of a DrawCall. More...

u32	countIndices () const
	Counts the number of virtual indices of a DrawCall., i.e. More...

u32	countTriangles () const
	Counts the number of virtual triangles of a DrawCall., i.e. More...

virtual int	instances () const
	Returns the number of instances for this set of primitives. More...

virtual unsigned int	primitiveRestartIndex ()
	Returns the primitive restart index used by the draw call or 0 if primitive restart is not supported. More...

void	setPatchParameter (PatchParameter *patch_param)
	Attach a PatchParameter to a DrawCall to be used when using primitive-type PT_PATCHES. More...

PatchParameter *	patchParameter ()
	The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES. More...

const PatchParameter *	patchParameter () const
	The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES. More...

Public Member Functions inherited from vl::Object
	Object ()
	Constructor. More...

	Object (const Object &other)
	Copy constructor: copies the name, ref count mutex and user data. More...

Object &	operator= (const Object &other)
	Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string &	objectName () const
	The name of the object, by default set to the object's class name. More...

void	setObjectName (const char *name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setObjectName (const std::string &name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setRefCountMutex (IMutex *mutex)
	The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutex *	refCountMutex ()
	The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutex *	refCountMutex () const
	The mutex used to protect the reference counting of an Object across multiple threads. More...

int	referenceCount () const
	Returns the number of references of an object. More...

void	incReference () const
	Increments the reference count of an object. More...

void	decReference ()
	Decrements the reference count of an object and deletes it if both automaticDelete() is `true` the count reaches 0. More...

void	setAutomaticDelete (bool autodel_on)
	If set to true the Object is deleted when its reference count reaches 0. More...

bool	automaticDelete () const
	If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T *	as ()
	Casts an Object to the specified class. More...

template<class T >
const T *	as () const
	Casts an Object to the specified class. More...

Protected Attributes
int	mRangeStart

int	mRangeEnd

GLuint	mBaseVertex

bool	mPrimitiveRestartEnabled

Protected Attributes inherited from vl::DrawCall
ref< PatchParameter >	mPatchParameter

EPrimitiveType	mType

bool	mEnabled

Protected Attributes inherited from vl::Object
std::string	mObjectName

IMutex *	mRefCountMutex

int	mReferenceCount

bool	mAutomaticDelete

Additional Inherited Members
Protected Member Functions inherited from vl::DrawCall
void	applyPatchParameters () const

Protected Member Functions inherited from vl::Object
virtual	~Object ()

Detailed Description

Base interface for all DrawRangeElements* sub classes.

Implements the index-type-independent interface of the class. That is you can cast to DrawRangeElementsBase* and access its members without needing to know whether the actual class is a vl::DrawRangeElementsUInt, vl::DrawRangeElementsUShort or vl::DrawRangeElementsUByte.

Definition at line 53 of file DrawRangeElements.hpp.

Member Function Documentation

◆ baseVertex()

int vl::DrawRangeElementsBase::baseVertex ( ) const

inline

Returns the currently used base vertex.

For more information see also http://www.opengl.org/sdk/docs/man3/xhtml/glDrawRangeElementsBaseVertex.xml

Definition at line 84 of file DrawRangeElements.hpp.

References mBaseVertex.

Referenced by vl::Geometry::shrinkDrawCalls(), and vl::DrawRangeElements< ArrayUShort1 >::triangleIterator().

◆ primitiveRestartEnabled()

virtual bool vl::DrawRangeElementsBase::primitiveRestartEnabled ( ) const

inlinevirtual

Returns whether the primitive-restart functionality is enabled or not.

See http://www.opengl.org/registry/specs/NV/primitive_restart.txt

Reimplemented from vl::DrawCall.

Definition at line 71 of file DrawRangeElements.hpp.

References mPrimitiveRestartEnabled.

Referenced by vl::DrawRangeElements< ArrayUShort1 >::render(), and vl::DrawRangeElements< ArrayUShort1 >::triangleIterator().

◆ rangeEnd()

int vl::DrawRangeElementsBase::rangeEnd ( ) const

inline

Returns the range end.

Definition at line 68 of file DrawRangeElements.hpp.

References mRangeEnd.

Referenced by vl::Geometry::shrinkDrawCalls().

◆ rangeStart()

int vl::DrawRangeElementsBase::rangeStart ( ) const

inline

Returns the range start.

Definition at line 62 of file DrawRangeElements.hpp.

References mRangeStart.

Referenced by vl::Geometry::shrinkDrawCalls().

◆ setBaseVertex()

void vl::DrawRangeElementsBase::setBaseVertex ( int base_vertex )

inline

If base_vertx is != 0 glDrawRangeElementsBaseVertex/glDrawRangeElementsInstancedBaseVertex will be used instead of their non *BaseVertx counterparts.

Note that using base_vertx != requires OpenGL 3.2 or higher or ARB_draw_elements_base_vertex. For more information see also http://www.opengl.org/sdk/docs/man3/xhtml/glDrawRangeElementsBaseVertex.xml

Definition at line 80 of file DrawRangeElements.hpp.

References mBaseVertex.

Referenced by vl::Geometry::shrinkDrawCalls().
