The EdgeExtractor class extracts the edges from one or more Geometry objects. More...

#include <EdgeExtractor.hpp>

Inheritance diagram for vl::EdgeExtractor:

Classes
class	Edge
	A single edge as extracted from the EdgeExtractor class. More...

Public Member Functions
	EdgeExtractor ()

void	extractEdges (Geometry *geom)
	Extracts the edges from the given Geometry and appends them to edges(). More...

bool	extractEdges (Actor *actor)

void	extractEdges (ActorCollection *actors)

void	extractEdges (SceneManager *scenemanager)

void	extractEdges (Rendering *rendering)

ref< Geometry >	generateEdgeGeometry () const

const std::vector< Edge > &	edges () const

std::vector< Edge > &	edges ()

void	reset ()

float	creaseAngle () const
	The minimum angle (in degrees) considered to generate crease-edges. More...

void	setCreaseAngle (float a)
	The minimum angle (in degrees) considered to generate crease-edges. More...

bool	warnNonManifold () const

void	setWarnNonManifold (bool warn_on)

Public Member Functions inherited from vl::Object
	Object ()
	Constructor. More...

	Object (const Object &other)
	Copy constructor: copies the name, ref count mutex and user data. More...

Object &	operator= (const Object &other)
	Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string &	objectName () const
	The name of the object, by default set to the object's class name. More...

void	setObjectName (const char *name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setObjectName (const std::string &name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setRefCountMutex (IMutex *mutex)
	The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutex *	refCountMutex ()
	The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutex *	refCountMutex () const
	The mutex used to protect the reference counting of an Object across multiple threads. More...

int	referenceCount () const
	Returns the number of references of an object. More...

void	incReference () const
	Increments the reference count of an object. More...

void	decReference ()
	Decrements the reference count of an object and deletes it if both automaticDelete() is `true` the count reaches 0. More...

void	setAutomaticDelete (bool autodel_on)
	If set to true the Object is deleted when its reference count reaches 0. More...

bool	automaticDelete () const
	If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T *	as ()
	Casts an Object to the specified class. More...

template<class T >
const T *	as () const
	Casts an Object to the specified class. More...

Protected Member Functions
void	addEdge (std::set< EdgeExtractor::Edge > &edges, const EdgeExtractor::Edge &e, const fvec3 &n)

Protected Member Functions inherited from vl::Object
virtual	~Object ()

Protected Attributes
std::vector< Edge >	mEdges

float	mCreaseAngle

bool	mWarnNonManifold

Protected Attributes inherited from vl::Object
std::string	mObjectName

IMutex *	mRefCountMutex

int	mReferenceCount

bool	mAutomaticDelete

Detailed Description

The EdgeExtractor class extracts the edges from one or more Geometry objects.

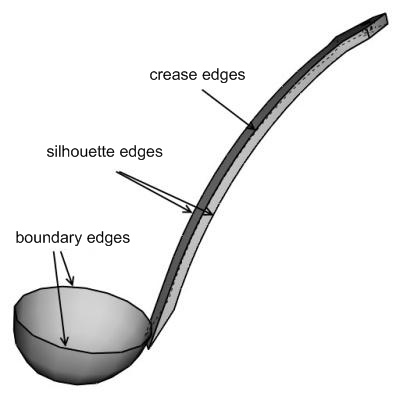

The edges are always extracted from the triangles or quads that are part of a vl::Geometry and can be of three types: silhouette edges, crease edges and boundary edges.

Silhouette edges are those edges that are shared by a backfacing and front facing quad or triangle.
Crease edges are those edges that are shared by two triangles or quads and that form an angle >= creaseAngle(), ie: 0 means that the two triangles or quads are coplanar; the edges of a cube define 90 degrees angles; the lateral edges of a 10 faces cylinder define 36 (360/10) degrees angles and so on.
Boundary edges are those edges that belong to a single triangle or quad.

Usage

Extract the edges from one or more Geometry objects using one of the extractEdges() methods.
Assign the Geometry returned by generateEdgeGeometry() to a new Actor. This geometry will contain the edges previously extracted ready to be rendered.
Assign a new EdgeUpdateCallback to the previously created Actor, using the Actor::renderEventCallbacks() method.
Initialize the previously created EdgeUpdateCallback edges with the edges extracted by the EdgeExtractor, that is, assign EdgeExtractor::edges() to EdgeUpdateCallback::edges().

See also

Definition at line 73 of file EdgeExtractor.hpp.

Constructor & Destructor Documentation

◆ EdgeExtractor()

vl::EdgeExtractor::EdgeExtractor ( )

inline

Definition at line 136 of file EdgeExtractor.hpp.

Member Function Documentation

◆ addEdge()

void EdgeExtractor::addEdge	(	std::set< EdgeExtractor::Edge > &	edges,
		const EdgeExtractor::Edge &	e,
		const fvec3 &	n
	)

protected

Definition at line 43 of file EdgeExtractor.cpp.

References vl::Log::error(), vl::Vector3< T_Scalar >::isNull(), mWarnNonManifold, vl::EdgeExtractor::Edge::setNormal1(), vl::EdgeExtractor::Edge::setNormal2(), and VL_CHECK.

Referenced by extractEdges().

◆ creaseAngle()

float vl::EdgeExtractor::creaseAngle ( ) const

inline

The minimum angle (in degrees) considered to generate crease-edges.

Definition at line 155 of file EdgeExtractor.hpp.

Referenced by extractEdges().

◆ edges() [1/2]

const std::vector<Edge>& vl::EdgeExtractor::edges ( ) const

inline

Definition at line 149 of file EdgeExtractor.hpp.

Referenced by vl::EdgeRenderer::declareActor(), extractEdges(), and generateEdgeGeometry().

◆ edges() [2/2]

std::vector<Edge>& vl::EdgeExtractor::edges ( )

inline

Definition at line 150 of file EdgeExtractor.hpp.

◆ extractEdges() [1/5]

void EdgeExtractor::extractEdges ( Geometry * geom )

Extracts the edges from the given Geometry and appends them to edges().

Definition at line 69 of file EdgeExtractor.cpp.

References vl::acos(), addEdge(), vl::clamp(), creaseAngle(), vl::cross(), vl::dot(), vl::Geometry::drawCalls(), edges(), vl::Log::error(), vl::fPi, vl::ArrayAbstract::getAsVec3(), vl::TriangleIterator::hasNext(), vl::Vector3< T_Scalar >::isNull(), mEdges, vl::EdgeExtractor::Edge::normal1(), vl::EdgeExtractor::Edge::normal2(), vl::Vector3< T_Scalar >::normalize(), vl::EdgeExtractor::Edge::setIsCrease(), vl::DrawCall::triangleIterator(), and vl::Geometry::vertexArray().

Referenced by vl::EdgeRenderer::declareActor(), and extractEdges().

◆ extractEdges() [2/5]

bool EdgeExtractor::extractEdges ( Actor * actor )

Definition at line 165 of file EdgeExtractor.cpp.

References extractEdges(), vl::Actor::lod(), and NULL.

◆ extractEdges() [3/5]

void EdgeExtractor::extractEdges ( ActorCollection * actors )

Definition at line 173 of file EdgeExtractor.cpp.

References vl::Collection< T >::at(), extractEdges(), vl::Actor::lod(), and vl::Collection< T >::size().

◆ extractEdges() [4/5]

void EdgeExtractor::extractEdges ( SceneManager * scenemanager )

Definition at line 183 of file EdgeExtractor.cpp.

References extractEdges(), vl::SceneManager::extractVisibleActors(), vl::ref< T >::get(), and NULL.

◆ extractEdges() [5/5]

void EdgeExtractor::extractEdges ( Rendering * rendering )

Definition at line 190 of file EdgeExtractor.cpp.

References extractEdges(), and vl::Rendering::sceneManagers().

◆ generateEdgeGeometry()

ref< Geometry > EdgeExtractor::generateEdgeGeometry ( ) const

Definition at line 129 of file EdgeExtractor.cpp.

References vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >::at(), vl::Geometry::drawCalls(), edges(), vl::ref< T >::get(), vl::PT_LINES, vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >::resize(), vl::Renderable::setBufferObjectEnabled(), vl::Geometry::setVertexArray(), and vl::Array< T_VectorType, T_Scalar, T_GL_Size, T_GL_Type >::size().

Referenced by vl::EdgeRenderer::declareActor().

◆ reset()

void vl::EdgeExtractor::reset ( )

inline

Definition at line 152 of file EdgeExtractor.hpp.

◆ setCreaseAngle()

void vl::EdgeExtractor::setCreaseAngle ( float a )

inline

The minimum angle (in degrees) considered to generate crease-edges.

Definition at line 157 of file EdgeExtractor.hpp.

Referenced by vl::EdgeRenderer::declareActor().

◆ setWarnNonManifold()

void vl::EdgeExtractor::setWarnNonManifold ( bool warn_on )

inline

Definition at line 160 of file EdgeExtractor.hpp.

◆ warnNonManifold()

bool vl::EdgeExtractor::warnNonManifold ( ) const

inline

Definition at line 159 of file EdgeExtractor.hpp.

Member Data Documentation

◆ mCreaseAngle

float vl::EdgeExtractor::mCreaseAngle

protected

Definition at line 167 of file EdgeExtractor.hpp.

◆ mEdges

std::vector<Edge> vl::EdgeExtractor::mEdges

protected

Definition at line 166 of file EdgeExtractor.hpp.

Referenced by extractEdges().

◆ mWarnNonManifold

bool vl::EdgeExtractor::mWarnNonManifold

protected

Definition at line 168 of file EdgeExtractor.hpp.

Referenced by addEdge().

The documentation for this class was generated from the following files:

C:/git/VL/src/vlGraphics/EdgeExtractor.hpp
C:/git/VL/src/vlGraphics/EdgeExtractor.cpp
