The base class of DrawArrays, DrawElements, MultiDrawElements and DrawRangeElements. More...

#include <DrawCall.hpp>

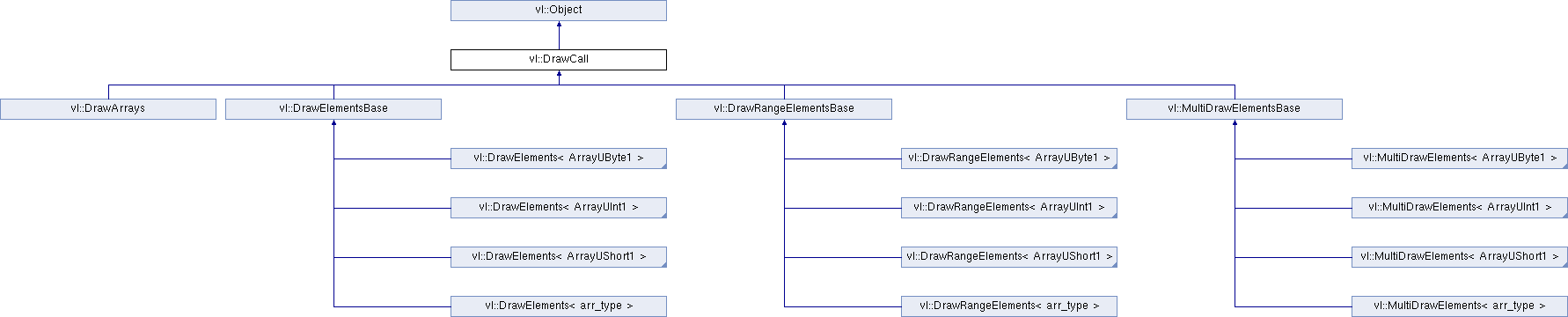

Inheritance diagram for vl::DrawCall:

Public Member Functions
	DrawCall ()
	Constructor.
DrawCall &	operator= (const DrawCall &other)
	Assignment operator.
void	setPrimitiveType (EPrimitiveType type)
	Sets the draw call's primitive type.
EPrimitiveType	primitiveType () const
	Returns the draw call's primitive type.
virtual void	render (bool use_bo=true) const =0
	Executes the draw call.
virtual ref< DrawCall >	clone () const =0
	Returns a clone of the draw call.
virtual void	updateDirtyBufferObject (EBufferObjectUpdateMode)=0
	Updates the index buffer's BufferObject if marked as dirty.
virtual void	deleteBufferObject ()=0
	Deletes the index buffer's BufferObject.
void	setEnabled (bool enable)
	Enables/disables the draw call.
bool	isEnabled () const
	True if the draw call is enabled.
virtual TriangleIterator	triangleIterator () const =0
	Returns a TriangleIterator used to iterate through the triangles of a DrawCall.
virtual IndexIterator	indexIterator () const =0
	Returns a IndexIterator used to iterate through the virtual indices of a DrawCall.
u32	countIndices () const
	Counts the number of virtual indices of a DrawCall., i.e.
u32	countTriangles () const
	Counts the number of virtual triangles of a DrawCall., i.e.
virtual int	instances () const
	Returns the number of instances for this set of primitives.
virtual bool	primitiveRestartEnabled () const
	Returns whether the primitive-restart functionality is enabled or not.
virtual unsigned int	primitiveRestartIndex ()
	Returns the primitive restart index used by the draw call or 0 if primitive restart is not supported.
void	setPatchParameter (PatchParameter *patch_param)
	Attach a PatchParameter to a DrawCall to be used when using primitive-type PT_PATCHES.
PatchParameter *	patchParameter ()
	The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES.
const PatchParameter *	patchParameter () const
	The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES.
Protected Member Functions
void	applyPatchParameters () const
Protected Attributes
ref< PatchParameter >	mPatchParameter
EPrimitiveType	mType
bool	mEnabled

Detailed Description

The base class of DrawArrays, DrawElements, MultiDrawElements and DrawRangeElements.

which are used by Geometry to define a set of primitives to be rendered (see also Geometry::drawCalls()).

Overview

vl::DrawArrays wraps:

glDrawArrays (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawArrays.xml)
glDrawArraysInstanced (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawArraysInstanced.xml)

Supports:

Multi instancing: YES
Base vertex: N/A
Primitive restart: N/A

vl::DrawElements wraps:

glDrawElements (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawElements.xml)
glDrawElementsInstanced (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawElementsInstanced.xml)
glDrawElementsBaseVertex (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawElementsBaseVertex.xml)
glDrawElementsInstancedBaseVertex (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawElementsInstancedBaseVertex.xml)

Supports:

Multi instancing: YES
Base vertex: YES
Primitive restart: YES

vl::DrawRangeElements wraps:

glDrawRangeElements (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawRangeElements.xml)
glDrawRangeElementsBaseVertex (http://www.opengl.org/sdk/docs/man4/xhtml/glDrawRangeElementsBaseVertex.xml)

Supports:

Multi instancing: NO
Base vertex: YES
Primitive restart: YES

vl::MultiDrawElements wraps:

glMultiDrawElements (http://www.opengl.org/sdk/docs/man4/xhtml/glMultiDrawElements.xml)
glMultiDrawElementsBaseVertex (http://www.opengl.org/sdk/docs/man4/xhtml/glMultiDrawElementsBaseVertex.xml)

Supports:

Multi instancing: NO
Base vertex: YES
Primitive restart: YES

DrawArrays, DrawElements, MultiDrawElements and DrawRangeElements are used by Geometry to define a set of primitives to be rendered.

See also:: Geometry::drawCalls(), DrawCall, DrawElements, MultiDrawElements, DrawRangeElements, Geometry, Actor

Definition at line 90 of file DrawCall.hpp.

Constructor & Destructor Documentation

vl::DrawCall::DrawCall ( ) [inline]

Constructor.

Definition at line 96 of file DrawCall.hpp.

Member Function Documentation

DrawCall& vl::DrawCall::operator= ( const DrawCall & other ) [inline]

Assignment operator.

Definition at line 99 of file DrawCall.hpp.

References mEnabled, and mType.

void vl::DrawCall::setPrimitiveType ( EPrimitiveType type ) [inline]

Sets the draw call's primitive type.

Definition at line 107 of file DrawCall.hpp.

References mType.

Referenced by vl::VLXClassWrapper_DrawCall::importDrawCall().

EPrimitiveType vl::DrawCall::primitiveType ( ) const [inline]

Returns the draw call's primitive type.

Definition at line 110 of file DrawCall.hpp.

References mType.

Referenced by vl::DrawArrays::clone(), vl::VLXClassWrapper_DrawCall::exportDrawCallBase(), vl::Geometry::fixTriangleWinding(), vl::VLXClassWrapper_DrawCall::importDrawCall(), vl::Geometry::makeGLESFriendly(), vl::Geometry::mergeDrawCallsWithTriangles(), vl::MultiDrawElements< ArrayUShort1 >::render(), vl::DrawRangeElements< ArrayUShort1 >::render(), vl::DrawElements< ArrayUShort1 >::render(), vl::DrawArrays::render(), vl::Geometry::sortVertices(), vl::DrawRangeElements< ArrayUShort1 >::triangleIterator(), vl::DrawElements< ArrayUShort1 >::triangleIterator(), vl::DrawArrays::triangleIterator(), and vl::Geometry::triangulateDrawCalls().

virtual void vl::DrawCall::render ( bool use_bo = true ) const [pure virtual]

Executes the draw call.

Implemented in vl::DrawArrays, vl::DrawElements< arr_type >, vl::DrawRangeElements< arr_type >, vl::MultiDrawElements< arr_type >, vl::DrawElements< ArrayUInt1 >, vl::DrawElements< ArrayUByte1 >, vl::DrawElements< ArrayUShort1 >, vl::DrawRangeElements< ArrayUInt1 >, vl::DrawRangeElements< ArrayUByte1 >, vl::DrawRangeElements< ArrayUShort1 >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, and vl::MultiDrawElements< ArrayUShort1 >.

Referenced by vl::Geometry::render_Implementation().

virtual ref<DrawCall> vl::DrawCall::clone ( ) const [pure virtual]

Returns a clone of the draw call.

Implemented in vl::DrawArrays, vl::DrawElements< arr_type >, vl::DrawRangeElements< arr_type >, vl::MultiDrawElements< arr_type >, vl::DrawElements< ArrayUInt1 >, vl::DrawElements< ArrayUByte1 >, vl::DrawElements< ArrayUShort1 >, vl::DrawRangeElements< ArrayUInt1 >, vl::DrawRangeElements< ArrayUByte1 >, vl::DrawRangeElements< ArrayUShort1 >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, and vl::MultiDrawElements< ArrayUShort1 >.

virtual void vl::DrawCall::updateDirtyBufferObject ( EBufferObjectUpdateMode ) [pure virtual]

Updates the index buffer's BufferObject if marked as dirty.

Implemented in vl::DrawArrays, vl::DrawElements< arr_type >, vl::DrawRangeElements< arr_type >, vl::MultiDrawElements< arr_type >, vl::DrawElements< ArrayUInt1 >, vl::DrawElements< ArrayUByte1 >, vl::DrawElements< ArrayUShort1 >, vl::DrawRangeElements< ArrayUInt1 >, vl::DrawRangeElements< ArrayUByte1 >, vl::DrawRangeElements< ArrayUShort1 >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, and vl::MultiDrawElements< ArrayUShort1 >.

Referenced by vl::Geometry::updateDirtyBufferObject().

virtual void vl::DrawCall::deleteBufferObject ( ) [pure virtual]

Deletes the index buffer's BufferObject.

Implemented in vl::DrawArrays, vl::DrawElements< arr_type >, vl::DrawRangeElements< arr_type >, vl::MultiDrawElements< arr_type >, vl::DrawElements< ArrayUInt1 >, vl::DrawElements< ArrayUByte1 >, vl::DrawElements< ArrayUShort1 >, vl::DrawRangeElements< ArrayUInt1 >, vl::DrawRangeElements< ArrayUByte1 >, vl::DrawRangeElements< ArrayUShort1 >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, and vl::MultiDrawElements< ArrayUShort1 >.

Referenced by vl::Geometry::deleteBufferObject().

void vl::DrawCall::setEnabled ( bool enable ) [inline]

Enables/disables the draw call.

Definition at line 125 of file DrawCall.hpp.

References mEnabled.

Referenced by vl::VLXClassWrapper_DrawCall::importDrawCall(), and vl::Geometry::makeGLESFriendly().

bool vl::DrawCall::isEnabled ( ) const [inline]

True if the draw call is enabled.

Definition at line 128 of file DrawCall.hpp.

References mEnabled.

Referenced by vl::VLXClassWrapper_DrawCall::exportDrawCallBase(), and vl::Geometry::render_Implementation().

virtual TriangleIterator vl::DrawCall::triangleIterator ( ) const [pure virtual]

Returns a TriangleIterator used to iterate through the triangles of a DrawCall.

Basically the iterator tesselates in triangles any DrawCall of type: PT_TRIANGLES, PT_TRIANGLE_STRIP PT_TRIANGLE_FAN, PT_POLYGON, PT_QUADS, PT_QUAD_STRIP.

Implemented in vl::DrawArrays, vl::DrawElements< arr_type >, vl::DrawRangeElements< arr_type >, vl::MultiDrawElements< arr_type >, vl::DrawElements< ArrayUInt1 >, vl::DrawElements< ArrayUByte1 >, vl::DrawElements< ArrayUShort1 >, vl::DrawRangeElements< ArrayUInt1 >, vl::DrawRangeElements< ArrayUByte1 >, vl::DrawRangeElements< ArrayUShort1 >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, and vl::MultiDrawElements< ArrayUShort1 >.

Referenced by vl::Geometry::computeTangentSpace(), countTriangles(), vl::EdgeExtractor::extractEdges(), vl::RayIntersector::intersectGeometry(), vl::PolygonSimplifier::simplify(), and vl::Geometry::triangulateDrawCalls().

virtual IndexIterator vl::DrawCall::indexIterator ( ) const [pure virtual]

Returns a IndexIterator used to iterate through the virtual indices of a DrawCall.

This

Note:: The returned indices already take into account primitive restart and base vertex.

Implemented in vl::DrawArrays, vl::DrawElements< arr_type >, vl::DrawRangeElements< arr_type >, vl::MultiDrawElements< arr_type >, vl::DrawElements< ArrayUInt1 >, vl::DrawElements< ArrayUByte1 >, vl::DrawElements< ArrayUShort1 >, vl::DrawRangeElements< ArrayUInt1 >, vl::DrawRangeElements< ArrayUByte1 >, vl::DrawRangeElements< ArrayUShort1 >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, and vl::MultiDrawElements< ArrayUShort1 >.

Referenced by vl::Geometry::computeBounds_Implementation(), and countIndices().

u32 vl::DrawCall::countIndices ( ) const [inline]

Counts the number of virtual indices of a DrawCall., i.e.

the number of indices you would retrieve by iterating over the iterator returned by indexIterator().

Definition at line 142 of file DrawCall.hpp.

References vl::IndexIterator::hasNext(), and indexIterator().

Referenced by vl::Geometry::mergeDrawCallsWithMultiDrawElements(), and vl::Geometry::mergeDrawCallsWithPrimitiveRestart().

u32 vl::DrawCall::countTriangles ( ) const [inline]

Counts the number of virtual triangles of a DrawCall., i.e.

the number of triangles you would retrieve by iterating over the iterator returned by triangleIterator().

Definition at line 151 of file DrawCall.hpp.

References vl::TriangleIterator::hasNext(), and triangleIterator().

Referenced by vl::Geometry::fixTriangleWinding(), vl::Geometry::mergeDrawCallsWithTriangles(), and vl::Geometry::triangulateDrawCalls().

virtual int vl::DrawCall::instances ( ) const [inline, virtual]

Returns the number of instances for this set of primitives.

Reimplemented in vl::DrawArrays, and vl::DrawElementsBase.

Definition at line 160 of file DrawCall.hpp.

Referenced by vl::Geometry::triangulateDrawCalls().

virtual bool vl::DrawCall::primitiveRestartEnabled ( ) const [inline, virtual]

Returns whether the primitive-restart functionality is enabled or not.

See http://www.opengl.org/registry/specs/NV/primitive_restart.txt

Reimplemented in vl::DrawElementsBase, vl::DrawRangeElementsBase, and vl::MultiDrawElementsBase.

Definition at line 163 of file DrawCall.hpp.

Referenced by vl::Geometry::sortVertices().

virtual unsigned int vl::DrawCall::primitiveRestartIndex ( ) [inline, virtual]

Returns the primitive restart index used by the draw call or 0 if primitive restart is not supported.

Reimplemented in vl::DrawElements< arr_type >, vl::DrawRangeElements< arr_type >, vl::MultiDrawElements< arr_type >, vl::DrawElements< ArrayUInt1 >, vl::DrawElements< ArrayUByte1 >, vl::DrawElements< ArrayUShort1 >, vl::DrawRangeElements< ArrayUInt1 >, vl::DrawRangeElements< ArrayUByte1 >, vl::DrawRangeElements< ArrayUShort1 >, vl::MultiDrawElements< ArrayUInt1 >, vl::MultiDrawElements< ArrayUByte1 >, and vl::MultiDrawElements< ArrayUShort1 >.

Definition at line 166 of file DrawCall.hpp.

void vl::DrawCall::setPatchParameter ( PatchParameter * patch_param ) [inline]

Attach a PatchParameter to a DrawCall to be used when using primitive-type PT_PATCHES.

Definition at line 169 of file DrawCall.hpp.

References mPatchParameter.

PatchParameter* vl::DrawCall::patchParameter ( ) [inline]

The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES.

Definition at line 172 of file DrawCall.hpp.

References vl::ref< T >::get(), and mPatchParameter.

Referenced by vl::VLXClassWrapper_DrawCall::exportDrawCallBase().

const PatchParameter* vl::DrawCall::patchParameter ( ) const [inline]

The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES.

Definition at line 175 of file DrawCall.hpp.

References vl::ref< T >::get(), and mPatchParameter.

void vl::DrawCall::applyPatchParameters ( ) const [inline, protected]

Definition at line 178 of file DrawCall.hpp.

References mPatchParameter, mType, vl::PT_PATCHES, and vl::Log::warning().

Referenced by vl::MultiDrawElements< ArrayUShort1 >::render(), vl::DrawRangeElements< ArrayUShort1 >::render(), vl::DrawElements< ArrayUShort1 >::render(), and vl::DrawArrays::render().

Member Data Documentation

ref<PatchParameter> vl::DrawCall::mPatchParameter [protected]

Definition at line 195 of file DrawCall.hpp.

Referenced by applyPatchParameters(), patchParameter(), and setPatchParameter().

EPrimitiveType vl::DrawCall::mType [protected]

Definition at line 196 of file DrawCall.hpp.

Referenced by applyPatchParameters(), vl::DrawArrays::DrawArrays(), vl::DrawElements< ArrayUShort1 >::DrawElements(), vl::DrawRangeElements< ArrayUShort1 >::DrawRangeElements(), vl::MultiDrawElements< ArrayUShort1 >::MultiDrawElements(), operator=(), primitiveType(), and setPrimitiveType().

bool vl::DrawCall::mEnabled [protected]

Definition at line 197 of file DrawCall.hpp.

Referenced by isEnabled(), operator=(), and setEnabled().

The documentation for this class was generated from the following file:

/home/master/UCL/VisualizationLibrary/src/vlGraphics/DrawCall.hpp
