The SceneManager class is the base class for all the scene managers. More...

#include <SceneManager.hpp>

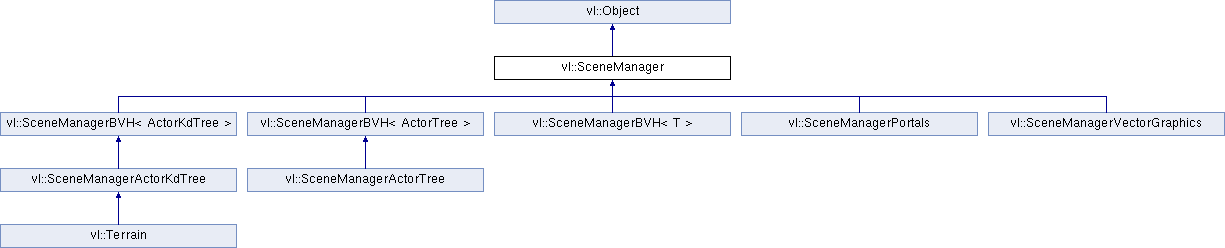

Inheritance diagram for vl::SceneManager:

Public Member Functions
	SceneManager ()
	Constructor. More...

virtual void	extractActors (ActorCollection &list)=0
	Appends all the Actors contained in the scene manager without performing frustum culling or checking enable masks. More...

virtual void	extractVisibleActors (ActorCollection &list, const Camera *camera)=0
	Extracts all the enabled and visible Actors contained in the ActorTree hierarchy and appends them to the given ActorCollection. More...

virtual void	computeBounds ()
	Computes the bounding box and bounding sphere of the scene manager and of all the Actors contained in the SceneManager. More...

void	setBoundingSphere (const Sphere &sphere)
	Explicitly set the scene manager's bounding sphere. See also computeBounds(). More...

const Sphere &	boundingSphere () const
	Returns the scene manager's bounding sphere. More...

void	setBoundingBox (const AABB &bbox)
	Explicitly set the scene manager's bounding sphere. See also computeBounds(). More...

const AABB &	boundingBox () const
	Returns the scene manager's bounding box. More...

void	setBoundsDirty (bool dirty)
	Flags a scene manager's bounding box and bounding sphere as dirty. The bounds will be recomputed using computeBounds() at the next rendering frame. More...

bool	boundsDirty () const
	Returns true if the scene manager's bounds should be recomputed at the next rendering frame. More...

void	setCullingEnabled (bool enable)
	Used to enable or disable frustum culling or whichever culling system the scene manager implements. More...

bool	cullingEnabled () const
	Used to enable or disable frustum culling or whichever culling system the scene manager implements. More...

void	setEnableMask (unsigned int enabled)
	The enable mask to be used by extractVisibleActors() More...

unsigned int	enableMask () const
	The enable mask to be used by extractVisibleActors() More...

bool	isEnabled (Actor *a) const
	Returns `true` if `"a->enableMask() & enableMask()) != 0"`. More...

Public Member Functions inherited from vl::Object
	Object ()
	Constructor. More...

	Object (const Object &other)
	Copy constructor: copies the name, ref count mutex and user data. More...

Object &	operator= (const Object &other)
	Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string &	objectName () const
	The name of the object, by default set to the object's class name. More...

void	setObjectName (const char *name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setObjectName (const std::string &name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setRefCountMutex (IMutex *mutex)
	The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutex *	refCountMutex ()
	The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutex *	refCountMutex () const
	The mutex used to protect the reference counting of an Object across multiple threads. More...

int	referenceCount () const
	Returns the number of references of an object. More...

void	incReference () const
	Increments the reference count of an object. More...

void	decReference ()
	Decrements the reference count of an object and deletes it if both automaticDelete() is `true` the count reaches 0. More...

void	setAutomaticDelete (bool autodel_on)
	If set to true the Object is deleted when its reference count reaches 0. More...

bool	automaticDelete () const
	If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T *	as ()
	Casts an Object to the specified class. More...

template<class T >
const T *	as () const
	Casts an Object to the specified class. More...

Protected Attributes
Sphere	mSphere

AABB	mAABB

unsigned int	mEnableMask

bool	mBoundsDirty

bool	mCullingEnabled

Protected Attributes inherited from vl::Object
std::string	mObjectName

IMutex *	mRefCountMutex

int	mReferenceCount

bool	mAutomaticDelete

Additional Inherited Members
Protected Member Functions inherited from vl::Object
virtual	~Object ()

Detailed Description

The SceneManager class is the base class for all the scene managers.

A SceneManager implements an algorithm used to quickly identify which objects are visible and which ones are not. The algorithm can be a space partitioning scheme like a BSP, Kd-Tree, Octree etc. or a visibility based scheme like sector/portals, precomputed PVS etc. or a mix of them. The set of SceneManager[s] attached to a Rendering defines the scene. In fact, if an Actor does not belong to any SceneManager it will not have any chance of being rendered.

Visualization Library allows you to bind and use multiple SceneManagers at the same time within the same Rendering. Note that an Actor should belong to one and only one SceneManager otherwise you might end up rendering twice the same Actor thus wasting computational resources.

In order to implement your own scene manager you will have to dirive from the SceneManager class and provide an appropriate implementation for the following methods: extractVisibleActors(), extractActors().

See also

Definition at line 72 of file SceneManager.hpp.

Constructor & Destructor Documentation

◆ SceneManager()

SceneManager::SceneManager ( )

Constructor.

Definition at line 43 of file SceneManager.cpp.

References mBoundsDirty, mCullingEnabled, and mEnableMask.

Member Function Documentation

◆ boundingBox()

const AABB& vl::SceneManager::boundingBox ( ) const

inline

Returns the scene manager's bounding box.

Definition at line 98 of file SceneManager.hpp.

Referenced by computeBounds().

◆ boundingSphere()

const Sphere& vl::SceneManager::boundingSphere ( ) const

inline

Returns the scene manager's bounding sphere.

Definition at line 93 of file SceneManager.hpp.

◆ boundsDirty()

bool vl::SceneManager::boundsDirty ( ) const

inline

Returns true if the scene manager's bounds should be recomputed at the next rendering frame.

Definition at line 103 of file SceneManager.hpp.

◆ computeBounds()

void SceneManager::computeBounds ( )

virtual

Computes the bounding box and bounding sphere of the scene manager and of all the Actors contained in the SceneManager.

Definition at line 52 of file SceneManager.cpp.

References vl::Collection< T >::at(), boundingBox(), vl::Actor::boundingBox(), vl::Actor::boundingSphere(), vl::Sphere::center(), vl::AABB::center(), vl::Actor::computeBounds(), extractActors(), vl::Sphere::isNull(), vl::length(), vl::Sphere::radius(), setBoundingBox(), setBoundingSphere(), setBoundsDirty(), vl::Sphere::setCenter(), vl::AABB::setNull(), vl::Sphere::setRadius(), and vl::Collection< T >::size().

◆ cullingEnabled()

bool vl::SceneManager::cullingEnabled ( ) const

inline

Used to enable or disable frustum culling or whichever culling system the scene manager implements.

Definition at line 108 of file SceneManager.hpp.

Referenced by vl::SceneManagerBVH< ActorTree >::extractVisibleActors(), and vl::SceneManagerVectorGraphics::extractVisibleActors().

◆ enableMask()

unsigned int vl::SceneManager::enableMask ( ) const

inline

The enable mask to be used by extractVisibleActors()

See also: Actor::enableMask(), Actor::isEnabled(), ActorTreeAbstract::isEnabled(), SceneManager::enableMask(), Rendering::enableMask(), Rendering::effectOverrideMask(), Renderer::enableMask(), Renderer::shaderOverrideMask().

Definition at line 115 of file SceneManager.hpp.

Referenced by vl::SceneManagerBVH< ActorTree >::extractVisibleActors(), and isEnabled().

◆ extractActors()

virtual void vl::SceneManager::extractActors ( ActorCollection & list )

pure virtual

Appends all the Actors contained in the scene manager without performing frustum culling or checking enable masks.

Implemented in vl::SceneManagerPortals, vl::SceneManagerVectorGraphics, vl::SceneManagerBVH< T >, vl::SceneManagerBVH< ActorKdTree >, and vl::SceneManagerBVH< ActorTree >.

Referenced by computeBounds().

◆ extractVisibleActors()

virtual void vl::SceneManager::extractVisibleActors	(	ActorCollection &	list,
		const Camera *	camera
	)

pure virtual

Extracts all the enabled and visible Actors contained in the ActorTree hierarchy and appends them to the given ActorCollection.

See also: SceneManager::enableMask(), Actor::enableMask(), Actor::isEnabled(), ActorTreeAbstract::isEnabled()

Implemented in vl::SceneManagerPortals, vl::SceneManagerVectorGraphics, vl::SceneManagerBVH< T >, vl::SceneManagerBVH< ActorKdTree >, and vl::SceneManagerBVH< ActorTree >.

Referenced by vl::TrackballManipulator::adjustView(), vl::EdgeExtractor::extractEdges(), and vl::RayIntersector::intersect().

◆ isEnabled()

bool SceneManager::isEnabled ( Actor * a ) const

Returns true if "a->enableMask() & enableMask()) != 0".

Definition at line 84 of file SceneManager.cpp.

References enableMask(), vl::Actor::enableMask(), and vl::Actor::isEnabled().

◆ setBoundingBox()

void vl::SceneManager::setBoundingBox ( const AABB & bbox )

inline

Explicitly set the scene manager's bounding sphere. See also computeBounds().

Definition at line 96 of file SceneManager.hpp.

Referenced by computeBounds().

◆ setBoundingSphere()

void vl::SceneManager::setBoundingSphere ( const Sphere & sphere )

inline

Explicitly set the scene manager's bounding sphere. See also computeBounds().

Definition at line 91 of file SceneManager.hpp.

Referenced by computeBounds().

◆ setBoundsDirty()

void vl::SceneManager::setBoundsDirty ( bool dirty )

inline

Flags a scene manager's bounding box and bounding sphere as dirty. The bounds will be recomputed using computeBounds() at the next rendering frame.

Definition at line 101 of file SceneManager.hpp.

Referenced by computeBounds().

◆ setCullingEnabled()

void vl::SceneManager::setCullingEnabled ( bool enable )

inline

Used to enable or disable frustum culling or whichever culling system the scene manager implements.

Definition at line 106 of file SceneManager.hpp.

◆ setEnableMask()

void vl::SceneManager::setEnableMask ( unsigned int enabled )

inline

The enable mask to be used by extractVisibleActors()

See also: Actor::enableMask(), Actor::isEnabled(), ActorTreeAbstract::isEnabled(), SceneManager::enableMask(), Rendering::enableMask(), Rendering::effectOverrideMask(), Renderer::enableMask(), Renderer::shaderOverrideMask().

Definition at line 112 of file SceneManager.hpp.

Member Data Documentation

◆ mAABB

AABB vl::SceneManager::mAABB

protected

Definition at line 122 of file SceneManager.hpp.

◆ mBoundsDirty

bool vl::SceneManager::mBoundsDirty

protected

Definition at line 124 of file SceneManager.hpp.

Referenced by SceneManager().

◆ mCullingEnabled

bool vl::SceneManager::mCullingEnabled

protected

Definition at line 125 of file SceneManager.hpp.

Referenced by SceneManager().

◆ mEnableMask

unsigned int vl::SceneManager::mEnableMask

protected

Definition at line 123 of file SceneManager.hpp.

Referenced by SceneManager().

◆ mSphere

Sphere vl::SceneManager::mSphere

protected

Definition at line 121 of file SceneManager.hpp.

The documentation for this class was generated from the following files:

C:/git/VL/src/vlGraphics/SceneManager.hpp
C:/git/VL/src/vlGraphics/SceneManager.cpp
