Abstract class that represents a framebuffer object attachment to be used with FramebufferObject. More...

#include <FramebufferObject.hpp>

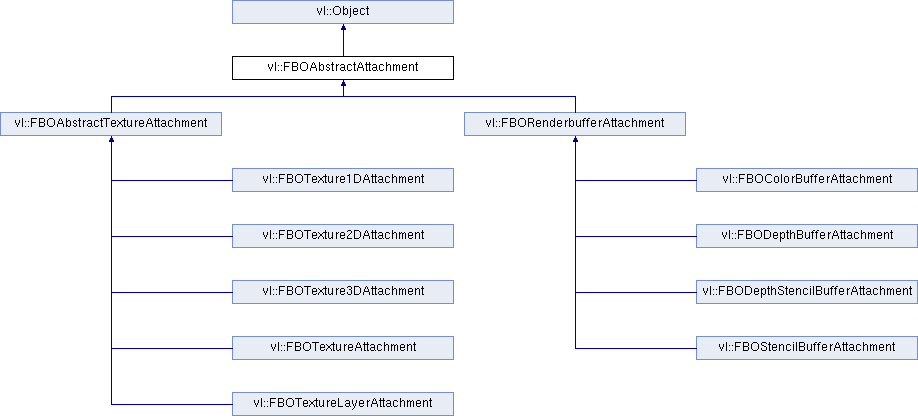

Inheritance diagram for vl::FBOAbstractAttachment:

Public Member Functions
	FBOAbstractAttachment ()
	Constructor. More...

virtual	~FBOAbstractAttachment ()
	Destructor. More...

virtual void	unbindFromAllFBO ()
	Removes the FBO attachment from all bound FBO render targets. More...

const std::set< ref< FramebufferObject > > &	fboFramebuffers () const
	Returns an std::set containing the FramebufferObject that use this FBO attachment. More...

Public Member Functions inherited from vl::Object
	Object ()
	Constructor. More...

	Object (const Object &other)
	Copy constructor: copies the name, ref count mutex and user data. More...

Object &	operator= (const Object &other)
	Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string &	objectName () const
	The name of the object, by default set to the object's class name. More...

void	setObjectName (const char *name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setObjectName (const std::string &name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setRefCountMutex (IMutex *mutex)
	The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutex *	refCountMutex ()
	The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutex *	refCountMutex () const
	The mutex used to protect the reference counting of an Object across multiple threads. More...

int	referenceCount () const
	Returns the number of references of an object. More...

void	incReference () const
	Increments the reference count of an object. More...

void	decReference ()
	Decrements the reference count of an object and deletes it if both automaticDelete() is `true` the count reaches 0. More...

void	setAutomaticDelete (bool autodel_on)
	If set to true the Object is deleted when its reference count reaches 0. More...

bool	automaticDelete () const
	If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T *	as ()
	Casts an Object to the specified class. More...

template<class T >
const T *	as () const
	Casts an Object to the specified class. More...

Protected Member Functions
virtual void	bindAttachment (FramebufferObject *fbo, EAttachmentPoint attach_point)=0

Protected Member Functions inherited from vl::Object
virtual	~Object ()

Protected Attributes
std::set< ref< FramebufferObject > >	mFramebufferObjects

Protected Attributes inherited from vl::Object
std::string	mObjectName

IMutex *	mRefCountMutex

int	mReferenceCount

bool	mAutomaticDelete

Friends
class	FramebufferObject

Detailed Description

Abstract class that represents a framebuffer object attachment to be used with FramebufferObject.

See also

Definition at line 55 of file FramebufferObject.hpp.

Constructor & Destructor Documentation

◆ FBOAbstractAttachment()

vl::FBOAbstractAttachment::FBOAbstractAttachment ( )

inline

Constructor.

Definition at line 68 of file FramebufferObject.hpp.

◆ ~FBOAbstractAttachment()

virtual vl::FBOAbstractAttachment::~FBOAbstractAttachment ( )

inlinevirtual

Destructor.

Definition at line 71 of file FramebufferObject.hpp.

References VL_CHECK.

Member Function Documentation

◆ bindAttachment()

virtual void vl::FBOAbstractAttachment::bindAttachment	(	FramebufferObject *	fbo,
		EAttachmentPoint	attach_point
	)

protectedpure virtual

Implemented in vl::FBOTextureLayerAttachment, vl::FBOTexture3DAttachment, vl::FBOTextureAttachment, vl::FBOTexture2DAttachment, vl::FBOTexture1DAttachment, and vl::FBORenderbufferAttachment.

Referenced by vl::FramebufferObject::addDepthAttachment(), vl::FramebufferObject::addDepthStencilAttachment(), vl::FramebufferObject::addStencilAttachment(), and vl::FramebufferObject::addTextureAttachment().

◆ fboFramebuffers()

const std::set< ref<FramebufferObject> >& vl::FBOAbstractAttachment::fboFramebuffers ( ) const

inline

Returns an std::set containing the FramebufferObject that use this FBO attachment.

Definition at line 77 of file FramebufferObject.hpp.

◆ unbindFromAllFBO()

void FBOAbstractAttachment::unbindFromAllFBO ( )

virtual

Removes the FBO attachment from all bound FBO render targets.

Definition at line 628 of file FramebufferObject.cpp.

Friends And Related Function Documentation

◆ FramebufferObject

friend class FramebufferObject

friend

Definition at line 59 of file FramebufferObject.hpp.

Member Data Documentation

◆ mFramebufferObjects

std::set< ref<FramebufferObject> > vl::FBOAbstractAttachment::mFramebufferObjects

protected

Definition at line 83 of file FramebufferObject.hpp.

Referenced by vl::FramebufferObject::addColorAttachment(), vl::FramebufferObject::addDepthAttachment(), vl::FramebufferObject::addDepthStencilAttachment(), vl::FramebufferObject::addStencilAttachment(), vl::FramebufferObject::addTextureAttachment(), and vl::FramebufferObject::removeAttachment().

The documentation for this class was generated from the following files:

C:/git/VL/src/vlGraphics/FramebufferObject.hpp
C:/git/VL/src/vlGraphics/FramebufferObject.cpp
