For internal use only. More...

#include <GLSL.hpp>

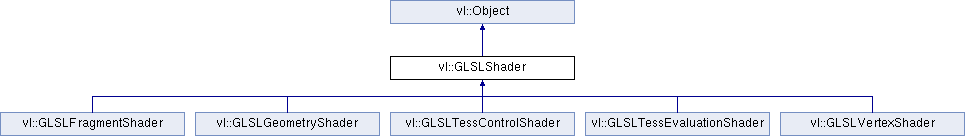

Inheritance diagram for vl::GLSLShader:

Public Member Functions
	GLSLShader ()

	GLSLShader (EShaderType type, const String &source_or_path)

	~GLSLShader ()

void	setType (EShaderType type)

EShaderType	type () const

void	setSource (const String &source_or_path)
	Sets the sources for this shader and schedules a recompilation for it. If the string passed is a file path the source is loaded from it. More...

const std::string &	source () const
	Returns the sources for this shader. More...

void	setPath (const String &path)
	The path from which the shader was loaded. More...

const String &	path () const
	The path from which the shader was loaded. More...

bool	reload ()
	Reloads the shader source and recompiles it. Returns true on success. More...

std::string	getShaderSource () const
	Retrieves the shader source using glGetShaderSource() More...

bool	compile ()
	Compiles the shader, see also http://www.opengl.org/sdk/docs/man/xhtml/glCompileShader.xml for more information. More...

bool	compileStatus () const
	Returns true if the shader has been succesfully compiled. More...

String	infoLog () const
	Returns a String object containing this shader's info log as returned by glGetShaderInfoLog(), see also http://www.opengl.org/sdk/docs/man/xhtml/glGetShaderInfoLog.xml for more information. More...

void	createShader ()
	Creates the shader using the OpenGL function glCreateShader(), see also http://www.opengl.org/sdk/docs/man/xhtml/glCreateShader.xml for more information. More...

void	deleteShader ()
	Deletes the shader using the OpenGL function glDeleteShader(), see also http://www.opengl.org/sdk/docs/man/xhtml/glDeleteShader.xml for more information. More...

unsigned int	handle () const
	The handle of this OpenGL shader object as returned by glCreateShader() More...

Public Member Functions inherited from vl::Object
	Object ()
	Constructor. More...

	Object (const Object &other)
	Copy constructor: copies the name, ref count mutex and user data. More...

Object &	operator= (const Object &other)
	Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string &	objectName () const
	The name of the object, by default set to the object's class name. More...

void	setObjectName (const char *name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setObjectName (const std::string &name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setRefCountMutex (IMutex *mutex)
	The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutex *	refCountMutex ()
	The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutex *	refCountMutex () const
	The mutex used to protect the reference counting of an Object across multiple threads. More...

int	referenceCount () const
	Returns the number of references of an object. More...

void	incReference () const
	Increments the reference count of an object. More...

void	decReference ()
	Decrements the reference count of an object and deletes it if both automaticDelete() is `true` the count reaches 0. More...

void	setAutomaticDelete (bool autodel_on)
	If set to true the Object is deleted when its reference count reaches 0. More...

bool	automaticDelete () const
	If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T *	as ()
	Casts an Object to the specified class. More...

template<class T >
const T *	as () const
	Casts an Object to the specified class. More...

Protected Attributes
EShaderType	mType

std::string	mSource

String	mPath

unsigned int	mHandle

bool	mCompiled

Protected Attributes inherited from vl::Object
std::string	mObjectName

IMutex *	mRefCountMutex

int	mReferenceCount

bool	mAutomaticDelete

Additional Inherited Members
Protected Member Functions inherited from vl::Object
virtual	~Object ()

Detailed Description

For internal use only.

Base class for GLSLVertexShader, GLSLFragmentShader, GLSLGeometryShader, GLSLTessEvaluationShader and GLSLTessControlShader.

See also: GLSLVertexShader, GLSLFragmentShader, GLSLGeometryShader, GLSLTessControlShader, GLSLTessEvaluationShader, GLSLProgram, Effect

Definition at line 50 of file GLSL.hpp.

Constructor & Destructor Documentation

◆ GLSLShader() [1/2]

GLSLShader::GLSLShader ( )

Definition at line 45 of file GLSL.cpp.

References mCompiled, mHandle, mType, and vl::ST_VERTEX_SHADER.

◆ GLSLShader() [2/2]

GLSLShader::GLSLShader	(	EShaderType	type,
		const String &	source_or_path
	)

Definition at line 53 of file GLSL.cpp.

References mCompiled, mHandle, mType, setSource(), and type().

◆ ~GLSLShader()

GLSLShader::~GLSLShader ( )

Definition at line 62 of file GLSL.cpp.

References deleteShader().

Member Function Documentation

◆ compile()

bool GLSLShader::compile ( )

Compiles the shader, see also http://www.opengl.org/sdk/docs/man/xhtml/glCompileShader.xml for more information.

This function also create the shader if handle() == 0 using the OpenGL function glCreateShader(), see also http://www.opengl.org/sdk/docs/man/xhtml/glCreateShader.xml

Definition at line 159 of file GLSL.cpp.

References vl::Log::bug(), compileStatus(), createShader(), vl::String::empty(), vl::Log::error(), handle(), vl::Has_GLSL, infoLog(), vl::log(), mCompiled, mSource, NULL, vl::Object::objectName(), VL_CHECK, VL_CHECK_OGL, and vl::Log::warning().

Referenced by vl::GLSLProgram::attachShader(), and reload().

◆ compileStatus()

bool GLSLShader::compileStatus ( ) const

Returns true if the shader has been succesfully compiled.

The check is done using the OpenGL function glGetShaderiv(), see also http://www.opengl.org/sdk/docs/man/xhtml/glGetShader.xml for more information.

Definition at line 214 of file GLSL.cpp.

References handle(), vl::Has_GLSL, VL_CHECK, and VL_CHECK_OGL.

Referenced by compile().

◆ createShader()

void GLSLShader::createShader ( )

Creates the shader using the OpenGL function glCreateShader(), see also http://www.opengl.org/sdk/docs/man/xhtml/glCreateShader.xml for more information.

Definition at line 249 of file GLSL.cpp.

References handle(), vl::Has_GLSL, mCompiled, mHandle, mType, VL_CHECK, and VL_CHECK_OGL.

Referenced by vl::GLSLProgram::attachShader(), and compile().

◆ deleteShader()

void GLSLShader::deleteShader ( )

Deletes the shader using the OpenGL function glDeleteShader(), see also http://www.opengl.org/sdk/docs/man/xhtml/glDeleteShader.xml for more information.

Definition at line 264 of file GLSL.cpp.

References handle(), vl::Has_GLSL, mCompiled, mHandle, and VL_CHECK.

Referenced by ~GLSLShader().

◆ getShaderSource()

std::string GLSLShader::getShaderSource ( ) const

Retrieves the shader source using glGetShaderSource()

Definition at line 67 of file GLSL.cpp.

References handle(), vl::String::loadText(), vl::String::printf(), source(), and vl::String::splitLines().

Referenced by vlX::VLXClassWrapper_GLSLShader::exportGLSLShader().

◆ handle()

unsigned int vl::GLSLShader::handle ( ) const

inline

The handle of this OpenGL shader object as returned by glCreateShader()

Definition at line 104 of file GLSL.hpp.

◆ infoLog()

String GLSLShader::infoLog ( ) const

Returns a String object containing this shader's info log as returned by glGetShaderInfoLog(), see also http://www.opengl.org/sdk/docs/man/xhtml/glGetShaderInfoLog.xml for more information.

Definition at line 227 of file GLSL.cpp.

References handle(), vl::Has_GLSL, NULL, VL_CHECK, and VL_CHECK_OGL.

Referenced by compile(), vl::GLSLProgram::linkProgram(), and vl::GLSLProgram::programBinary().

◆ path()

const String& vl::GLSLShader::path ( ) const

inline

The path from which the shader was loaded.

Definition at line 78 of file GLSL.hpp.

Referenced by vlX::VLXClassWrapper_GLSLShader::exportGLSLShader(), and reload().

◆ reload()

bool GLSLShader::reload ( )

Reloads the shader source and recompiles it. Returns true on success.

Definition at line 105 of file GLSL.cpp.

References compile(), vl::String::empty(), mPath, path(), and setSource().

◆ setPath()

void vl::GLSLShader::setPath ( const String & path )

inline

The path from which the shader was loaded.

Definition at line 75 of file GLSL.hpp.

Referenced by setSource().

◆ setSource()

void GLSLShader::setSource ( const String & source_or_path )

Sets the sources for this shader and schedules a recompilation for it. If the string passed is a file path the source is loaded from it.

Definition at line 115 of file GLSL.cpp.

References vl::String::clear(), vl::String::count(), vl::String::empty(), vl::Log::error(), vl::String::loadText(), vl::locateFile(), vl::max(), mCompiled, mPath, mSource, vl::Object::setObjectName(), setPath(), vl::String::toStdString(), and VL_CHECK.

Referenced by GLSLShader(), vlX::VLXClassWrapper_GLSLShader::importGLSLShader(), and reload().

◆ setType()

void vl::GLSLShader::setType ( EShaderType type )

inline

Definition at line 64 of file GLSL.hpp.

◆ source()

const std::string& vl::GLSLShader::source ( ) const

inline

Returns the sources for this shader.

Definition at line 72 of file GLSL.hpp.

Referenced by vlX::VLXClassWrapper_GLSLShader::exportGLSLShader(), and getShaderSource().

◆ type()

EShaderType vl::GLSLShader::type ( ) const

inline

Definition at line 66 of file GLSL.hpp.

Referenced by GLSLShader().

Member Data Documentation

◆ mCompiled

bool vl::GLSLShader::mCompiled

protected

Definition at line 111 of file GLSL.hpp.

Referenced by compile(), createShader(), deleteShader(), GLSLShader(), and setSource().

◆ mHandle

unsigned int vl::GLSLShader::mHandle

protected

Definition at line 110 of file GLSL.hpp.

Referenced by vl::GLSLProgram::createProgram(), createShader(), vl::GLSLProgram::deleteProgram(), deleteShader(), vl::GLSLProgram::GLSLProgram(), and GLSLShader().

◆ mPath

String vl::GLSLShader::mPath

protected

Definition at line 109 of file GLSL.hpp.

Referenced by reload(), and setSource().

◆ mSource

std::string vl::GLSLShader::mSource

protected

Definition at line 108 of file GLSL.hpp.

Referenced by compile(), and setSource().

◆ mType

EShaderType vl::GLSLShader::mType

protected

Definition at line 107 of file GLSL.hpp.

Referenced by createShader(), and GLSLShader().

The documentation for this class was generated from the following files:

C:/git/VL/src/vlGraphics/GLSL.hpp
C:/git/VL/src/vlGraphics/GLSL.cpp
