Represents an OpenGL context, possibly a widget or a pbuffer, which can also respond to keyboard, mouse or system events. More...

#include <OpenGLContext.hpp>

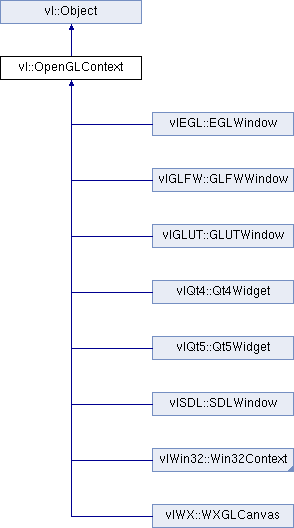

Inheritance diagram for vl::OpenGLContext:

Public Member Functions
	OpenGLContext (int w=0, int h=0)
	Constructor. More...

	~OpenGLContext ()
	Destructor. More...

virtual void	swapBuffers ()=0
	Swaps the back and front buffers to present the last rendering. More...

virtual void	makeCurrent ()=0
	Sets the OpenGL context as current for the calling thread. More...

bool	initGLContext (bool log=true)
	Initializes the supported OpenGL extensions. More...

void	logOpenGLInfo ()
	Logs some information about the OpenGL context. More...

const std::string &	extensions () const
	Returns the list of OpenGL extensions supported separated by '\|' characters. More...

bool	isExtensionSupported (const char *ext_name)
	Returns true if the given extension is supported. More...

void *	getProcAddress (const char *function_name)
	Returns the address of an OpenGL extension function. More...

Framebuffer *	leftFramebuffer ()
	The render target representing the default left framebuffer. More...

const Framebuffer *	leftFramebuffer () const
	The render target representing the default left framebuffer. More...

Framebuffer *	rightFramebuffer ()
	The render target representing the default right framebuffer (if a stereo OpenGL context is present). More...

const Framebuffer *	rightFramebuffer () const
	The render target representing the default right framebuffer (if a stereo OpenGL context is present). More...

Framebuffer *	framebuffer ()
	The default render target (always returns leftFramebuffer()). More...

const Framebuffer *	framebuffer () const
	The default render target (always returns leftFramebuffer()). More...

ref< FramebufferObject >	createFramebufferObject ()
	Equivalent to `"createFramebufferObject(0,0);"`. More...

ref< FramebufferObject >	createFramebufferObject (int width, int height, EReadDrawBuffer draw_buffer=RDB_COLOR_ATTACHMENT0, EReadDrawBuffer read_buffer=RDB_COLOR_ATTACHMENT0)
	Creates a new FramebufferObject (framebuffer object Framebuffer). More...

void	destroyFramebufferObject (FramebufferObject *fbort)
	Destroys the specified FramebufferObject. More...

void	destroyAllFramebufferObjects ()
	Removes all FramebufferObjects belonging to an OpenGLContext. More...

void	destroyAllOpenGLResources ()
	Removes all OpenGL resources handled by the OpenGLContext. More...

virtual void	quitApplication ()
	Asks to the windowing system that is managing the OpenGLContext to quit the application. More...

virtual void	update ()=0
	If the OpenGLContext is a widget this function requests a redraw and generates an updateEvent(). More...

virtual void	setWindowTitle (const String &)
	If the OpenGL context is a top window this function sets its title. More...

virtual bool	setFullscreen (bool)
	If the OpenGL context is a widget this function requests a maximization to fullscreen. More...

virtual bool	fullscreen () const
	If the OpenGL context is a widget this function returns whether it has been maximized to fullscreen. More...

virtual void	show ()
	If the OpenGL context is a widget this function makes it visible to the user. More...

virtual void	hide ()
	If the OpenGL context is a widget this function makes it invisible to the user. More...

virtual void	setPosition (int, int)
	If the OpenGL context is a widget this function sets its position. More...

virtual ivec2	position () const
	If the OpenGL context is a widget this function returns its position. More...

virtual void	setSize (int, int)
	If the OpenGL context is a widget this function sets its size. More...

int	width () const
	Returns the width in pixels of an OpenGLContext. More...

int	height () const
	Returns the height in pixels of an OpenGLContext. More...

virtual void	setMouseVisible (bool)
	If the OpenGL context is a widget this function sets whether the mouse is visible over it or not. More...

virtual bool	mouseVisible () const
	If the OpenGL context is a widget this function returns whether the mouse is visible over it or not. More...

virtual void	setMousePosition (int, int)
	If the OpenGL context is a widget this function sets the mouse position. More...

virtual void	getFocus ()
	If the OpenGL context is a widget this function requests the mouse focus on it. More...

void	setVSyncEnabled (bool enable)
	If the OpenGL context is a widget this function enabled/disables double buffer swapping to the monitor's vertical synch. More...

bool	vsyncEnabled () const
	If the OpenGL context is a widget this function returns whether vsync is enabled or not. More...

virtual void	setContinuousUpdate (bool continuous)
	If the OpenGL context is a widget this function sets whether its area is continuously updated at each frame. More...

bool	continuousUpdate () const
	If the OpenGL context is a widget this function returns whether its area is continuously updated at each frame. More...

void	addEventListener (UIEventListener *el)
	Adds an UIEventListener to be notified of OpenGLContext related events. More...

void	removeEventListener (UIEventListener *el)
	Removes an UIEventListener. More...

void	eraseAllEventListeners ()
	Removes all UIEventListener previously registered. More...

const std::vector< ref< UIEventListener > > &	eventListeners () const
	The currently UIEventListener registered to be notified of OpenGLContext related events. More...

const UIEventListener *	eventListener (int i) const
	Returns the `i-th` UIEventListener registered to an OpenGLContext. More...

UIEventListener *	eventListener (int i)
	Returns the `i-th` UIEventListener registered to an OpenGLContext. More...

int	eventListenerCount () const
	Returns the number of UIEventListener registered to an OpenGLContext. More...

const OpenGLContextFormat &	openglContextInfo () const
	Returns an OpenGLContextFormat structure describing an OpenGLContext. More...

void	setOpenGLContextInfo (const OpenGLContextFormat &info)
	Sets the OpenGLContextFormat associated to an OpenGLContext. More...

void	ignoreNextMouseMoveEvent ()
	Requests not to dispatch the next mouse move event. More...

void	dispatchResizeEvent (int w, int h)
	Dispatches the UIEventListener::resizeEvent() notification to the subscribed UIEventListener objects. More...

void	dispatchMouseMoveEvent (int x, int y)
	Dispatches the UIEventListener::mouseMoveEvent() notification to the subscribed UIEventListener objects. More...

void	dispatchMouseUpEvent (EMouseButton button, int x, int y)
	Dispatches the UIEventListener::mouseUpEvent() notification to the subscribed UIEventListener objects. More...

void	dispatchMouseDownEvent (EMouseButton button, int x, int y)
	Dispatches the UIEventListener::mouseDownEvent() notification to the subscribed UIEventListener objects. More...

void	dispatchMouseWheelEvent (int n)
	Dispatches the UIEventListener::mouseWheelEvent() notification to the subscribed UIEventListener objects. More...

void	dispatchKeyPressEvent (unsigned short unicode_ch, EKey key)
	Dispatches the UIEventListener::keyPressEvent() notification to the subscribed UIEventListener objects. More...

void	dispatchKeyReleaseEvent (unsigned short unicode_ch, EKey key)
	Dispatches the UIEventListener::keyReleaseEvent() notification to the subscribed UIEventListener objects. More...

void	dispatchDestroyEvent ()
	Dispatches the UIEventListener::destroyEvent() notification to the subscribed UIEventListener(s), calls destroyAllOpenGLResources() and eraseAllEventListeners() This event must be issued just before the actual GL context is destroyed. More...

void	dispatchUpdateEvent ()
	Dispatches the UIEventListener::updateEvent() notification to the subscribed UIEventListener objects. More...

void	dispatchVisibilityEvent (bool visible)
	Dispatches the UIEventListener::visibilityEvent() notification to the subscribed UIEventListener objects. More...

void	dispatchInitEvent ()
	Dispatches the UIEventListener::initEvent() notification to the subscribed UIEventListener objects. More...

void	dispatchFileDroppedEvent (const std::vector< String > &files)
	Dispatches the UIEventListener::fileDroppedEvent() notification to the subscribed UIEventListener objects. More...

const std::set< EKey > &	keyboard () const
	Returns the std::set containing the currently pressed keys. More...

bool	isKeyPressed (EKey key) const
	Returns true if the given key is pressed. More...

void	keyPress (EKey key)
	Inserts the specified key in the set of currently active keys - For internal use only. More...

void	keyRelease (EKey key)
	Removes the specified key from the set of currently active keys - For internal use only. More...

bool	isInitialized () const
	Returns true if the OpenGLContext is in an initialized state. More...

int	vertexAttribCount () const
	The number (clamped to VA_MaxAttribCount) of generic vertex attributes as returned by glGet(GL_MAX_VERTEX_ATTRIBS) More...

int	textureImageUnitCount () const
	The number (clamped to VL_MAX_TEXTURE_IMAGE_UNITS) of texture image units supported by the current hardware. More...

int	textureCoordCount () const
	The number (clamped to VL_MAX_LEGACY_TEXTURE_UNITS) of fixed function pipeline texture units supported by the current hardware. More...

bool	hasDoubleBuffer () const
	Returns `true` if an OpenGLContext supports double buffering. More...

void	useGLSLProgram (const GLSLProgram *glsl)
	Activates the given GLSLProgram or unbinds the current one if `glsl` is NULL. More...

void	bindVAS (const IVertexAttribSet *vas, bool use_vbo, bool force)
	Activates the specified vertex attribute set - For internal use only. More...

void	bindVAS_Attribs (const IVertexAttribSet *vas, bool use_vbo)

void	bindVAS_Fixed (const IVertexAttribSet *vas, bool use_vbo)

void	bindVAS_Reset ()

void	applyEnables (const EnableSet *cur)
	Applies an EnableSet to an OpenGLContext - Typically for internal use only. More...

void	applyRenderStates (const RenderStateSet cur, const Camera camera)
	Applies a RenderStateSet to an OpenGLContext - Typically for internal use only. More...

void	resetEnables ()
	Resets all the interanal enable-tables - For internal use only. More...

void	resetRenderStates ()
	Resets all the interanal render-states-tables - For internal use only. More...

void	setDefaultRenderState (const RenderStateSlot &rs_slot)
	Defines the default render state slot to be used by the opengl context. More...

const RenderStateSlot &	defaultRenderState (ERenderState rs)
	Returns the default render state slot used by VL when a specific render state type is left undefined. More...

void	resetContextStates (EResetContextStates start_or_finish)
	Resets the OpenGL states necessary to begin and finish a rendering. - For internal use only. More...

void	setTexUnitBinding (int unit_i, ETextureDimension target)
	Declares that texture unit `unit_i` is currently bound to the specified texture target. - For internal use only. More...

ETextureDimension	texUnitBinding (int unit_i) const
	Returnes the texture target currently active for the specified texture unit. - For internal use only. More...

const GLSLProgram *	glslProgram () const

GLSLProgram *	glslProgram ()

bool	isCleanState (bool verbose)
	Checks whether the OpenGL state is clean or not. More...

const fvec3 &	normal () const

const fvec4 &	color () const

const fvec3 &	secondaryColor () const

const fvec4 &	vertexAttribValue (int i) const

Public Member Functions inherited from vl::Object
	Object ()
	Constructor. More...

	Object (const Object &other)
	Copy constructor: copies the name, ref count mutex and user data. More...

Object &	operator= (const Object &other)
	Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string &	objectName () const
	The name of the object, by default set to the object's class name. More...

void	setObjectName (const char *name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setObjectName (const std::string &name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setRefCountMutex (IMutex *mutex)
	The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutex *	refCountMutex ()
	The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutex *	refCountMutex () const
	The mutex used to protect the reference counting of an Object across multiple threads. More...

int	referenceCount () const
	Returns the number of references of an object. More...

void	incReference () const
	Increments the reference count of an object. More...

void	decReference ()
	Decrements the reference count of an object and deletes it if both automaticDelete() is `true` the count reaches 0. More...

void	setAutomaticDelete (bool autodel_on)
	If set to true the Object is deleted when its reference count reaches 0. More...

bool	automaticDelete () const
	If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T *	as ()
	Casts an Object to the specified class. More...

template<class T >
const T *	as () const
	Casts an Object to the specified class. More...

Static Public Member Functions
static bool	areUniformsColliding (const UniformSet u1, const UniformSet u2)
	Returns `true` if the two UniformSet contain at least one Uniform variable with the same name. More...

Protected Attributes
ref< Framebuffer >	mLeftFramebuffer

ref< Framebuffer >	mRightFramebuffer

std::vector< ref< FramebufferObject > >	mFramebufferObject

std::vector< ref< UIEventListener > >	mEventListeners

std::set< EKey >	mKeyboard

OpenGLContextFormat	mGLContextInfo

int	mVertexAttribCount

int	mTextureImageUnitCount

int	mTextureCoordCount

bool	mMouseVisible

bool	mContinuousUpdate

bool	mIgnoreNextMouseMoveEvent

bool	mFullscreen

bool	mHasDoubleBuffer

bool	mIsInitialized

std::string	mExtensions

RenderStateSlot	mDefaultRenderStates [RS_RenderStateCount]

ref< NaryQuickMap< EEnable, EEnable, EN_EnableCount > >	mCurrentEnableSet

ref< NaryQuickMap< EEnable, EEnable, EN_EnableCount > >	mNewEnableSet

ref< NaryQuickMap< ERenderState, RenderStateSlot, RS_RenderStateCount > >	mCurrentRenderStateSet

ref< NaryQuickMap< ERenderState, RenderStateSlot, RS_RenderStateCount > >	mNewRenderStateSet

ETextureDimension	mTexUnitBinding [VL_MAX_TEXTURE_IMAGE_UNITS]

ref< GLSLProgram >	mGLSLProgram

bool	mGLSLUpdated

const IVertexAttribSet *	mCurVAS

VertexArrayInfo	mVertexArray

VertexArrayInfo	mNormalArray

VertexArrayInfo	mColorArray

VertexArrayInfo	mSecondaryColorArray

VertexArrayInfo	mFogArray

VertexArrayInfo	mTexCoordArray [VA_MaxTexCoordCount]

VertexArrayInfo	mVertexAttrib [VA_MaxAttribCount]

fvec3	mNormal

fvec4	mColor

fvec3	mSecondaryColor

fvec4	mVertexAttribValue [VA_MaxAttribCount]

GLuint	mDefaultVAO

Protected Attributes inherited from vl::Object
std::string	mObjectName

IMutex *	mRefCountMutex

int	mReferenceCount

bool	mAutomaticDelete

Friends
class	VertexAttrib

class	Color

class	SecondaryColor

class	Normal

Additional Inherited Members
Protected Member Functions inherited from vl::Object
virtual	~Object ()

Detailed Description

Represents an OpenGL context, possibly a widget or a pbuffer, which can also respond to keyboard, mouse or system events.

OpenGLContext is an abstract class that wraps a minimal common subset of GUI APIs like Win32, Qt, wxWidgets, SDL, GLUT, etc.
In order to respond to the events generated by the OpenGLContext you must subclass an UIEventListener and bind it to the OpenGLContext using the functions addEventListener(ref<UIEventListener>) and removeEventListener(ref<UIEventListener>).

OpenGLContext Custom Implementation

Key_Alt/Ctrl/Shift events must always be notified before Key_Left/Right-Alt/Ctrl/Shift events.
Always update the mKeyboard structure appropriately especially with respect to Key_[Left/Right]-Alt/Ctrl/Shift events.
When cycling through EventListeners to dispatch the events you must do it on a temporary copy of mEventListeners so that the EventListeners can safely add/remove themselves or other EventListeners to the OpenGLContext itself.

Definition at line 144 of file OpenGLContext.hpp.

Constructor & Destructor Documentation

◆ OpenGLContext()

OpenGLContext::OpenGLContext	(	int	w = `0`,
		int	h = `0`
	)

Constructor.

Definition at line 55 of file OpenGLContext.cpp.

References NULL, vl::RDB_BACK_LEFT, and vl::RDB_BACK_RIGHT.

◆ ~OpenGLContext()

OpenGLContext::~OpenGLContext ( )

Destructor.

Definition at line 92 of file OpenGLContext.cpp.

References VL_TRAP, and vl::Log::warning().

Member Function Documentation

◆ addEventListener()

void OpenGLContext::addEventListener ( UIEventListener * el )

Adds an UIEventListener to be notified of OpenGLContext related events.

This method triggers immediately an UIEventListener::addedListenerEvent() and if the OpenGLContext is initialized also an UIEventListener::initEvent().

Note: An UIEventListener can be associated only to one OpenGLContext at a time.

Definition at line 161 of file OpenGLContext.cpp.

References vl::UIEventListener::addedListenerEvent(), vl::UIEventListener::initEvent(), NULL, and VL_CHECK.

Referenced by vl::Applet::addedListenerEvent().

◆ applyEnables()

void OpenGLContext::applyEnables ( const EnableSet * cur )

Applies an EnableSet to an OpenGLContext - Typically for internal use only.

Definition at line 506 of file OpenGLContext.cpp.

References vl::EnableSet::enables(), vl::Log::error(), vl::Translate_Enable, vl::Translate_Enable_String, and VL_CHECK_OGL.

Referenced by vl::OcclusionCullRenderer::render_pass2(), and vl::Renderer::renderRaw().

◆ applyRenderStates()

void OpenGLContext::applyRenderStates	(	const RenderStateSet *	cur,
		const Camera *	camera
	)

Applies a RenderStateSet to an OpenGLContext - Typically for internal use only.

Definition at line 549 of file OpenGLContext.cpp.

References vl::RenderStateSlot::apply(), vl::Has_Fixed_Function_Pipeline, vl::Has_GL_Version_1_3, vl::Has_GL_Version_1_4, vl::Has_GL_Version_3_0, vl::Has_GL_Version_4_0, vl::Has_GLES, vl::Has_GLES_Version_1_1, vl::Has_GLES_Version_2_0, vl::RenderStateSlot::mRS, NULL, vl::RenderStateSet::renderStates(), vl::RenderStateSet::renderStatesCount(), vl::RS_AlphaFunc, vl::RS_BlendColor, vl::RS_BlendEquation, vl::RS_BlendFunc, vl::RS_ClipPlane0, vl::RS_ClipPlane1, vl::RS_ClipPlane2, vl::RS_ClipPlane3, vl::RS_ClipPlane4, vl::RS_ClipPlane5, vl::RS_Color, vl::RS_ColorMask, vl::RS_CullFace, vl::RS_DepthFunc, vl::RS_DepthMask, vl::RS_DepthRange, vl::RS_Fog, vl::RS_FrontFace, vl::RS_GLSLProgram, vl::RS_Hint, vl::RS_Light0, vl::RS_Light1, vl::RS_Light2, vl::RS_Light3, vl::RS_Light4, vl::RS_Light5, vl::RS_Light6, vl::RS_Light7, vl::RS_LightModel, vl::RS_LineStipple, vl::RS_LineWidth, vl::RS_LogicOp, vl::RS_Material, vl::RS_Normal, vl::RS_PixelTransfer, vl::RS_PointParameter, vl::RS_PointSize, vl::RS_PolygonMode, vl::RS_PolygonOffset, vl::RS_PolygonStipple, vl::RS_RenderStateCount, vl::RS_SampleCoverage, vl::RS_SecondaryColor, vl::RS_ShadeModel, vl::RS_StencilFunc, vl::RS_StencilMask, vl::RS_StencilOp, vl::RS_TexEnv, vl::RS_TexGen, vl::RS_TextureMatrix, vl::RS_TextureSampler, vl::UIEventListener::setEnabled(), vl::RenderStateSlot::type(), VL_CHECK, and VL_CHECK_OGL.

Referenced by vl::OcclusionCullRenderer::render_pass2(), and vl::Renderer::renderRaw().

◆ areUniformsColliding()

bool OpenGLContext::areUniformsColliding	(	const UniformSet *	u1,
		const UniformSet *	u2
	)

static

Returns true if the two UniformSet contain at least one Uniform variable with the same name.

Definition at line 1228 of file OpenGLContext.cpp.

References vl::Log::error(), and vl::UniformSet::uniforms().

Referenced by vl::Renderer::renderRaw().

◆ bindVAS()

void OpenGLContext::bindVAS	(	const IVertexAttribSet *	vas,
		bool	use_vbo,
		bool	force
	)

Activates the specified vertex attribute set - For internal use only.

Parameters

vas	The IVertexAttribSet to be activated. It can be NULL, in which case all vertex attributes are disabled. If `vas` is the same as the last activated IVertexAttribSet then no operation is done.
use_vbo	Whether vertex-buffer-objects should be used when activating the vertex attributes.
force	Binds `vas` even if it was the last to be activated (this is also valid for NULL).

Definition at line 1693 of file OpenGLContext.cpp.

References vl::Has_Fixed_Function_Pipeline, vl::VA_Position, VL_CHECK_OGL, and VL_TRAP.

Referenced by vl::EdgeRenderer::render(), vl::Text::render_Implementation(), vl::CoreText::render_Implementation(), vl::Geometry::render_Implementation(), and vl::Renderer::renderRaw().

◆ bindVAS_Attribs()

void OpenGLContext::bindVAS_Attribs	(	const IVertexAttribSet *	vas,
		bool	use_vbo
	)

Definition at line 1550 of file OpenGLContext.cpp.

References vl::ArrayAbstract::bufferObject(), vl::ArrayAbstract::glSize(), vl::ArrayAbstract::glType(), vl::BufferObject::handle(), vl::ArrayAbstract::interpretation(), vl::ArrayAbstract::normalize(), vl::Buffer::ptr(), vl::VAI_DOUBLE, vl::VAI_INTEGER, vl::VAI_NORMAL, vl::IVertexAttribSet::vertexAttribArray(), VL_CHECK, and VL_CHECK_OGL.

◆ bindVAS_Fixed()

void OpenGLContext::bindVAS_Fixed	(	const IVertexAttribSet *	vas,
		bool	use_vbo
	)

Definition at line 1295 of file OpenGLContext.cpp.

References vl::ArrayAbstract::bufferObject(), vl::IVertexAttribSet::colorArray(), vl::IVertexAttribSet::fogCoordArray(), vl::ArrayAbstract::glSize(), vl::ArrayAbstract::glType(), vl::BufferObject::handle(), vl::IVertexAttribSet::normalArray(), NULL, vl::Buffer::ptr(), vl::IVertexAttribSet::secondaryColorArray(), vl::IVertexAttribSet::texCoordArray(), vl::IVertexAttribSet::vertexArray(), and VL_CHECK_OGL.

◆ bindVAS_Reset()

void OpenGLContext::bindVAS_Reset ( )

Definition at line 1625 of file OpenGLContext.cpp.

References vl::Has_Fixed_Function_Pipeline, NULL, and VL_CHECK_OGL.

◆ color()

const fvec4& vl::OpenGLContext::color ( ) const

inline

Definition at line 576 of file OpenGLContext.hpp.

Referenced by vl::Text::render_Implementation().

◆ continuousUpdate()

bool vl::OpenGLContext::continuousUpdate ( ) const

inline

If the OpenGL context is a widget this function returns whether its area is continuously updated at each frame.

Definition at line 285 of file OpenGLContext.hpp.

Referenced by vlWin32::dispatchUpdate(), vlEGL::dispatchUpdate(), and vlWX::WXGLCanvas::OnIdle().

◆ createFramebufferObject() [1/2]

ref<FramebufferObject> vl::OpenGLContext::createFramebufferObject ( )

inline

Equivalent to "createFramebufferObject(0,0);".

Definition at line 210 of file OpenGLContext.hpp.

References createFramebufferObject(), and vl::RDB_COLOR_ATTACHMENT0.

Referenced by createFramebufferObject().

◆ createFramebufferObject() [2/2]

ref< FramebufferObject > OpenGLContext::createFramebufferObject	(	int	width,
		int	height,
		EReadDrawBuffer	draw_buffer = `RDB_COLOR_ATTACHMENT0`,
		EReadDrawBuffer	read_buffer = `RDB_COLOR_ATTACHMENT0`
	)

Creates a new FramebufferObject (framebuffer object Framebuffer).

Note: A framebuffer object always belongs to an OpenGL context and in order to render on it the appropriate OpenGL context must be active.

Definition at line 101 of file OpenGLContext.cpp.

◆ defaultRenderState()

const RenderStateSlot& vl::OpenGLContext::defaultRenderState ( ERenderState rs )

inline

Returns the default render state slot used by VL when a specific render state type is left undefined.

Definition at line 527 of file OpenGLContext.hpp.

Referenced by vl::Renderer::render().

◆ destroyAllFramebufferObjects()

void OpenGLContext::destroyAllFramebufferObjects ( )

Removes all FramebufferObjects belonging to an OpenGLContext.

Definition at line 150 of file OpenGLContext.cpp.

References NULL.

◆ destroyAllOpenGLResources()

void OpenGLContext::destroyAllOpenGLResources ( )

Removes all OpenGL resources handled by the OpenGLContext.

Definition at line 124 of file OpenGLContext.cpp.

References NULL, vl::RS_RenderStateCount, and vl::TD_TEXTURE_UNKNOWN.

◆ destroyFramebufferObject()

void OpenGLContext::destroyFramebufferObject ( FramebufferObject * fbort )

Destroys the specified FramebufferObject.

Definition at line 109 of file OpenGLContext.cpp.

References NULL.

◆ dispatchDestroyEvent()

void vl::OpenGLContext::dispatchDestroyEvent ( )

inline

Dispatches the UIEventListener::destroyEvent() notification to the subscribed UIEventListener(s), calls destroyAllOpenGLResources() and eraseAllEventListeners() This event must be issued just before the actual GL context is destroyed.

Definition at line 405 of file OpenGLContext.hpp.

Referenced by vlGLUT::GLUTWindow::glut_close_func(), vlWin32::Win32Window::WindowProc(), and vlEGL::EGLWindow::WindowProc().

◆ dispatchFileDroppedEvent()

void vl::OpenGLContext::dispatchFileDroppedEvent ( const std::vector< String > & files )

inline

Dispatches the UIEventListener::fileDroppedEvent() notification to the subscribed UIEventListener objects.

Definition at line 451 of file OpenGLContext.hpp.

Referenced by vlGLFW::GLFWWindow::glfw_drop_callback(), vlWX::WXGLCanvas::OnDropFiles(), vlWin32::Win32Window::WindowProc(), and vlEGL::EGLWindow::WindowProc().

◆ dispatchInitEvent()

void vl::OpenGLContext::dispatchInitEvent ( )

inline

Dispatches the UIEventListener::initEvent() notification to the subscribed UIEventListener objects.

Definition at line 441 of file OpenGLContext.hpp.

Referenced by vlGLUT::GLUTWindow::glut_reshape_func().

◆ dispatchKeyPressEvent()

void vl::OpenGLContext::dispatchKeyPressEvent	(	unsigned short	unicode_ch,
		EKey	key
	)

inline

Dispatches the UIEventListener::keyPressEvent() notification to the subscribed UIEventListener objects.

Definition at line 381 of file OpenGLContext.hpp.

Referenced by vlGLFW::GLFWWindow::glfw_key_callback(), vlGLUT::GLUTWindow::glut_keyboard_func(), vlGLUT::GLUTWindow::glut_special_func(), vlWX::WXGLCanvas::OnKeyDown(), vlWin32::Win32Window::WindowProc(), and vlEGL::EGLWindow::WindowProc().

◆ dispatchKeyReleaseEvent()

void vl::OpenGLContext::dispatchKeyReleaseEvent	(	unsigned short	unicode_ch,
		EKey	key
	)

inline

Dispatches the UIEventListener::keyReleaseEvent() notification to the subscribed UIEventListener objects.

Definition at line 392 of file OpenGLContext.hpp.

Referenced by vlGLFW::GLFWWindow::glfw_key_callback(), vlGLUT::GLUTWindow::glut_keyboard_up_func(), vlGLUT::GLUTWindow::glut_special_up_func(), vlWX::WXGLCanvas::OnKeyUp(), vlWin32::Win32Window::WindowProc(), and vlEGL::EGLWindow::WindowProc().

◆ dispatchMouseDownEvent()

void vl::OpenGLContext::dispatchMouseDownEvent	(	EMouseButton	button,
		int	x,
		int	y
	)

inline

Dispatches the UIEventListener::mouseDownEvent() notification to the subscribed UIEventListener objects.

Definition at line 361 of file OpenGLContext.hpp.

Referenced by vlGLFW::GLFWWindow::glfw_mouse_button_callback(), vlGLUT::GLUTWindow::glut_mouse_func(), vlWX::WXGLCanvas::OnMouseDown(), vlWin32::Win32Window::WindowProc(), and vlEGL::EGLWindow::WindowProc().

◆ dispatchMouseMoveEvent()

void vl::OpenGLContext::dispatchMouseMoveEvent	(	int	x,
		int	y
	)

inline

Dispatches the UIEventListener::mouseMoveEvent() notification to the subscribed UIEventListener objects.

Definition at line 336 of file OpenGLContext.hpp.

Referenced by vlGLFW::GLFWWindow::glfw_cursor_pos_callback(), vlGLUT::GLUTWindow::glut_motion_func(), vlGLUT::GLUTWindow::glut_passive_motion_func(), vlWX::WXGLCanvas::OnMouseMotion(), vlWin32::Win32Window::WindowProc(), and vlEGL::EGLWindow::WindowProc().

◆ dispatchMouseUpEvent()

void vl::OpenGLContext::dispatchMouseUpEvent	(	EMouseButton	button,
		int	x,
		int	y
	)

inline

Dispatches the UIEventListener::mouseUpEvent() notification to the subscribed UIEventListener objects.

Definition at line 351 of file OpenGLContext.hpp.

Referenced by vlGLFW::GLFWWindow::glfw_mouse_button_callback(), vlGLUT::GLUTWindow::glut_mouse_func(), vlWX::WXGLCanvas::OnMouseUp(), vlWin32::Win32Window::WindowProc(), and vlEGL::EGLWindow::WindowProc().

◆ dispatchMouseWheelEvent()

void vl::OpenGLContext::dispatchMouseWheelEvent ( int n )

inline

Dispatches the UIEventListener::mouseWheelEvent() notification to the subscribed UIEventListener objects.

Definition at line 371 of file OpenGLContext.hpp.

Referenced by vlGLFW::GLFWWindow::glfw_scroll_callback(), vlGLUT::GLUTWindow::glut_mouse_wheel_func(), vlWX::WXGLCanvas::OnMouseWheel(), vlWin32::Win32Window::WindowProc(), and vlEGL::EGLWindow::WindowProc().

◆ dispatchResizeEvent()

void vl::OpenGLContext::dispatchResizeEvent	(	int	w,
		int	h
	)

inline

Dispatches the UIEventListener::resizeEvent() notification to the subscribed UIEventListener objects.

Call this function at the beginning if you reimplement it

Definition at line 321 of file OpenGLContext.hpp.

Referenced by vlGLFW::GLFWWindow::glfw_size_callback(), vlGLUT::GLUTWindow::glut_reshape_func(), vlWX::WXGLCanvas::OnSize(), vlWin32::Win32Window::WindowProc(), and vlEGL::EGLWindow::WindowProc().

◆ dispatchUpdateEvent()

void vl::OpenGLContext::dispatchUpdateEvent ( )

inline

Dispatches the UIEventListener::updateEvent() notification to the subscribed UIEventListener objects.

Definition at line 417 of file OpenGLContext.hpp.

Referenced by vlGLFW::GLFWWindow::glfw_refresh_callback(), vlGLUT::GLUTWindow::glut_display_func(), vlWX::WXGLCanvas::OnPaint(), vlWin32::Win32Window::WindowProc(), and vlEGL::EGLWindow::WindowProc().

◆ dispatchVisibilityEvent()

void vl::OpenGLContext::dispatchVisibilityEvent ( bool visible )

inline

Dispatches the UIEventListener::visibilityEvent() notification to the subscribed UIEventListener objects.

Definition at line 427 of file OpenGLContext.hpp.

Referenced by vlGLFW::GLFWWindow::glfw_iconify_callback(), and vlGLUT::GLUTWindow::glut_visibility_func().

◆ eraseAllEventListeners()

void OpenGLContext::eraseAllEventListeners ( )

Removes all UIEventListener previously registered.

Definition at line 192 of file OpenGLContext.cpp.

References NULL, and VL_CHECK.

Referenced by vlWX::WXGLCanvas::quitApplication().

◆ eventListener() [1/2]

const UIEventListener* vl::OpenGLContext::eventListener ( int i ) const

inline

Returns the i-th UIEventListener registered to an OpenGLContext.

Definition at line 302 of file OpenGLContext.hpp.

◆ eventListener() [2/2]

UIEventListener* vl::OpenGLContext::eventListener ( int i )

inline

Returns the i-th UIEventListener registered to an OpenGLContext.

Definition at line 305 of file OpenGLContext.hpp.

◆ eventListenerCount()

int vl::OpenGLContext::eventListenerCount ( ) const

inline

Returns the number of UIEventListener registered to an OpenGLContext.

Definition at line 308 of file OpenGLContext.hpp.

◆ eventListeners()

const std::vector< ref<UIEventListener> >& vl::OpenGLContext::eventListeners ( ) const

inline

The currently UIEventListener registered to be notified of OpenGLContext related events.

Definition at line 299 of file OpenGLContext.hpp.

◆ extensions()

const std::string& vl::OpenGLContext::extensions ( ) const

inline

Returns the list of OpenGL extensions supported separated by '|' characters.

Definition at line 172 of file OpenGLContext.hpp.

◆ framebuffer() [1/2]

Framebuffer* vl::OpenGLContext::framebuffer ( )

inline

The default render target (always returns leftFramebuffer()).

The returned Framebuffer's dimensions will be automatically updated to the OpenGLContext's dimensions.

Definition at line 203 of file OpenGLContext.hpp.

Referenced by vl::GhostCameraManipulator::enableEvent(), vlGLUT::GLUTWindow::glut_reshape_func(), vl::TrackballManipulator::mouseDownEvent(), vl::GhostCameraManipulator::mouseMoveEvent(), vl::TrackballManipulator::mouseMoveEvent(), vlWin32::Win32Window::WindowProc(), and vlEGL::EGLWindow::WindowProc().

◆ framebuffer() [2/2]

const Framebuffer* vl::OpenGLContext::framebuffer ( ) const

inline

The default render target (always returns leftFramebuffer()).

The returned Framebuffer's dimensions will be automatically updated to the OpenGLContext's dimensions.

Definition at line 207 of file OpenGLContext.hpp.

◆ fullscreen()

virtual bool vl::OpenGLContext::fullscreen ( ) const

inlinevirtual

If the OpenGL context is a widget this function returns whether it has been maximized to fullscreen.

Definition at line 240 of file OpenGLContext.hpp.

References vl::OpenGLContextFormat::mFullscreen.

Referenced by vlWX::WXGLCanvas::setFullscreen().

◆ getFocus()

virtual void vl::OpenGLContext::getFocus ( )

inlinevirtual

If the OpenGL context is a widget this function requests the mouse focus on it.

Reimplemented in vlQt4::Qt4Widget, vlQt5::Qt5Widget, vlGLFW::GLFWWindow, vlGLUT::GLUTWindow, vlWX::WXGLCanvas, vlWin32::Win32Context, and vlEGL::EGLWindow.

Definition at line 273 of file OpenGLContext.hpp.

◆ getProcAddress()

void * OpenGLContext::getProcAddress ( const char * function_name )

Returns the address of an OpenGL extension function.

Definition at line 326 of file OpenGLContext.cpp.

References vl::getGLProcAddress().

◆ glslProgram() [1/2]

const GLSLProgram* vl::OpenGLContext::glslProgram ( ) const

inline

Definition at line 546 of file OpenGLContext.hpp.

◆ glslProgram() [2/2]

GLSLProgram* vl::OpenGLContext::glslProgram ( )

inline

Definition at line 547 of file OpenGLContext.hpp.

◆ hasDoubleBuffer()

bool vl::OpenGLContext::hasDoubleBuffer ( ) const

inline

Returns true if an OpenGLContext supports double buffering.

Definition at line 486 of file OpenGLContext.hpp.

References vl::OpenGLContextFormat::mHasDoubleBuffer.

◆ height()

int vl::OpenGLContext::height ( ) const

inline

Returns the height in pixels of an OpenGLContext.

Definition at line 261 of file OpenGLContext.hpp.

Referenced by vl::FlatManipulator::mouseInViewport(), and vlGLUT::GLUTWindow::setFullscreen().

◆ hide()

virtual void vl::OpenGLContext::hide ( )

inlinevirtual

If the OpenGL context is a widget this function makes it invisible to the user.

Reimplemented in vlQt4::Qt4Widget, vlQt5::Qt5Widget, vlGLFW::GLFWWindow, vlGLUT::GLUTWindow, vlWX::WXGLCanvas, vlWin32::Win32Context, and vlEGL::EGLWindow.

Definition at line 246 of file OpenGLContext.hpp.

◆ ignoreNextMouseMoveEvent()

void vl::OpenGLContext::ignoreNextMouseMoveEvent ( )

inline

Requests not to dispatch the next mouse move event.

Definition at line 317 of file OpenGLContext.hpp.

Referenced by vl::GhostCameraManipulator::enableEvent(), and vl::GhostCameraManipulator::mouseMoveEvent().

◆ initGLContext()

bool OpenGLContext::initGLContext ( bool log = true )

Initializes the supported OpenGL extensions.

Definition at line 234 of file OpenGLContext.cpp.

References vl::Log::error(), vl::Has_GL_Version_1_3, vl::Has_GL_Version_2_0, vl::Has_GLES_Version_1_1, vl::Has_GLSL, vl::initializeOpenGL(), vl::Is_OpenGL_Core_Profile, vl::VA_MaxAttribCount, VL_CHECK_OGL, and VL_TRAP.

Referenced by vlGLUT::GLUTWindow::initGLUTWindow().

◆ isCleanState()

bool OpenGLContext::isCleanState ( bool verbose )

Checks whether the OpenGL state is clean or not.

Clean state conditions:

All functionalities must be disabled, no GL_LIGHTING, GL_DEPTH_TEST, GL_LIGHTn, GL_CLIP_PLANEn etc. enabled, with the sole exception of GL_MULTISAMPLE and GL_DITHER.
All buffer objects targets such as GL_ARRAY_BUFFER, GL_ELEMENT_ARRAY_BUFFER etc. must be bound to buffer object #0.
Current texture unit and client texture unit must be #0.
All texture matrices must be set to identity.
All texture targets must be bound to texture #0.
All GL_TEXTURE_COORD_ARRAYs must be disabled.
All texture targets such as GL_TEXTURE_1D, GL_TEXTURE_2D etc. must be disabled.
All texture targets should be bound to texture #0.
All texture coordinate generation modes such as GL_TEXTURE_GEN_S/T/R/Q must be disable for all texture units.
All vertex arrays such as GL_COLOR_ARRAY, GL_NORMAL_ARRAY etc. must be disabled, including the ones enabled with glEnableVertexAttribArray()
NOTE: blending function must be set to glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA).
Color write-mask should be glColorMask(GL_TRUE ,GL_TRUE, GL_TRUE, GL_TRUE).
Depth write-mask should be glDepthMask(GL_TRUE).
Polygon mode should be glPolygonMode(GL_FRONT_AND_BACK, GL_FILL).
In general all OpenGL render states should be set to their default values.

Definition at line 695 of file OpenGLContext.cpp.

References vl::String::empty(), vl::EN_DITHER, vl::EN_EnableCount, vl::EN_MULTISAMPLE, vl::Log::error(), vl::Has_BufferObject, vl::Has_Cubemap_Textures, vl::Has_Fixed_Function_Pipeline, vl::Has_GL_Version_1_1, vl::Has_GL_Version_1_3, vl::Has_GL_Version_1_4, vl::Has_GL_Version_2_0, vl::Has_GL_Version_2_1, vl::Has_GLES, vl::Has_GLES_Version_1_1, vl::Has_GLSL, vl::Has_Multitexture, vl::Has_Primitive_Restart, vl::Has_Texture_3D, vl::Has_Texture_Array, vl::Has_Texture_Buffer, vl::Has_Texture_Multisample, vl::Has_Texture_Rectangle, vl::Has_Transform_Feedback, vl::Is_Enable_Supported, vl::Is_OpenGL_Core_Profile, vl::Translate_Enable, vl::Translate_Enable_String, and VL_CHECK_OGL.

Referenced by vl::Renderer::render().

◆ isExtensionSupported()

bool OpenGLContext::isExtensionSupported ( const char * ext_name )

Returns true if the given extension is supported.

Note: This is a relatively slow function, don't use it inside loops and similar.

Definition at line 308 of file OpenGLContext.cpp.

◆ isInitialized()

bool vl::OpenGLContext::isInitialized ( ) const

inline

Returns true if the OpenGLContext is in an initialized state.

Definition at line 473 of file OpenGLContext.hpp.

◆ isKeyPressed()

bool vl::OpenGLContext::isKeyPressed ( EKey key ) const

inline

Returns true if the given key is pressed.

Definition at line 464 of file OpenGLContext.hpp.

Referenced by vl::GhostCameraManipulator::updateEvent().

◆ keyboard()

const std::set<EKey>& vl::OpenGLContext::keyboard ( ) const

inline

Returns the std::set containing the currently pressed keys.

Definition at line 461 of file OpenGLContext.hpp.

◆ keyPress()

void vl::OpenGLContext::keyPress ( EKey key )

inline

Inserts the specified key in the set of currently active keys - For internal use only.

Definition at line 467 of file OpenGLContext.hpp.

Referenced by vlGLUT::GLUTWindow::updateModifiers().

◆ keyRelease()

void vl::OpenGLContext::keyRelease ( EKey key )

inline

Removes the specified key from the set of currently active keys - For internal use only.

Definition at line 470 of file OpenGLContext.hpp.

Referenced by vlGLUT::GLUTWindow::updateModifiers().

◆ leftFramebuffer() [1/2]

Framebuffer* vl::OpenGLContext::leftFramebuffer ( )

inline

The render target representing the default left framebuffer.

It's basically just a Framebuffer with both draw-buffer and read-buffer set to RDB_BACK_LEFT by default. The returned Framebuffer's dimensions will be automatically updated to the OpenGLContext's dimensions.

Definition at line 184 of file OpenGLContext.hpp.

◆ leftFramebuffer() [2/2]

const Framebuffer* vl::OpenGLContext::leftFramebuffer ( ) const

inline

The render target representing the default left framebuffer.

It's basically just a Framebuffer with both draw-buffer and read-buffer set to RDB_BACK_LEFT by default. The returned Framebuffer's dimensions will be automatically updated to the OpenGLContext's dimensions.

Definition at line 189 of file OpenGLContext.hpp.

◆ logOpenGLInfo()

void OpenGLContext::logOpenGLInfo ( )

Logs some information about the OpenGL context.

Definition at line 332 of file OpenGLContext.cpp.

References vl::Log::debug(), vl::Has_BufferObject, vl::Has_FBO, vl::Has_Fixed_Function_Pipeline, vl::Has_GL_Version_1_2, vl::Has_GL_Version_1_3, vl::Has_GL_Version_2_0, vl::Has_GL_Version_3_0, vl::Has_GL_Version_4_0, vl::Has_GL_Version_4_1, vl::Has_GLES_Version_1_1, vl::Has_GLES_Version_2_0, vl::Has_GLSL, vl::Has_PBO, and VL_CHECK_OGL.

◆ makeCurrent()

virtual void vl::OpenGLContext::makeCurrent ( )

pure virtual

Sets the OpenGL context as current for the calling thread.

Implemented in vlQt4::Qt4Widget, vlQt5::Qt5Widget, vlSDL::SDLWindow, vlGLUT::GLUTWindow, vlGLFW::GLFWWindow, vlWX::WXGLCanvas, vlWin32::Win32Context, and vlEGL::EGLWindow.

◆ mouseVisible()

virtual bool vl::OpenGLContext::mouseVisible ( ) const

inlinevirtual

If the OpenGL context is a widget this function returns whether the mouse is visible over it or not.

Definition at line 267 of file OpenGLContext.hpp.

Referenced by vlWX::WXGLCanvas::setMouseVisible().

◆ normal()

const fvec3& vl::OpenGLContext::normal ( ) const

inline

Definition at line 575 of file OpenGLContext.hpp.

Referenced by vl::Text::render_Implementation().

◆ openglContextInfo()

const OpenGLContextFormat& vl::OpenGLContext::openglContextInfo ( ) const

inline

Returns an OpenGLContextFormat structure describing an OpenGLContext.

Definition at line 311 of file OpenGLContext.hpp.

◆ position()

virtual ivec2 vl::OpenGLContext::position ( ) const

inlinevirtual

If the OpenGL context is a widget this function returns its position.

Reimplemented in vlQt4::Qt4Widget, vlQt5::Qt5Widget, vlGLFW::GLFWWindow, vlGLUT::GLUTWindow, vlWX::WXGLCanvas, vlWin32::Win32Context, and vlEGL::EGLWindow.

Definition at line 252 of file OpenGLContext.hpp.

◆ quitApplication()

virtual void vl::OpenGLContext::quitApplication ( )

inlinevirtual

Asks to the windowing system that is managing the OpenGLContext to quit the application.

Reimplemented in vlQt4::Qt4Widget, vlQt5::Qt5Widget, vlWin32::Win32Context, vlWX::WXGLCanvas, vlGLUT::GLUTWindow, vlGLFW::GLFWWindow, vlSDL::SDLWindow, and vlEGL::EGLWindow.

Definition at line 228 of file OpenGLContext.hpp.

Referenced by vl::Applet::keyReleaseEvent().

◆ removeEventListener()

void OpenGLContext::removeEventListener ( UIEventListener * el )

Removes an UIEventListener.

Definition at line 175 of file OpenGLContext.cpp.

References NULL, vl::UIEventListener::removedListenerEvent(), and VL_CHECK.

Referenced by vl::Applet::destroyEvent(), and vl::Applet::removedListenerEvent().

◆ resetContextStates()

void OpenGLContext::resetContextStates ( EResetContextStates start_or_finish )

Resets the OpenGL states necessary to begin and finish a rendering. - For internal use only.

Definition at line 1250 of file OpenGLContext.cpp.

References vl::globalSettings(), vl::Is_OpenGL_Core_Profile, NULL, vl::RCS_RenderingStarted, and VL_CHECK_OGL.

Referenced by vl::Rendering::render().

◆ resetEnables()

void OpenGLContext::resetEnables ( )

Resets all the interanal enable-tables - For internal use only.

Definition at line 690 of file OpenGLContext.cpp.

Referenced by vl::OcclusionCullRenderer::render_pass2().

◆ resetRenderStates()

void OpenGLContext::resetRenderStates ( )

Resets all the interanal render-states-tables - For internal use only.

Definition at line 684 of file OpenGLContext.cpp.

Referenced by vl::OcclusionCullRenderer::render_pass2().

◆ rightFramebuffer() [1/2]

Framebuffer* vl::OpenGLContext::rightFramebuffer ( )

inline

The render target representing the default right framebuffer (if a stereo OpenGL context is present).

It's basically just a Framebuffer with both draw-buffer and read-buffer set to RDB_BACK_RIGHT by default. The returned Framebuffer's dimensions will be automatically updated to the OpenGLContext's dimensions.

Definition at line 194 of file OpenGLContext.hpp.

◆ rightFramebuffer() [2/2]

const Framebuffer* vl::OpenGLContext::rightFramebuffer ( ) const

inline

The render target representing the default right framebuffer (if a stereo OpenGL context is present).

It's basically just a Framebuffer with both draw-buffer and read-buffer set to RDB_BACK_RIGHT by default. The returned Framebuffer's dimensions will be automatically updated to the OpenGLContext's dimensions.

Definition at line 199 of file OpenGLContext.hpp.

◆ secondaryColor()

const fvec3& vl::OpenGLContext::secondaryColor ( ) const

inline

Definition at line 577 of file OpenGLContext.hpp.

◆ setContinuousUpdate()

virtual void vl::OpenGLContext::setContinuousUpdate ( bool continuous )

inlinevirtual

If the OpenGL context is a widget this function sets whether its area is continuously updated at each frame.

Reimplemented in vlQt4::Qt4Widget, and vlQt5::Qt5Widget.

Definition at line 282 of file OpenGLContext.hpp.

Referenced by vl::GhostCameraManipulator::enableEvent(), vl::FlatManipulator::enableEvent(), vl::TrackballManipulator::enableEvent(), and vl::Applet::keyReleaseEvent().

◆ setDefaultRenderState()

void vl::OpenGLContext::setDefaultRenderState ( const RenderStateSlot & rs_slot )

inline

Defines the default render state slot to be used by the opengl context.

Definition at line 516 of file OpenGLContext.hpp.

References vl::RenderStateSlot::apply(), NULL, vl::RenderStateSlot::type(), and VL_CHECK_OGL.

Referenced by vl::Renderer::render().

◆ setFullscreen()

virtual bool vl::OpenGLContext::setFullscreen ( bool )

inlinevirtual

If the OpenGL context is a widget this function requests a maximization to fullscreen.

Reimplemented in vlQt4::Qt4Widget, vlQt5::Qt5Widget, vlWin32::Win32Context, vlGLFW::GLFWWindow, vlGLUT::GLUTWindow, and vlWX::WXGLCanvas.

Definition at line 237 of file OpenGLContext.hpp.

References vl::OpenGLContextFormat::mFullscreen.

Referenced by vl::Applet::keyReleaseEvent().

◆ setMousePosition()

virtual void vl::OpenGLContext::setMousePosition	(	int	,
		int
	)

inlinevirtual

If the OpenGL context is a widget this function sets the mouse position.

Reimplemented in vlQt4::Qt4Widget, vlQt5::Qt5Widget, vlGLFW::GLFWWindow, vlWX::WXGLCanvas, vlSDL::SDLWindow, vlWin32::Win32Context, vlEGL::EGLWindow, and vlGLUT::GLUTWindow.

Definition at line 270 of file OpenGLContext.hpp.

Referenced by vl::GhostCameraManipulator::enableEvent(), and vl::GhostCameraManipulator::mouseMoveEvent().

◆ setMouseVisible()

virtual void vl::OpenGLContext::setMouseVisible ( bool )

inlinevirtual

If the OpenGL context is a widget this function sets whether the mouse is visible over it or not.

Reimplemented in vlQt4::Qt4Widget, vlQt5::Qt5Widget, vlGLFW::GLFWWindow, vlWX::WXGLCanvas, vlWin32::Win32Context, vlSDL::SDLWindow, vlGLUT::GLUTWindow, and vlEGL::EGLWindow.

Definition at line 264 of file OpenGLContext.hpp.

Referenced by vl::GhostCameraManipulator::enableEvent(), vl::FlatManipulator::enableEvent(), and vl::TrackballManipulator::enableEvent().

◆ setOpenGLContextInfo()

void vl::OpenGLContext::setOpenGLContextInfo ( const OpenGLContextFormat & info )

inline

Sets the OpenGLContextFormat associated to an OpenGLContext.

Definition at line 314 of file OpenGLContext.hpp.

Referenced by vlGLUT::GLUTWindow::initGLUTWindow().

◆ setPosition()

virtual void vl::OpenGLContext::setPosition	(	int	,
		int
	)

inlinevirtual

If the OpenGL context is a widget this function sets its position.

Reimplemented in vlQt4::Qt4Widget, vlQt5::Qt5Widget, vlGLFW::GLFWWindow, vlGLUT::GLUTWindow, vlWX::WXGLCanvas, vlWin32::Win32Context, vlEGL::EGLWindow, and vlSDL::SDLWindow.

Definition at line 249 of file OpenGLContext.hpp.

◆ setSize()

virtual void vl::OpenGLContext::setSize	(	int	,
		int
	)

inlinevirtual

If the OpenGL context is a widget this function sets its size.

Reimplemented in vlQt4::Qt4Widget, vlQt5::Qt5Widget, vlGLFW::GLFWWindow, vlGLUT::GLUTWindow, vlWin32::Win32Context, vlWX::WXGLCanvas, and vlEGL::EGLWindow.

Definition at line 255 of file OpenGLContext.hpp.

◆ setTexUnitBinding()

void vl::OpenGLContext::setTexUnitBinding	(	int	unit_i,
		ETextureDimension	target
	)

inline

Declares that texture unit unit_i is currently bound to the specified texture target. - For internal use only.

Definition at line 533 of file OpenGLContext.hpp.

References VL_CHECK.

Referenced by vl::TextureSampler::apply().

◆ setVSyncEnabled()

void OpenGLContext::setVSyncEnabled ( bool enable )

If the OpenGL context is a widget this function enabled/disables double buffer swapping to the monitor's vertical synch.

Definition at line 206 of file OpenGLContext.cpp.

Referenced by vlGLUT::GLUTWindow::initGLUTWindow().

◆ setWindowTitle()

virtual void vl::OpenGLContext::setWindowTitle ( const String & )

inlinevirtual

If the OpenGL context is a top window this function sets its title.

Reimplemented in vlQt4::Qt4Widget, vlQt5::Qt5Widget, vlGLFW::GLFWWindow, vlGLUT::GLUTWindow, vlWX::WXGLCanvas, vlSDL::SDLWindow, vlEGL::EGLWindow, and vlWin32::Win32Context.

Definition at line 234 of file OpenGLContext.hpp.

◆ show()

virtual void vl::OpenGLContext::show ( )

inlinevirtual

If the OpenGL context is a widget this function makes it visible to the user.

Reimplemented in vlQt4::Qt4Widget, vlQt5::Qt5Widget, vlGLFW::GLFWWindow, vlGLUT::GLUTWindow, vlWX::WXGLCanvas, vlEGL::EGLWindow, and vlWin32::Win32Context.

Definition at line 243 of file OpenGLContext.hpp.

◆ swapBuffers()

virtual void vl::OpenGLContext::swapBuffers ( )

pure virtual

Swaps the back and front buffers to present the last rendering.

Implemented in vlQt4::Qt4Widget, vlQt5::Qt5Widget, vlGLUT::GLUTWindow, vlGLFW::GLFWWindow, vlWX::WXGLCanvas, vlWin32::Win32Context, vlSDL::SDLWindow, and vlEGL::EGLWindow.

Referenced by vl::Applet::updateEvent().

◆ textureCoordCount()

int vl::OpenGLContext::textureCoordCount ( ) const

inline

The number (clamped to VL_MAX_LEGACY_TEXTURE_UNITS) of fixed function pipeline texture units supported by the current hardware.

This is the number of texture units that support vl::TexEnv, vl::TexGen, vl::TextureMatrix and glClientActiveTexture().

Definition at line 483 of file OpenGLContext.hpp.

◆ textureImageUnitCount()

int vl::OpenGLContext::textureImageUnitCount ( ) const

inline

The number (clamped to VL_MAX_TEXTURE_IMAGE_UNITS) of texture image units supported by the current hardware.

Definition at line 479 of file OpenGLContext.hpp.

◆ texUnitBinding()

ETextureDimension vl::OpenGLContext::texUnitBinding ( int unit_i ) const

inline

Returnes the texture target currently active for the specified texture unit. - For internal use only.

Definition at line 540 of file OpenGLContext.hpp.

References VL_CHECK.

Referenced by vl::TextureSampler::apply().

◆ update()

virtual void vl::OpenGLContext::update ( )

pure virtual

If the OpenGLContext is a widget this function requests a redraw and generates an updateEvent().

Implemented in vlQt4::Qt4Widget, vlQt5::Qt5Widget, vlSDL::SDLWindow, vlWX::WXGLCanvas, vlGLFW::GLFWWindow, vlGLUT::GLUTWindow, vlWin32::Win32Context, and vlEGL::EGLWindow.

Referenced by vl::Applet::keyReleaseEvent(), vl::FlatManipulator::mouseMoveEvent(), and vl::TrackballManipulator::mouseMoveEvent().

◆ useGLSLProgram()

void OpenGLContext::useGLSLProgram ( const GLSLProgram * glsl )

Activates the given GLSLProgram or unbinds the current one if glsl is NULL.

Definition at line 1744 of file OpenGLContext.cpp.

References vl::Log::bug(), vl::GLSLProgram::handle(), vl::Has_GLSL, vl::GLSLProgram::linked(), NULL, vl::Object::objectName(), vl::GLSLProgram::shaderCount(), VL_CHECK, and VL_CHECK_OGL.

Referenced by vl::GLSLProgram::apply().

◆ vertexAttribCount()

int vl::OpenGLContext::vertexAttribCount ( ) const

inline

The number (clamped to VA_MaxAttribCount) of generic vertex attributes as returned by glGet(GL_MAX_VERTEX_ATTRIBS)

Definition at line 476 of file OpenGLContext.hpp.

◆ vertexAttribValue()

const fvec4& vl::OpenGLContext::vertexAttribValue ( int i ) const

inline

Definition at line 578 of file OpenGLContext.hpp.

References vl::VA_MaxAttribCount, and VL_CHECK.

◆ vsyncEnabled()

bool OpenGLContext::vsyncEnabled ( ) const

If the OpenGL context is a widget this function returns whether vsync is enabled or not.

Definition at line 222 of file OpenGLContext.cpp.

◆ width()

int vl::OpenGLContext::width ( ) const

inline

Returns the width in pixels of an OpenGLContext.

Definition at line 258 of file OpenGLContext.hpp.

Referenced by vlGLUT::GLUTWindow::setFullscreen().

Friends And Related Function Documentation

◆ Color

friend class Color

friend

Definition at line 148 of file OpenGLContext.hpp.

◆ Normal

friend class Normal

friend

Definition at line 150 of file OpenGLContext.hpp.

◆ SecondaryColor

friend class SecondaryColor

friend

Definition at line 149 of file OpenGLContext.hpp.

◆ VertexAttrib

friend class VertexAttrib

friend

Definition at line 147 of file OpenGLContext.hpp.

Member Data Documentation

◆ mColor

fvec4 vl::OpenGLContext::mColor

protected

Definition at line 640 of file OpenGLContext.hpp.

Referenced by vl::Color::apply().

◆ mColorArray

VertexArrayInfo vl::OpenGLContext::mColorArray

protected

Definition at line 632 of file OpenGLContext.hpp.

◆ mContinuousUpdate

bool vl::OpenGLContext::mContinuousUpdate

protected

Definition at line 591 of file OpenGLContext.hpp.

◆ mCurrentEnableSet

ref< NaryQuickMap<EEnable, EEnable, EN_EnableCount> > vl::OpenGLContext::mCurrentEnableSet

protected

Definition at line 604 of file OpenGLContext.hpp.

◆ mCurrentRenderStateSet

ref< NaryQuickMap<ERenderState, RenderStateSlot, RS_RenderStateCount> > vl::OpenGLContext::mCurrentRenderStateSet

protected

Definition at line 608 of file OpenGLContext.hpp.

◆ mCurVAS

const IVertexAttribSet* vl::OpenGLContext::mCurVAS

protected

Definition at line 629 of file OpenGLContext.hpp.

◆ mDefaultRenderStates

RenderStateSlot vl::OpenGLContext::mDefaultRenderStates[RS_RenderStateCount]

protected

Definition at line 601 of file OpenGLContext.hpp.

◆ mDefaultVAO

GLuint vl::OpenGLContext::mDefaultVAO

protected

Definition at line 643 of file OpenGLContext.hpp.

◆ mEventListeners

std::vector< ref<UIEventListener> > vl::OpenGLContext::mEventListeners

protected

Definition at line 584 of file OpenGLContext.hpp.

◆ mExtensions

std::string vl::OpenGLContext::mExtensions

protected

Definition at line 596 of file OpenGLContext.hpp.

◆ mFogArray

VertexArrayInfo vl::OpenGLContext::mFogArray

protected

Definition at line 634 of file OpenGLContext.hpp.

◆ mFramebufferObject

std::vector< ref<FramebufferObject> > vl::OpenGLContext::mFramebufferObject

protected

Definition at line 583 of file OpenGLContext.hpp.

◆ mFullscreen

bool vl::OpenGLContext::mFullscreen

protected

Definition at line 593 of file OpenGLContext.hpp.

Referenced by vlGLUT::GLUTWindow::initGLUTWindow(), vlWX::WXGLCanvas::setFullscreen(), and vlGLUT::GLUTWindow::setFullscreen().

◆ mGLContextInfo

OpenGLContextFormat vl::OpenGLContext::mGLContextInfo

protected

Definition at line 586 of file OpenGLContext.hpp.

◆ mGLSLProgram

ref<GLSLProgram> vl::OpenGLContext::mGLSLProgram

protected

Definition at line 615 of file OpenGLContext.hpp.

◆ mGLSLUpdated

bool vl::OpenGLContext::mGLSLUpdated

protected

Definition at line 616 of file OpenGLContext.hpp.

◆ mHasDoubleBuffer

bool vl::OpenGLContext::mHasDoubleBuffer

protected

Definition at line 594 of file OpenGLContext.hpp.

◆ mIgnoreNextMouseMoveEvent

bool vl::OpenGLContext::mIgnoreNextMouseMoveEvent

protected

Definition at line 592 of file OpenGLContext.hpp.

◆ mIsInitialized

bool vl::OpenGLContext::mIsInitialized

protected

Definition at line 595 of file OpenGLContext.hpp.

◆ mKeyboard

std::set<EKey> vl::OpenGLContext::mKeyboard

protected

Definition at line 585 of file OpenGLContext.hpp.

◆ mLeftFramebuffer

ref<Framebuffer> vl::OpenGLContext::mLeftFramebuffer

protected

Definition at line 581 of file OpenGLContext.hpp.

◆ mMouseVisible

bool vl::OpenGLContext::mMouseVisible

protected

Definition at line 590 of file OpenGLContext.hpp.

Referenced by vlGLUT::GLUTWindow::setMouseVisible(), and vlWX::WXGLCanvas::setMouseVisible().

◆ mNewEnableSet

ref< NaryQuickMap<EEnable, EEnable, EN_EnableCount> > vl::OpenGLContext::mNewEnableSet

protected

Definition at line 605 of file OpenGLContext.hpp.

◆ mNewRenderStateSet

ref< NaryQuickMap<ERenderState, RenderStateSlot, RS_RenderStateCount> > vl::OpenGLContext::mNewRenderStateSet

protected

Definition at line 609 of file OpenGLContext.hpp.

◆ mNormal

fvec3 vl::OpenGLContext::mNormal

protected

Definition at line 639 of file OpenGLContext.hpp.

Referenced by vl::Normal::apply().

◆ mNormalArray

VertexArrayInfo vl::OpenGLContext::mNormalArray

protected

Definition at line 631 of file OpenGLContext.hpp.

◆ mRightFramebuffer

ref<Framebuffer> vl::OpenGLContext::mRightFramebuffer

protected

Definition at line 582 of file OpenGLContext.hpp.

◆ mSecondaryColor

fvec3 vl::OpenGLContext::mSecondaryColor

protected

Definition at line 641 of file OpenGLContext.hpp.

Referenced by vl::SecondaryColor::apply().

◆ mSecondaryColorArray

VertexArrayInfo vl::OpenGLContext::mSecondaryColorArray

protected

Definition at line 633 of file OpenGLContext.hpp.

◆ mTexCoordArray

VertexArrayInfo vl::OpenGLContext::mTexCoordArray[VA_MaxTexCoordCount]

protected

Definition at line 635 of file OpenGLContext.hpp.

◆ mTextureCoordCount

int vl::OpenGLContext::mTextureCoordCount

protected

Definition at line 589 of file OpenGLContext.hpp.

◆ mTextureImageUnitCount

int vl::OpenGLContext::mTextureImageUnitCount

protected

Definition at line 588 of file OpenGLContext.hpp.

◆ mTexUnitBinding

ETextureDimension vl::OpenGLContext::mTexUnitBinding[VL_MAX_TEXTURE_IMAGE_UNITS]

protected

Definition at line 612 of file OpenGLContext.hpp.

◆ mVertexArray

VertexArrayInfo vl::OpenGLContext::mVertexArray

protected

Definition at line 630 of file OpenGLContext.hpp.

◆ mVertexAttrib

VertexArrayInfo vl::OpenGLContext::mVertexAttrib[VA_MaxAttribCount]

protected

Definition at line 636 of file OpenGLContext.hpp.

◆ mVertexAttribCount

int vl::OpenGLContext::mVertexAttribCount

protected

Definition at line 587 of file OpenGLContext.hpp.

◆ mVertexAttribValue

fvec4 vl::OpenGLContext::mVertexAttribValue[VA_MaxAttribCount]

protected

Definition at line 642 of file OpenGLContext.hpp.

Referenced by vl::VertexAttrib::apply().

The documentation for this class was generated from the following files:

C:/git/VL/src/vlGraphics/OpenGLContext.hpp
C:/git/VL/src/vlGraphics/OpenGLContext.cpp

Public Member Functions

Static Public Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ OpenGLContext()

◆ ~OpenGLContext()

Member Function Documentation

◆ addEventListener()

◆ applyEnables()

◆ applyRenderStates()

◆ areUniformsColliding()

◆ bindVAS()

◆ bindVAS_Attribs()

◆ bindVAS_Fixed()

◆ bindVAS_Reset()

◆ color()

◆ continuousUpdate()

◆ createFramebufferObject() [1/2]

◆ createFramebufferObject() [2/2]

◆ defaultRenderState()

◆ destroyAllFramebufferObjects()

◆ destroyAllOpenGLResources()

◆ destroyFramebufferObject()

◆ dispatchDestroyEvent()

◆ dispatchFileDroppedEvent()

◆ dispatchInitEvent()

◆ dispatchKeyPressEvent()

◆ dispatchKeyReleaseEvent()

◆ dispatchMouseDownEvent()

◆ dispatchMouseMoveEvent()

◆ dispatchMouseUpEvent()

◆ dispatchMouseWheelEvent()

◆ dispatchResizeEvent()

◆ dispatchUpdateEvent()

◆ dispatchVisibilityEvent()

◆ eraseAllEventListeners()

◆ eventListener() [1/2]

◆ eventListener() [2/2]

◆ eventListenerCount()

◆ eventListeners()

◆ extensions()

◆ framebuffer() [1/2]

◆ framebuffer() [2/2]

◆ fullscreen()

◆ getFocus()

◆ getProcAddress()

◆ glslProgram() [1/2]

◆ glslProgram() [2/2]

◆ hasDoubleBuffer()

◆ height()

◆ hide()

◆ ignoreNextMouseMoveEvent()

◆ initGLContext()

◆ isCleanState()

◆ isExtensionSupported()

◆ isInitialized()

◆ isKeyPressed()

◆ keyboard()

◆ keyPress()

◆ keyRelease()

◆ leftFramebuffer() [1/2]

◆ leftFramebuffer() [2/2]

◆ logOpenGLInfo()

◆ makeCurrent()

◆ mouseVisible()

◆ normal()

◆ openglContextInfo()

◆ position()

◆ quitApplication()

◆ removeEventListener()

◆ resetContextStates()

◆ resetEnables()

◆ resetRenderStates()

◆ rightFramebuffer() [1/2]

◆ rightFramebuffer() [2/2]

◆ secondaryColor()

◆ setContinuousUpdate()
