The UIEventListener class listens to the events emitted by an OpenGLContext. More...

#include <UIEventListener.hpp>

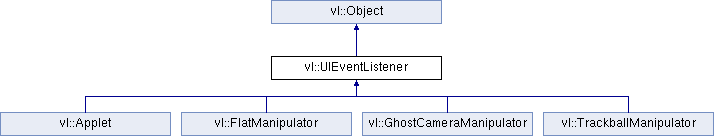

Inheritance diagram for vl::UIEventListener:

Public Member Functions
	UIEventListener ()
	Constructor.
virtual void	initEvent ()=0
	Event generated when the bound OpenGLContext bocomes initialized or when the event listener is bound to an initialized OpenGLContext.
virtual void	destroyEvent ()=0
	Event generated right before the bound OpenGLContext is destroyed.
virtual void	updateEvent ()=0
	Event generated when the bound OpenGLContext does not have any other message to process and OpenGLContext::continuousUpdate() is set to `true` or somebody calls OpenGLContext::update().
virtual void	enableEvent (bool enabled)=0
	Event generated whenever setEnabled() is called.
virtual void	addedListenerEvent (OpenGLContext *)=0
	Event generated whenever a listener is bound to an OpenGLContext context.
virtual void	removedListenerEvent (OpenGLContext *)=0
	Event generated whenever a listener is unbound from an OpenGLContext context.
virtual void	mouseMoveEvent (int x, int y)=0
	Event generated when the mouse moves.
virtual void	mouseUpEvent (EMouseButton button, int x, int y)=0
	Event generated when one of the mouse buttons is released.
virtual void	mouseDownEvent (EMouseButton button, int x, int y)=0
	Event generated when one of the mouse buttons is pressed.
virtual void	mouseWheelEvent (int n)=0
	Event generated when the mouse wheel rotated.
virtual void	keyPressEvent (unsigned short unicode_ch, EKey key)=0
	Event generated when a key is pressed.
virtual void	keyReleaseEvent (unsigned short unicode_ch, EKey key)=0
	Event generated when a key is released.
virtual void	resizeEvent (int x, int y)=0
	Event generated when the bound OpenGLContext is resized.
virtual void	fileDroppedEvent (const std::vector< String > &files)=0
	Event generated when one or more files are dropped on the bound OpenGLContext's area.
virtual void	visibilityEvent (bool visible)=0
	Event generated when the bound OpenGLContext is shown or hidden.
virtual void	setEnabled (bool enabled)
	Enables or disables a UIEventListener.
bool	isEnabled () const
	Returns whether the UIEventListener is currently enabled or not.
OpenGLContext *	openglContext ()
	Returns the OpenGLContext to which this UIEventListener is bound or NULL if no context is bound.
const OpenGLContext *	openglContext () const
	Returns the OpenGLContext to which this UIEventListener is bound or NULL if no context is bound.
Friends
class	OpenGLContext

Detailed Description

The UIEventListener class listens to the events emitted by an OpenGLContext.

Remarks:

Qt amongst others does not distinguish between left and right alt, shift and control keys, which means that you won't receive messages like Key_LeftCtrl, Key_RightCtrl, Key_LeftAlt, Key_RightAlt, Key_LeftShift and Key_RightShift but only the more general Key_Ctrl, Key_Alt and Key_Shift messages.
SDL supports Unicode only partially at the moment, which means that you will receive Unicode codes only for key press events and not for release events.
keyPressed() returns the correct state only for the keys whose messages have been received by the OpenGLContext. This means that for example if a key was pressed when the OpenGLContext did not have the keyboard focus, the function keyPressed() will wrongly report a released state for that key. If a key release event is not sent to the OpenGLContext because generated when the OpenGLContext did not have the keyboard focus, the function keyPressed() will wrongly report a pressed state for that key.

Definition at line 55 of file UIEventListener.hpp.

Constructor & Destructor Documentation

vl::UIEventListener::UIEventListener ( ) [inline]

Constructor.

Definition at line 63 of file UIEventListener.hpp.

References VL_DEBUG_SET_OBJECT_NAME.

Member Function Documentation

virtual void vl::UIEventListener::initEvent ( ) [pure virtual]

Event generated when the bound OpenGLContext bocomes initialized or when the event listener is bound to an initialized OpenGLContext.

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

Referenced by vl::OpenGLContext::addEventListener().

virtual void vl::UIEventListener::destroyEvent ( ) [pure virtual]

Event generated right before the bound OpenGLContext is destroyed.

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

virtual void vl::UIEventListener::updateEvent ( ) [pure virtual]

Event generated when the bound OpenGLContext does not have any other message to process and OpenGLContext::continuousUpdate() is set to true or somebody calls OpenGLContext::update().

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

virtual void vl::UIEventListener::enableEvent ( bool enabled ) [pure virtual]

Event generated whenever setEnabled() is called.

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

virtual void vl::UIEventListener::addedListenerEvent ( OpenGLContext * ) [pure virtual]

Event generated whenever a listener is bound to an OpenGLContext context.

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

Referenced by vl::OpenGLContext::addEventListener().

virtual void vl::UIEventListener::removedListenerEvent ( OpenGLContext * ) [pure virtual]

Event generated whenever a listener is unbound from an OpenGLContext context.

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

Referenced by vl::OpenGLContext::removeEventListener().

virtual void vl::UIEventListener::mouseMoveEvent	(	int	x,
		int	y
	)		`[pure virtual]`

Event generated when the mouse moves.

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

virtual void vl::UIEventListener::mouseUpEvent	(	EMouseButton	button,
		int	x,
		int	y
	)		`[pure virtual]`

Event generated when one of the mouse buttons is released.

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

virtual void vl::UIEventListener::mouseDownEvent	(	EMouseButton	button,
		int	x,
		int	y
	)		`[pure virtual]`

Event generated when one of the mouse buttons is pressed.

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

virtual void vl::UIEventListener::mouseWheelEvent ( int n ) [pure virtual]

Event generated when the mouse wheel rotated.

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

virtual void vl::UIEventListener::keyPressEvent	(	unsigned short	unicode_ch,
		EKey	key
	)		`[pure virtual]`

Event generated when a key is pressed.

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

virtual void vl::UIEventListener::keyReleaseEvent	(	unsigned short	unicode_ch,
		EKey	key
	)		`[pure virtual]`

Event generated when a key is released.

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

virtual void vl::UIEventListener::resizeEvent	(	int	x,
		int	y
	)		`[pure virtual]`

Event generated when the bound OpenGLContext is resized.

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

virtual void vl::UIEventListener::fileDroppedEvent ( const std::vector< String > & files ) [pure virtual]

Event generated when one or more files are dropped on the bound OpenGLContext's area.

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

virtual void vl::UIEventListener::visibilityEvent ( bool visible ) [pure virtual]

Event generated when the bound OpenGLContext is shown or hidden.

Implemented in vl::Applet, vl::FlatManipulator, vl::GhostCameraManipulator, and vl::TrackballManipulator.

virtual void vl::UIEventListener::setEnabled ( bool enabled ) [inline, virtual]

Enables or disables a UIEventListener.

Note:: When an UIEventListener is enabled or disabled its enableEvent(bool enabled) method is called.

Definition at line 116 of file UIEventListener.hpp.

bool vl::UIEventListener::isEnabled ( ) const [inline]

Returns whether the UIEventListener is currently enabled or not.

Definition at line 119 of file UIEventListener.hpp.

OpenGLContext * UIEventListener::openglContext ( )

Returns the OpenGLContext to which this UIEventListener is bound or NULL if no context is bound.

Definition at line 51 of file OpenGLContext.cpp.

Referenced by vl::TrackballManipulator::enableEvent(), vl::GhostCameraManipulator::enableEvent(), vl::FlatManipulator::enableEvent(), vl::Applet::keyReleaseEvent(), vl::TrackballManipulator::mouseDownEvent(), vl::FlatManipulator::mouseDownEvent(), vl::FlatManipulator::mouseInViewport(), vl::TrackballManipulator::mouseMoveEvent(), vl::GhostCameraManipulator::mouseMoveEvent(), vl::FlatManipulator::mouseMoveEvent(), vl::GhostCameraManipulator::updateEvent(), and vl::Applet::updateEvent().

const OpenGLContext* vl::UIEventListener::openglContext ( ) const

Returns the OpenGLContext to which this UIEventListener is bound or NULL if no context is bound.

Friends And Related Function Documentation

friend class OpenGLContext [friend]

Definition at line 59 of file UIEventListener.hpp.

The documentation for this class was generated from the following files:

/home/master/UCL/VisualizationLibrary/src/vlGraphics/UIEventListener.hpp
/home/master/UCL/VisualizationLibrary/src/vlGraphics/OpenGLContext.cpp
