Base class providing all the basic funtionalities of a Renderer. More...

#include <RendererAbstract.hpp>

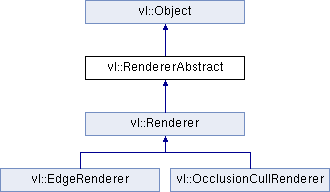

Inheritance diagram for vl::RendererAbstract:

Public Member Functions
	RendererAbstract ()

RendererAbstract &	operator= (const RendererAbstract &other)

virtual const RenderQueue *	render (const RenderQueue in_render_queue, Camera camera, real frame_clock)=0
	Takes as input the render queue to render and returns a possibly filtered render queue for further processing. More...

virtual const FramebufferObject *	framebuffer () const =0
	The Framebuffer on which the rendering is performed. More...

virtual FramebufferObject *	framebuffer ()=0
	The Framebuffer on which the rendering is performed. More...

void	dispatchOnRendererStarted ()
	Dispatches the onRendererStarted() event to the registered RenderEventCallback objects. More...

void	dispatchOnRendererFinished ()
	Dispatches the onRendererFinished() event to the registered RenderEventCallback objects. More...

Collection< RenderEventCallback > *	onFinishedCallbacks ()
	Returns the list of RenderEventCallback objects registered to onRendererFinished() event notification. More...

const Collection< RenderEventCallback > *	onFinishedCallbacks () const
	Returns the list of RenderEventCallback objects registered to onRendererFinished() event notification. More...

Collection< RenderEventCallback > *	onStartedCallbacks ()
	Returns the list of RenderEventCallback objects registered to onRendererStarted() event notification. More...

const Collection< RenderEventCallback > *	onStartedCallbacks () const
	Returns the list of RenderEventCallback objects registered to onRendererStarted() event notification. More...

unsigned long	renderTick () const
	The current render tick number, equivalent to the number or calls made to the render() method. More...

void	incrementRenderTick ()
	Increments the rendering tick count. More...

void	setClearFlags (EClearFlags clear_flags)
	The clear flags used to clear the viewport. More...

EClearFlags	clearFlags () const
	The clear flags used to clear the viewport. More...

void	setEnableMask (unsigned int mask)
	Enable mask used to enable/disable the rendering of matching Actors. More...

unsigned int	enableMask () const
	Enable mask used to enable/disable the rendering of matching Actors. More...

void	setFrameClock (real t)
	The current rendring frame time. More...

real	frameClock () const
	The current rendring frame time. More...

Public Member Functions inherited from vl::Object
	Object ()
	Constructor. More...

	Object (const Object &other)
	Copy constructor: copies the name, ref count mutex and user data. More...

Object &	operator= (const Object &other)
	Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string &	objectName () const
	The name of the object, by default set to the object's class name. More...

void	setObjectName (const char *name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setObjectName (const std::string &name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setRefCountMutex (IMutex *mutex)
	The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutex *	refCountMutex ()
	The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutex *	refCountMutex () const
	The mutex used to protect the reference counting of an Object across multiple threads. More...

int	referenceCount () const
	Returns the number of references of an object. More...

void	incReference () const
	Increments the reference count of an object. More...

void	decReference ()
	Decrements the reference count of an object and deletes it if both automaticDelete() is `true` the count reaches 0. More...

void	setAutomaticDelete (bool autodel_on)
	If set to true the Object is deleted when its reference count reaches 0. More...

bool	automaticDelete () const
	If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T *	as ()
	Casts an Object to the specified class. More...

template<class T >
const T *	as () const
	Casts an Object to the specified class. More...

Protected Attributes
ref< Collection< RenderEventCallback > >	mOnFinishedCallbacks

ref< Collection< RenderEventCallback > >	mOnStartedCallbacks

unsigned long	mRenderTick

unsigned int	mEnableMask

EClearFlags	mClearFlags

real	mFrameClock

Protected Attributes inherited from vl::Object
std::string	mObjectName

IMutex *	mRefCountMutex

int	mReferenceCount

bool	mAutomaticDelete

Additional Inherited Members
Protected Member Functions inherited from vl::Object
virtual	~Object ()

Detailed Description

Base class providing all the basic funtionalities of a Renderer.

Definition at line 51 of file RendererAbstract.hpp.

Constructor & Destructor Documentation

◆ RendererAbstract()

vl::RendererAbstract::RendererAbstract ( )

inline

Definition at line 56 of file RendererAbstract.hpp.

References vl::CF_CLEAR_COLOR_DEPTH.

Member Function Documentation

◆ clearFlags()

EClearFlags vl::RendererAbstract::clearFlags ( ) const

inline

The clear flags used to clear the viewport.

Definition at line 138 of file RendererAbstract.hpp.

Referenced by vl::Renderer::render(), and vl::EdgeRenderer::render().

◆ dispatchOnRendererFinished()

void vl::RendererAbstract::dispatchOnRendererFinished ( )

inline

Dispatches the onRendererFinished() event to the registered RenderEventCallback objects.

Definition at line 103 of file RendererAbstract.hpp.

References vl::Collection< T >::eraseAt(), and vl::Collection< T >::size().

Referenced by vl::OcclusionCullRenderer::render(), vl::Renderer::render(), and vl::EdgeRenderer::render().

◆ dispatchOnRendererStarted()

void vl::RendererAbstract::dispatchOnRendererStarted ( )

inline

Dispatches the onRendererStarted() event to the registered RenderEventCallback objects.

Definition at line 89 of file RendererAbstract.hpp.

References vl::Collection< T >::eraseAt(), and vl::Collection< T >::size().

Referenced by vl::OcclusionCullRenderer::render(), vl::Renderer::render(), and vl::EdgeRenderer::render().

◆ enableMask()

unsigned int vl::RendererAbstract::enableMask ( ) const

inline

Enable mask used to enable/disable the rendering of matching Actors.

Definition at line 144 of file RendererAbstract.hpp.

Referenced by vl::OcclusionCullRenderer::render(), vl::Renderer::render(), vl::EdgeRenderer::render(), and vl::OcclusionCullRenderer::render_pass2().

◆ framebuffer() [1/2]

virtual const FramebufferObject* vl::RendererAbstract::framebuffer ( ) const

pure virtual

The Framebuffer on which the rendering is performed.

Implemented in vl::Renderer, and vl::OcclusionCullRenderer.

Referenced by vl::EdgeRenderer::render().

◆ framebuffer() [2/2]

virtual FramebufferObject* vl::RendererAbstract::framebuffer ( )

pure virtual

The Framebuffer on which the rendering is performed.

Implemented in vl::Renderer, and vl::OcclusionCullRenderer.

◆ frameClock()

real vl::RendererAbstract::frameClock ( ) const

inline

The current rendring frame time.

vl::Renderer passes this value to ActorEventCallback::onActorRenderStarted()

Definition at line 150 of file RendererAbstract.hpp.

◆ incrementRenderTick()

void vl::RendererAbstract::incrementRenderTick ( )

inline

Increments the rendering tick count.

Definition at line 132 of file RendererAbstract.hpp.

Referenced by vl::OcclusionCullRenderer::render(), and vl::EdgeRenderer::render().

◆ onFinishedCallbacks() [1/2]

Collection<RenderEventCallback>* vl::RendererAbstract::onFinishedCallbacks ( )

inline

Returns the list of RenderEventCallback objects registered to onRendererFinished() event notification.

Definition at line 117 of file RendererAbstract.hpp.

◆ onFinishedCallbacks() [2/2]

const Collection<RenderEventCallback>* vl::RendererAbstract::onFinishedCallbacks ( ) const

inline

Returns the list of RenderEventCallback objects registered to onRendererFinished() event notification.

Definition at line 120 of file RendererAbstract.hpp.

◆ onStartedCallbacks() [1/2]

Collection<RenderEventCallback>* vl::RendererAbstract::onStartedCallbacks ( )

inline

Returns the list of RenderEventCallback objects registered to onRendererStarted() event notification.

Definition at line 123 of file RendererAbstract.hpp.

◆ onStartedCallbacks() [2/2]

const Collection<RenderEventCallback>* vl::RendererAbstract::onStartedCallbacks ( ) const

inline

Returns the list of RenderEventCallback objects registered to onRendererStarted() event notification.

Definition at line 126 of file RendererAbstract.hpp.

◆ operator=()

RendererAbstract& vl::RendererAbstract::operator= ( const RendererAbstract & other )

inline

Definition at line 67 of file RendererAbstract.hpp.

References mClearFlags, mEnableMask, mOnFinishedCallbacks, and mOnStartedCallbacks.

◆ render()

virtual const RenderQueue* vl::RendererAbstract::render	(	const RenderQueue *	in_render_queue,
		Camera *	camera,
		real	frame_clock
	)

pure virtual

Takes as input the render queue to render and returns a possibly filtered render queue for further processing.

Renderer's implementation of this function always returns in_render_queue.

Implemented in vl::EdgeRenderer, vl::Renderer, and vl::OcclusionCullRenderer.

◆ renderTick()

unsigned long vl::RendererAbstract::renderTick ( ) const

inline

The current render tick number, equivalent to the number or calls made to the render() method.

Definition at line 129 of file RendererAbstract.hpp.

◆ setClearFlags()

void vl::RendererAbstract::setClearFlags ( EClearFlags clear_flags )

inline

The clear flags used to clear the viewport.

Definition at line 135 of file RendererAbstract.hpp.

◆ setEnableMask()

void vl::RendererAbstract::setEnableMask ( unsigned int mask )

inline

Enable mask used to enable/disable the rendering of matching Actors.

Definition at line 141 of file RendererAbstract.hpp.

◆ setFrameClock()

void vl::RendererAbstract::setFrameClock ( real t )

inline

The current rendring frame time.

vl::Renderer passes this value to ActorEventCallback::onActorRenderStarted()

Definition at line 147 of file RendererAbstract.hpp.

Member Data Documentation

◆ mClearFlags

EClearFlags vl::RendererAbstract::mClearFlags

protected

Definition at line 157 of file RendererAbstract.hpp.

Referenced by operator=().

◆ mEnableMask

unsigned int vl::RendererAbstract::mEnableMask

protected

Definition at line 156 of file RendererAbstract.hpp.

Referenced by operator=().

◆ mFrameClock

real vl::RendererAbstract::mFrameClock

protected

Definition at line 158 of file RendererAbstract.hpp.

◆ mOnFinishedCallbacks

ref< Collection<RenderEventCallback> > vl::RendererAbstract::mOnFinishedCallbacks

protected

Definition at line 153 of file RendererAbstract.hpp.

Referenced by operator=().

◆ mOnStartedCallbacks

ref< Collection<RenderEventCallback> > vl::RendererAbstract::mOnStartedCallbacks

protected

Definition at line 154 of file RendererAbstract.hpp.

Referenced by operator=().

◆ mRenderTick

unsigned long vl::RendererAbstract::mRenderTick

protected

Definition at line 155 of file RendererAbstract.hpp.

Referenced by vl::Renderer::render().

The documentation for this class was generated from the following file:

C:/git/VL/src/vlGraphics/RendererAbstract.hpp
