The Renderer class executes the actual rendering on the given RenderQueue. More...

#include <Renderer.hpp>

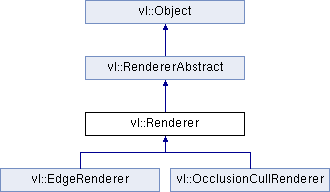

Inheritance diagram for vl::Renderer:

Public Member Functions
	Renderer ()

virtual	~Renderer ()

virtual const RenderQueue *	render (const RenderQueue in_render_queue, Camera camera, real frame_clock)
	Takes as input the render queue to render and returns a possibly filtered render queue for further processing. More...

const RenderQueue *	renderRaw (const RenderQueue in_render_queue, Camera camera, real frame_clock)
	Used by render() to loop through the render queue. More...

void	setProjViewTransfCallback (ProjViewTransfCallback *callback)

const ProjViewTransfCallback *	projViewTransfCallback () const

ProjViewTransfCallback *	projViewTransfCallback ()

const std::map< unsigned int, ref< Shader > > &	shaderOverrideMask () const
	A bitmask/Shader map used to everride the Shader of those Actors whose enable mask satisfy the following condition: (Actors::enableMask() & bitmask) != 0. More...

std::map< unsigned int, ref< Shader > > &	shaderOverrideMask ()
	A bitmask/Shader map used to everride the Shader of those Actors whose enable mask satisfy the following condition: (Actors::enableMask() & bitmask) != 0. More...

std::vector< RenderStateSlot > &	overriddenDefaultRenderStates ()
	Render states that will be used as default by the opengl context by this renderer. More...

const std::vector< RenderStateSlot > &	overriddenDefaultRenderStates () const
	Render states that will be used as default by the opengl context by this renderer. More...

bool	isEnabled (unsigned int mask)

bool	isEnabled (const Actor *actor)

void	setFramebuffer (FramebufferObject *framebuffer)
	The Framebuffer on which the rendering is performed. More...

const FramebufferObject *	framebuffer () const
	The Framebuffer on which the rendering is performed. More...

FramebufferObject *	framebuffer ()
	The Framebuffer on which the rendering is performed. More...

Public Member Functions inherited from vl::RendererAbstract
	RendererAbstract ()

RendererAbstract &	operator= (const RendererAbstract &other)

void	dispatchOnRendererStarted ()
	Dispatches the onRendererStarted() event to the registered RenderEventCallback objects. More...

void	dispatchOnRendererFinished ()
	Dispatches the onRendererFinished() event to the registered RenderEventCallback objects. More...

Collection< RenderEventCallback > *	onFinishedCallbacks ()
	Returns the list of RenderEventCallback objects registered to onRendererFinished() event notification. More...

const Collection< RenderEventCallback > *	onFinishedCallbacks () const
	Returns the list of RenderEventCallback objects registered to onRendererFinished() event notification. More...

Collection< RenderEventCallback > *	onStartedCallbacks ()
	Returns the list of RenderEventCallback objects registered to onRendererStarted() event notification. More...

const Collection< RenderEventCallback > *	onStartedCallbacks () const
	Returns the list of RenderEventCallback objects registered to onRendererStarted() event notification. More...

unsigned long	renderTick () const
	The current render tick number, equivalent to the number or calls made to the render() method. More...

void	incrementRenderTick ()
	Increments the rendering tick count. More...

void	setClearFlags (EClearFlags clear_flags)
	The clear flags used to clear the viewport. More...

EClearFlags	clearFlags () const
	The clear flags used to clear the viewport. More...

void	setEnableMask (unsigned int mask)
	Enable mask used to enable/disable the rendering of matching Actors. More...

unsigned int	enableMask () const
	Enable mask used to enable/disable the rendering of matching Actors. More...

void	setFrameClock (real t)
	The current rendring frame time. More...

real	frameClock () const
	The current rendring frame time. More...

Public Member Functions inherited from vl::Object
	Object ()
	Constructor. More...

	Object (const Object &other)
	Copy constructor: copies the name, ref count mutex and user data. More...

Object &	operator= (const Object &other)
	Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string &	objectName () const
	The name of the object, by default set to the object's class name. More...

void	setObjectName (const char *name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setObjectName (const std::string &name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setRefCountMutex (IMutex *mutex)
	The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutex *	refCountMutex ()
	The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutex *	refCountMutex () const
	The mutex used to protect the reference counting of an Object across multiple threads. More...

int	referenceCount () const
	Returns the number of references of an object. More...

void	incReference () const
	Increments the reference count of an object. More...

void	decReference ()
	Decrements the reference count of an object and deletes it if both automaticDelete() is `true` the count reaches 0. More...

void	setAutomaticDelete (bool autodel_on)
	If set to true the Object is deleted when its reference count reaches 0. More...

bool	automaticDelete () const
	If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T *	as ()
	Casts an Object to the specified class. More...

template<class T >
const T *	as () const
	Casts an Object to the specified class. More...

Protected Attributes
ref< FramebufferObject >	mFramebuffer

vl::ref< EnableSet >	mDummyEnables

vl::ref< RenderStateSet >	mDummyStateSet

std::map< unsigned int, ref< Shader > >	mShaderOverrideMask

std::vector< RenderStateSlot >	mOverriddenDefaultRenderStates

ref< ProjViewTransfCallback >	mProjViewTransfCallback

Protected Attributes inherited from vl::RendererAbstract
ref< Collection< RenderEventCallback > >	mOnFinishedCallbacks

ref< Collection< RenderEventCallback > >	mOnStartedCallbacks

unsigned long	mRenderTick

unsigned int	mEnableMask

EClearFlags	mClearFlags

real	mFrameClock

Protected Attributes inherited from vl::Object
std::string	mObjectName

IMutex *	mRefCountMutex

int	mReferenceCount

bool	mAutomaticDelete

Additional Inherited Members
Protected Member Functions inherited from vl::Object
virtual	~Object ()

Detailed Description

The Renderer class executes the actual rendering on the given RenderQueue.

See also: Rendering

Definition at line 49 of file Renderer.hpp.

Constructor & Destructor Documentation

◆ Renderer()

Renderer::Renderer ( )

Definition at line 46 of file Renderer.cpp.

References mDummyEnables, mDummyStateSet, mProjViewTransfCallback, and NULL.

◆ ~Renderer()

virtual vl::Renderer::~Renderer ( )

inlinevirtual

Definition at line 56 of file Renderer.hpp.

Member Function Documentation

◆ framebuffer() [1/2]

const FramebufferObject* vl::Renderer::framebuffer ( ) const

inlinevirtual

The Framebuffer on which the rendering is performed.

Implements vl::RendererAbstract.

Definition at line 100 of file Renderer.hpp.

Referenced by render(), vl::EdgeRenderer::render(), vl::EdgeRenderer::renderLines(), renderRaw(), vl::EdgeRenderer::renderSolids(), and vl::Applet::resizeEvent().

◆ framebuffer() [2/2]

FramebufferObject* vl::Renderer::framebuffer ( )

inlinevirtual

The Framebuffer on which the rendering is performed.

Implements vl::RendererAbstract.

Definition at line 103 of file Renderer.hpp.

◆ isEnabled() [1/2]

bool vl::Renderer::isEnabled ( unsigned int mask )

inline

Definition at line 93 of file Renderer.hpp.

Referenced by vl::EdgeRenderer::render(), and renderRaw().

◆ isEnabled() [2/2]

bool vl::Renderer::isEnabled ( const Actor * actor )

inline

Definition at line 94 of file Renderer.hpp.

References vl::Actor::enableMask(), and vl::Actor::isEnabled().

◆ overriddenDefaultRenderStates() [1/2]

std::vector<RenderStateSlot>& vl::Renderer::overriddenDefaultRenderStates ( )

inline

Render states that will be used as default by the opengl context by this renderer.

Useful for example to setup the default left/right color mask for anaglyph stereo rendering.

Definition at line 87 of file Renderer.hpp.

Referenced by render().

◆ overriddenDefaultRenderStates() [2/2]

const std::vector<RenderStateSlot>& vl::Renderer::overriddenDefaultRenderStates ( ) const

inline

Render states that will be used as default by the opengl context by this renderer.

Useful for example to setup the default left/right color mask for anaglyph stereo rendering.

Definition at line 91 of file Renderer.hpp.

◆ projViewTransfCallback() [1/2]

const ProjViewTransfCallback* vl::Renderer::projViewTransfCallback ( ) const

inline

Definition at line 69 of file Renderer.hpp.

Referenced by vl::OcclusionCullRenderer::render_pass2(), and renderRaw().

◆ projViewTransfCallback() [2/2]

ProjViewTransfCallback* vl::Renderer::projViewTransfCallback ( )

inline

Definition at line 71 of file Renderer.hpp.

◆ render()

const RenderQueue * Renderer::render	(	const RenderQueue *	in_render_queue,
		Camera *	camera,
		real	frame_clock
	)

virtual

Takes as input the render queue to render and returns a possibly filtered render queue for further processing.

Renderer's implementation of this function always returns in_render_queue.

Implements vl::RendererAbstract.

Reimplemented in vl::EdgeRenderer, and vl::OcclusionCullRenderer.

Definition at line 365 of file Renderer.cpp.

References vl::Viewport::activate(), vl::FramebufferObject::activate(), vl::RendererAbstract::clearFlags(), vl::OpenGLContext::defaultRenderState(), vl::RendererAbstract::dispatchOnRendererFinished(), vl::RendererAbstract::dispatchOnRendererStarted(), vl::RendererAbstract::enableMask(), framebuffer(), vl::globalSettings(), vl::OpenGLContext::isCleanState(), vl::RendererAbstract::mRenderTick, vl::FramebufferObject::openglContext(), overriddenDefaultRenderStates(), renderRaw(), vl::Viewport::setClearFlags(), vl::OpenGLContext::setDefaultRenderState(), vl::Camera::viewport(), VL_CHECK, and VL_CHECK_OGL.

◆ renderRaw()

const RenderQueue * Renderer::renderRaw	(	const RenderQueue *	in_render_queue,
		Camera *	camera,
		real	frame_clock
	)

Used by render() to loop through the render queue.

Does not activate the framebuffer, does not activate the viewport, does not clear the viewport, does not setup the override states, does not issue the OnRendererStarted/Finished callbacks.

Definition at line 88 of file Renderer.cpp.

References vl::OpenGLContext::applyEnables(), vl::OpenGLContext::applyRenderStates(), vl::GLSLProgram::applyUniformSet(), vl::OpenGLContext::areUniformsColliding(), vl::RenderQueue::at(), vl::OpenGLContext::bindVAS(), vl::Log::bug(), vl::Actor::dispatchOnActorRenderStarted(), vl::Scissor::enable(), vl::Actor::enableMask(), vl::Log::error(), framebuffer(), vl::Shader::getEnableSet(), vl::Shader::getRenderStateSet(), vl::Actor::getUniformSet(), vl::GLSLProgram::getUniformSet(), vl::Shader::getUniformSet(), vl::RenderStateSet::glslProgram(), vl::Shader::glslProgram(), vl::GLSLProgram::handle(), vl::Has_Fixed_Function_Pipeline, vl::Viewport::height(), vl::GLSLProgram::infoLog(), isEnabled(), vl::GLSLProgram::linked(), vl::RenderToken::mActor, mDummyEnables, mDummyStateSet, vl::RenderToken::mNextPass, vl::RenderToken::mRenderable, vl::RenderToken::mShader, mShaderOverrideMask, NULL, vl::Object::objectName(), vl::FramebufferObject::openglContext(), projViewTransfCallback(), vl::Renderable::render(), vl::Actor::scissor(), vl::Shader::scissor(), vl::RenderQueue::size(), vl::Actor::transform(), vl::UniformSet::uniforms(), vl::ProjViewTransfCallback::updateMatrices(), vl::GLSLProgram::validateProgram(), vl::Camera::viewport(), VL_CHECK, VL_CHECK_OGL, VL_TRAP, vl::Viewport::width(), vl::Viewport::x(), and vl::Viewport::y().

Referenced by render().

◆ setFramebuffer()

void vl::Renderer::setFramebuffer ( FramebufferObject * framebuffer )

inline

The Framebuffer on which the rendering is performed.

Definition at line 97 of file Renderer.hpp.

◆ setProjViewTransfCallback()

void vl::Renderer::setProjViewTransfCallback ( ProjViewTransfCallback * callback )

inline

Definition at line 67 of file Renderer.hpp.

◆ shaderOverrideMask() [1/2]

const std::map<unsigned int, ref<Shader> >& vl::Renderer::shaderOverrideMask ( ) const

inline

A bitmask/Shader map used to everride the Shader of those Actors whose enable mask satisfy the following condition: (Actors::enableMask() & bitmask) != 0.

Useful when you want to override the Shader of a whole set of Actors. If multiple mask/shader pairs match an Actor's enable mask then the shader with the corresponding lowest mask will be used. See also vl::Actor::enableMask() and vl::Rendering::effectOverrideMask().

Definition at line 77 of file Renderer.hpp.

◆ shaderOverrideMask() [2/2]

std::map<unsigned int, ref<Shader> >& vl::Renderer::shaderOverrideMask ( )

inline

A bitmask/Shader map used to everride the Shader of those Actors whose enable mask satisfy the following condition: (Actors::enableMask() & bitmask) != 0.

Useful when you want to override the Shader of a whole set of Actors. If multiple mask/shader pairs match an Actor's enable mask then the shader with the corresponding lowest mask will be used. See also vl::Actor::enableMask() and vl::Rendering::effectOverrideMask().

Definition at line 83 of file Renderer.hpp.

Member Data Documentation

◆ mDummyEnables

vl::ref<EnableSet> vl::Renderer::mDummyEnables

protected

Definition at line 109 of file Renderer.hpp.

Referenced by vl::OcclusionCullRenderer::render_pass2(), Renderer(), and renderRaw().

◆ mDummyStateSet

vl::ref<RenderStateSet> vl::Renderer::mDummyStateSet

protected

Definition at line 110 of file Renderer.hpp.

Referenced by vl::OcclusionCullRenderer::render_pass2(), Renderer(), and renderRaw().

◆ mFramebuffer

ref<FramebufferObject> vl::Renderer::mFramebuffer

protected

Definition at line 106 of file Renderer.hpp.

◆ mOverriddenDefaultRenderStates

std::vector<RenderStateSlot> vl::Renderer::mOverriddenDefaultRenderStates

protected

Definition at line 114 of file Renderer.hpp.

◆ mProjViewTransfCallback

ref<ProjViewTransfCallback> vl::Renderer::mProjViewTransfCallback

protected

Definition at line 116 of file Renderer.hpp.

Referenced by Renderer().

◆ mShaderOverrideMask

std::map<unsigned int, ref<Shader> > vl::Renderer::mShaderOverrideMask

protected

Definition at line 112 of file Renderer.hpp.

Referenced by renderRaw().

The documentation for this class was generated from the following files:

C:/git/VL/src/vlGraphics/Renderer.hpp
C:/git/VL/src/vlGraphics/Renderer.cpp

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Renderer()

◆ ~Renderer()

Member Function Documentation

◆ framebuffer() [1/2]

◆ framebuffer() [2/2]

◆ isEnabled() [1/2]

◆ isEnabled() [2/2]

◆ overriddenDefaultRenderStates() [1/2]

◆ overriddenDefaultRenderStates() [2/2]

◆ projViewTransfCallback() [1/2]

◆ projViewTransfCallback() [2/2]

◆ render()

◆ renderRaw()

◆ setFramebuffer()

◆ setProjViewTransfCallback()

◆ shaderOverrideMask() [1/2]

◆ shaderOverrideMask() [2/2]

Member Data Documentation

◆ mDummyEnables

◆ mDummyStateSet

◆ mFramebuffer

◆ mOverriddenDefaultRenderStates

◆ mProjViewTransfCallback

◆ mShaderOverrideMask
