Base class for most of the OpenGL render state wrapper classes. More...

#include <RenderState.hpp>

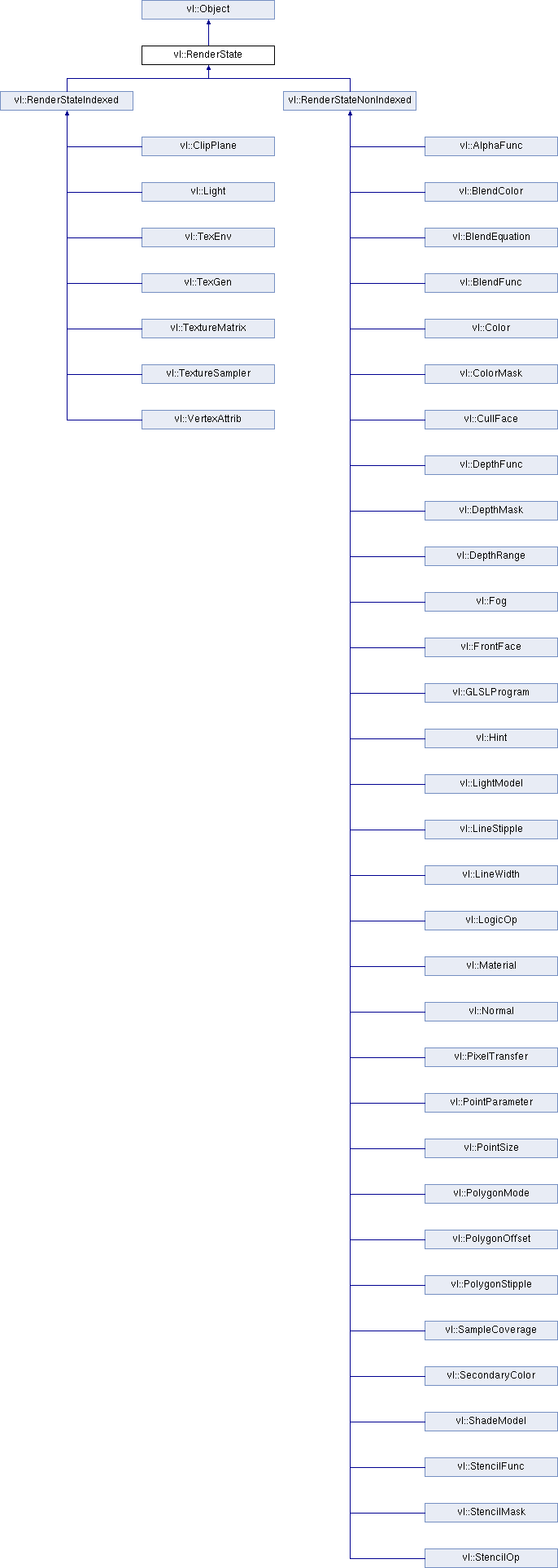

Inheritance diagram for vl::RenderState:

Public Member Functions
	RenderState ()

virtual ERenderState	type () const

virtual void	apply (int index, const Camera camera, OpenGLContext ctx) const =0
	The parameter cameara is NULL if we are disabling the state, non-NULL if we are enabling it. More...

virtual ref< RenderState >	clone () const =0

Public Member Functions inherited from vl::Object
	Object ()
	Constructor. More...

	Object (const Object &other)
	Copy constructor: copies the name, ref count mutex and user data. More...

Object &	operator= (const Object &other)
	Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string &	objectName () const
	The name of the object, by default set to the object's class name. More...

void	setObjectName (const char *name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setObjectName (const std::string &name)
	The name of the object, by default set to the object's class name in debug builds. More...

void	setRefCountMutex (IMutex *mutex)
	The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutex *	refCountMutex ()
	The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutex *	refCountMutex () const
	The mutex used to protect the reference counting of an Object across multiple threads. More...

int	referenceCount () const
	Returns the number of references of an object. More...

void	incReference () const
	Increments the reference count of an object. More...

void	decReference ()
	Decrements the reference count of an object and deletes it if both automaticDelete() is `true` the count reaches 0. More...

void	setAutomaticDelete (bool autodel_on)
	If set to true the Object is deleted when its reference count reaches 0. More...

bool	automaticDelete () const
	If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T *	as ()
	Casts an Object to the specified class. More...

template<class T >
const T *	as () const
	Casts an Object to the specified class. More...

Additional Inherited Members
Protected Member Functions inherited from vl::Object
virtual	~Object ()

Protected Attributes inherited from vl::Object
std::string	mObjectName

IMutex *	mRefCountMutex

int	mReferenceCount

bool	mAutomaticDelete

Detailed Description

Base class for most of the OpenGL render state wrapper classes.

See also: Shader, Effect, Actor

Definition at line 50 of file RenderState.hpp.

Constructor & Destructor Documentation

◆ RenderState()

vl::RenderState::RenderState ( )

inline

Definition at line 55 of file RenderState.hpp.

Member Function Documentation

◆ apply()

virtual void vl::RenderState::apply	(	int	index,
		const Camera *	camera,
		OpenGLContext *	ctx
	)		const

pure virtual

The parameter cameara is NULL if we are disabling the state, non-NULL if we are enabling it.

Implemented in vl::TextureSampler, vl::TexGen, vl::TexEnv, vl::TextureMatrix, vl::ColorMask, vl::BlendColor, vl::StencilMask, vl::StencilOp, vl::StencilFunc, vl::PointParameter, vl::LineStipple, vl::PolygonStipple, vl::PointSize, vl::LineWidth, vl::DepthRange, vl::LogicOp, vl::PolygonOffset, vl::Fog, vl::LightModel, vl::Material, vl::AlphaFunc, vl::SampleCoverage, vl::BlendEquation, vl::BlendFunc, vl::ShadeModel, vl::PolygonMode, vl::DepthMask, vl::DepthFunc, vl::FrontFace, vl::CullFace, vl::Hint, vl::GLSLProgram, vl::PixelTransfer, vl::Normal, vl::SecondaryColor, vl::Color, vl::VertexAttrib, vl::ClipPlane, and vl::Light.

◆ clone()

virtual ref<RenderState> vl::RenderState::clone ( ) const

pure virtual

◆ type()

virtual ERenderState vl::RenderState::type ( ) const

inlinevirtual

Reimplemented in vl::TextureSampler, vl::TexGen, vl::TexEnv, vl::TextureMatrix, vl::ColorMask, vl::BlendColor, vl::StencilMask, vl::StencilOp, vl::StencilFunc, vl::PointParameter, vl::LineStipple, vl::PolygonStipple, vl::PointSize, vl::LineWidth, vl::DepthRange, vl::LogicOp, vl::PolygonOffset, vl::Fog, vl::LightModel, vl::Material, vl::AlphaFunc, vl::SampleCoverage, vl::BlendEquation, vl::BlendFunc, vl::ShadeModel, vl::PolygonMode, vl::DepthMask, vl::DepthFunc, vl::FrontFace, vl::CullFace, vl::Hint, vl::GLSLProgram, vl::PixelTransfer, vl::Normal, vl::SecondaryColor, vl::Color, vl::VertexAttrib, vl::ClipPlane, and vl::Light.

Definition at line 59 of file RenderState.hpp.

References vl::RS_NONE.

Referenced by vl::ShaderNode::eraseRenderState(), vl::Shader::eraseRenderState(), vl::RenderStateSet::setRenderState(), and vl::ShaderNode::setRenderState().

The documentation for this class was generated from the following file:

C:/git/VL/src/vlGraphics/RenderState.hpp
